Description of Control Panel Buttons For
Basic Electronic Control
Before you begin, thoroughly familiarize yourself with
the control panel and remote and all its functions. The
unit can be controlled by the touch pad alone or with the
remote.
ON/OFF BUTTON
Pressing the ON/OFF button will turn the unit on or off.
room temperature will be displayed.
UP/DOWN ARROW BUTTONS
(Temperature and Time)
Press or hold either UP (^) or DOWN (v) button until the
desired temperature is seen on display. This temperature
will be automatically maintained anywhere between
60°F (16°C) and 90°F (32°C) for cooling mode. The
Temperature will be automatically maintained anywhere
between 55°F (13°C) and 80°F (27°C) for heating mode
for models with the heating capability.
For setting time, use the UP (^) or DOWN (v) button to
increase or decrease the time desired.
FAN SPEED BUTTON
Press the Fan Faster button (^) will increase the fan
speed from Low (LO), to Medium (ME), to High (HI).
The digital display will indicate your chosen speed.
Press the Fan Slower button (v) will decrease the fan
MODE BUTTON
Press the MODE button to chose from FAN ONLY, ENERGY
SAVER and COOL. The LED light will illuminate next to
the MODE choosen.
FAN ONLY Mode:
Use this function only when cooling is not desired, such
as for room air circulation. All Fan speeds except AUTO
are available to be choosen. During this function, the
display will show the actual current temperature, not the
set temperature as in the cooling mode.
ENERGY SAVER Mode:
In this mode, the fan will continue to run for 3 minutes
after the compressor shuts off. The fan then cycles on
for 2 minutes at 10 minute intervals until the room
temperature is above the set temperature, at which time
the unit cooling system starts again.
COOL Mode:
In this mode all fan speeds can be choosen. The LED
indicator will illuminate next to the fan speed as it is
selected. Press or hold either UP (^) OR DOWN (v)
button until the desired temperature is seen on display.
This temperature will be automatically maintained
anywhere between 60°F (16°C) and 90°F (32°C) for
cooling mode.
delayed start if the unit is turned off and on quickly.
This prevents overheating of the compressor and
possible circuit breaker tripping. The fan will continue
to run during this time.

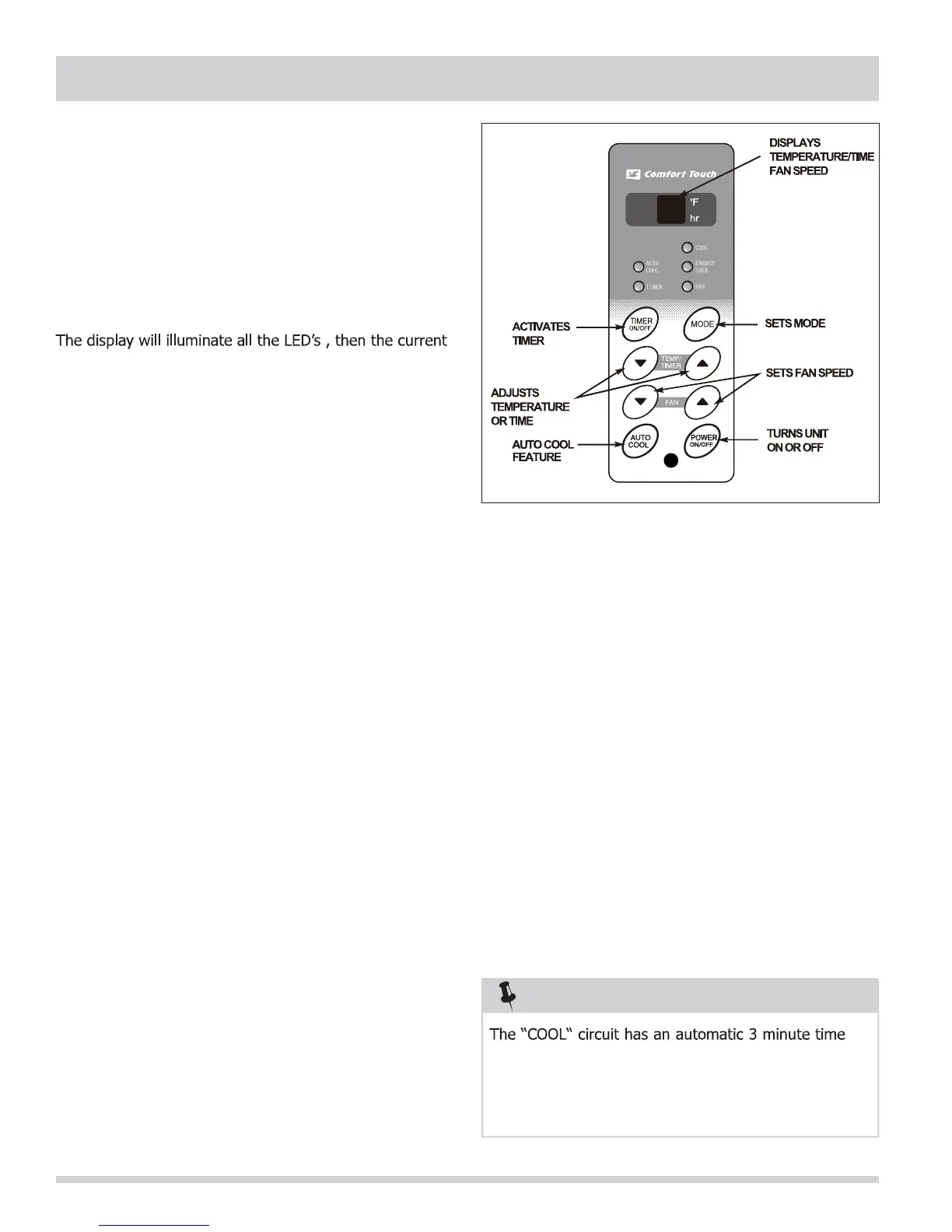

ÒÑÌÛ
Figure
2
-2.
speed from High (HI), to Medium (ME), Low (LO).
The digital display will indicate your chosen speed.
After 5 seconds the display will revert back to the set
temperature.
