21S-FX10F/10S/10N/10U
5 – 3

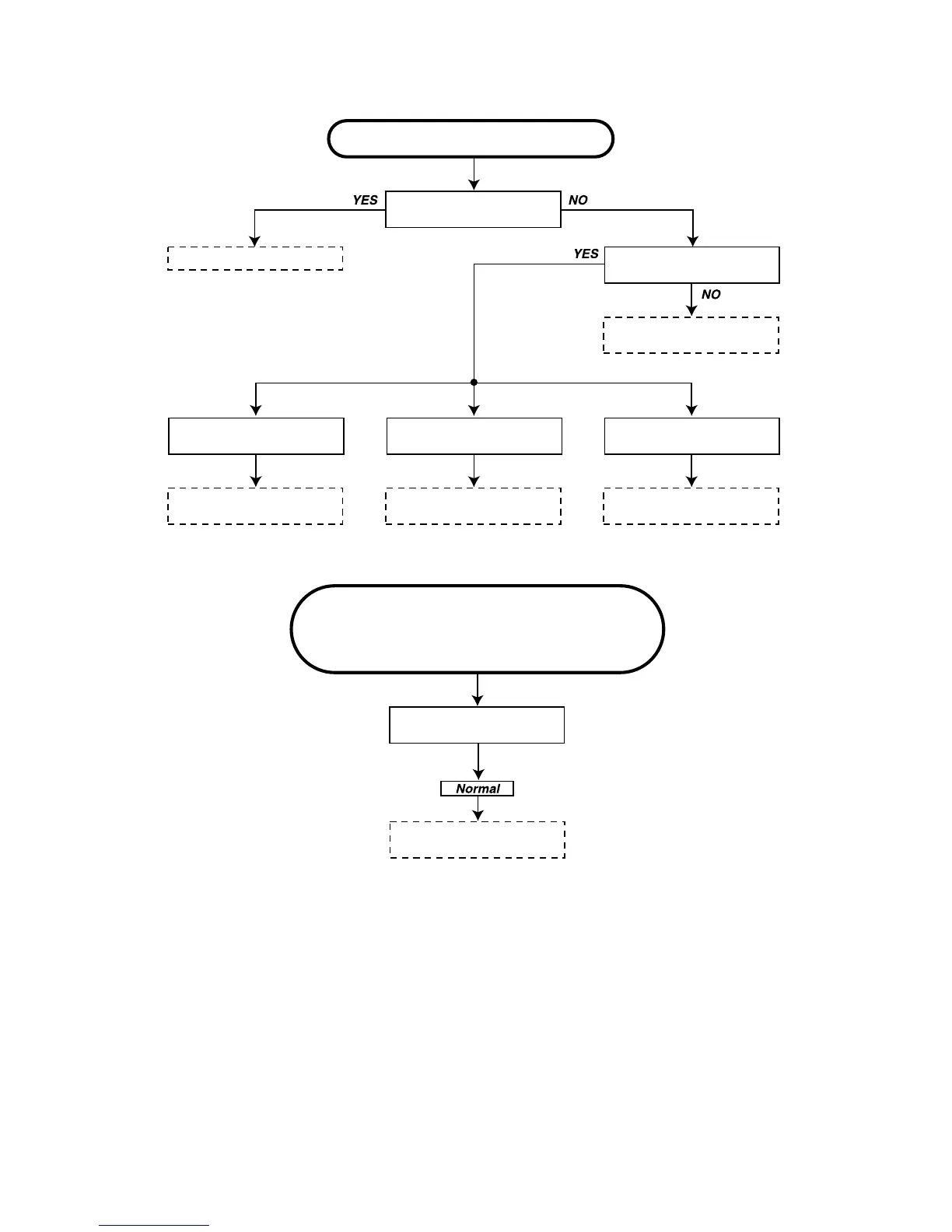

TROUBLE SHOOTING FLOWCHART (Continued)
NO SPECIFIC COLOUR
Is some colour produced in
B/W broadcast reception ?
Is the white balance properly
adjusted ?
Re-adjust the white balance.
The picture colour is yellow.The picture colour is magenta.The picture colour is cyan.
Check IC851 pin (9) and its
adjacent circuits.
Check IC851 pin (8) and its
adjacent circuits.
Check IC851 pin (7) and its
adjacent circuits.
Check IC1001.
Check IC1001 and bias
control circuit.
NO COLOUR
“PAL / SECAM / NTSC”
(NO COLOUR SYNCHRONIZATION)
Check X801 (24.576MHz)
To Next Page
