27R-FS1
CABINET PARTS

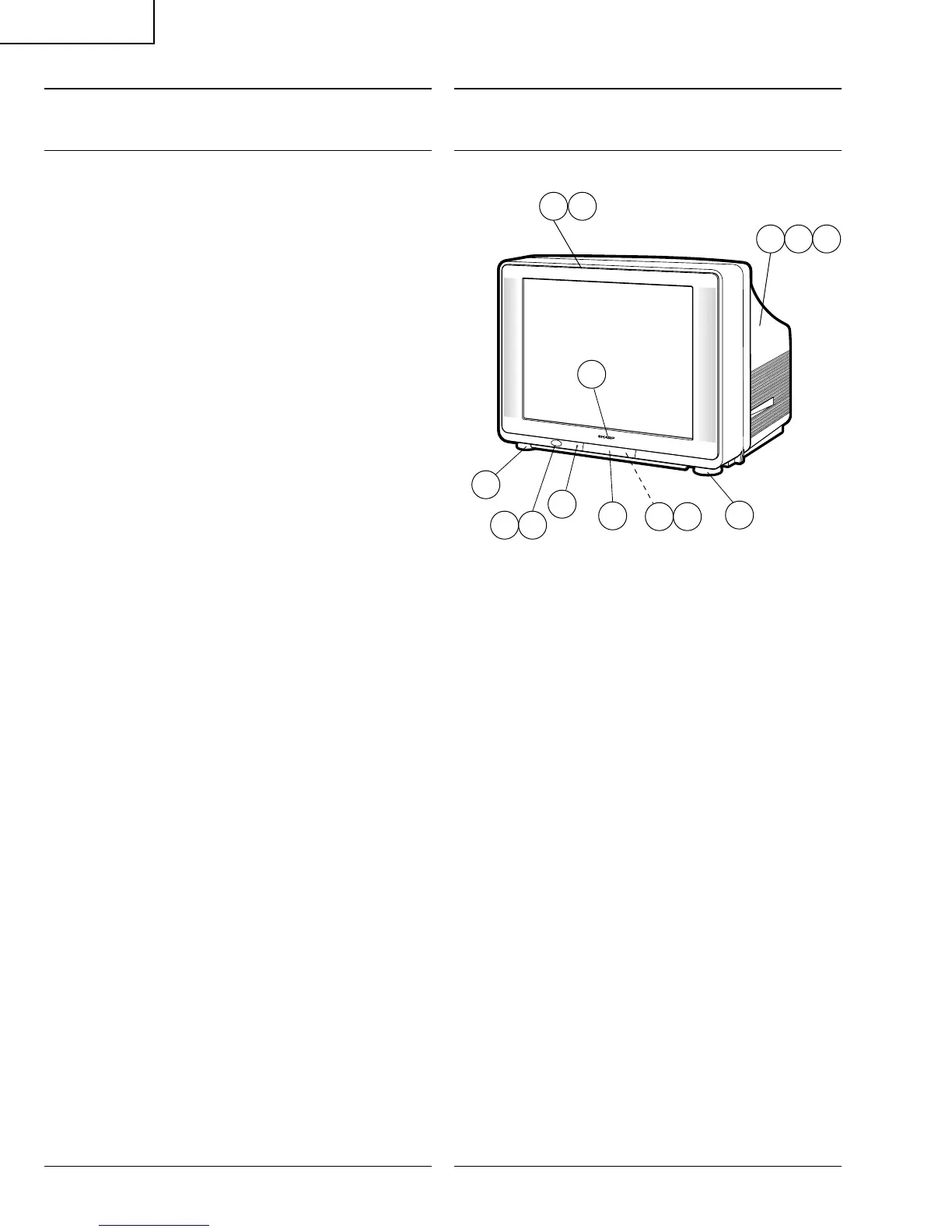

CABINET PARTS LOCATION
1
2 2-1 2-2
1-1
1-4
1-5
1-81-9
1-3
1-3
1-2
1-6 1-7
1 CCABA0069SEF0 J Front Cabinet Ass'y BP
1-1
Not Available
– Front Cabinet —
1-2 GDORF0032SESA J Door AF
1-3 GLEGP0001SESA J Foot AE
1-4 HBDGB3141CESA J Badge, "SHARP" AG
1-5 HDECQ0037SESA J Cover, R/C Receiver AE
1-6 HiNDP0049SESA J Indication Plate AD
1-7 PKAi-0001SE00 J Door Latch AF
1-8 JBTN-0035SESA J Power Button AE
1-9 MSPRC0002SEFW J Spring, for Power Button AC
2 CCABB0038SEF0 J Rear Cabinet Ass'y BE
2-1
Not Available
– Rear Cabinet —
2-2 HiNDP0050SESA J Indication Plate (Rear) AG
