AYAP7FHR
6 – 4

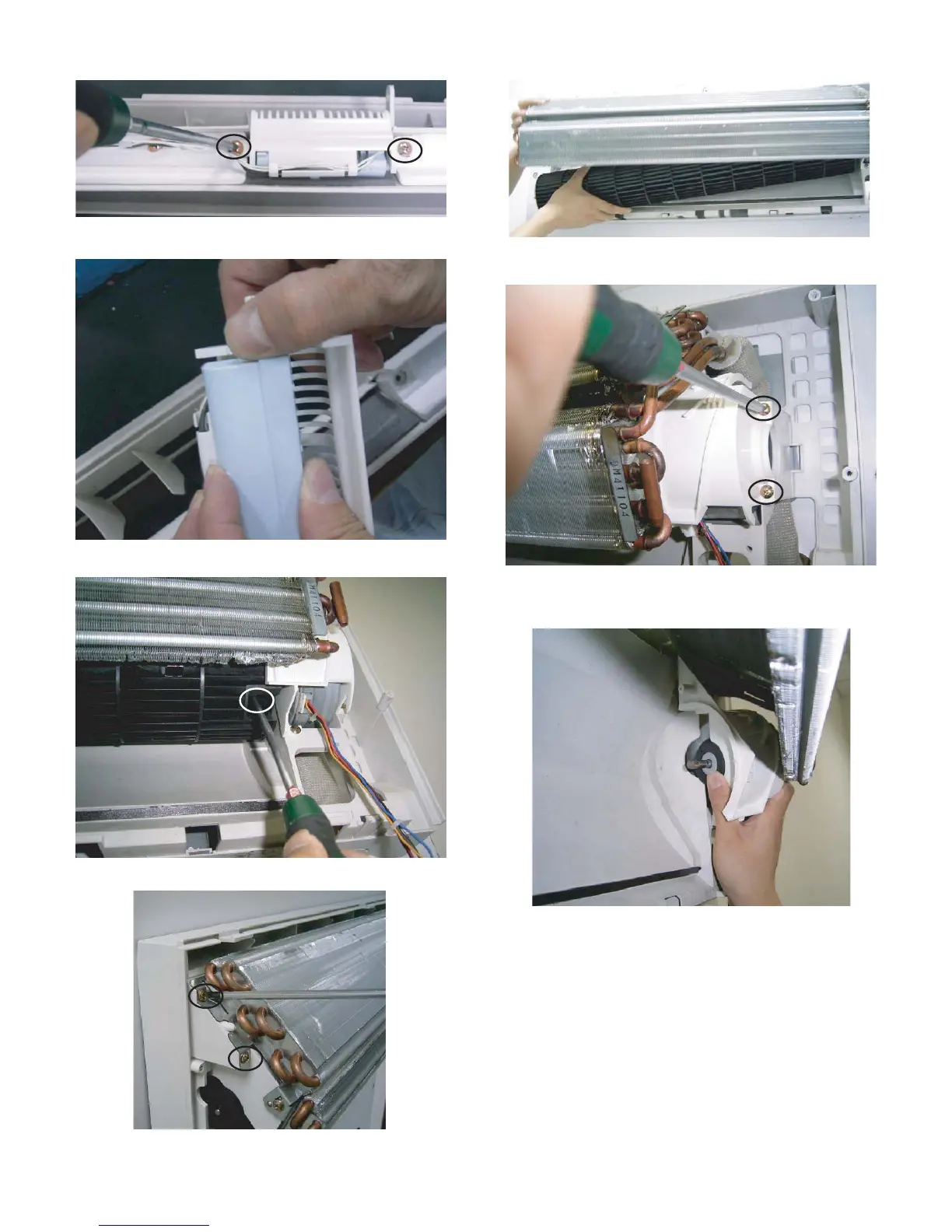

24)Remove 2 screws fixing the cluster holder.
25)Release hooks of cluster holder and take out plasma cluster.
26)Remove the screw fixing cross flow fan.
27)Remove 2 screws fixing the evaporator by the left side.
28)Hold up the left side of evaporator,pull out cross flow fan.
29)Remove 4 screws fixing motor cover.
30)By holding up the left side of evaporator,take out fan motor with
cover.
