Sharp AE-A7FHR - Electrical Parts

AYAP7FHR
1 – 5
2.2. AE-A9FHR

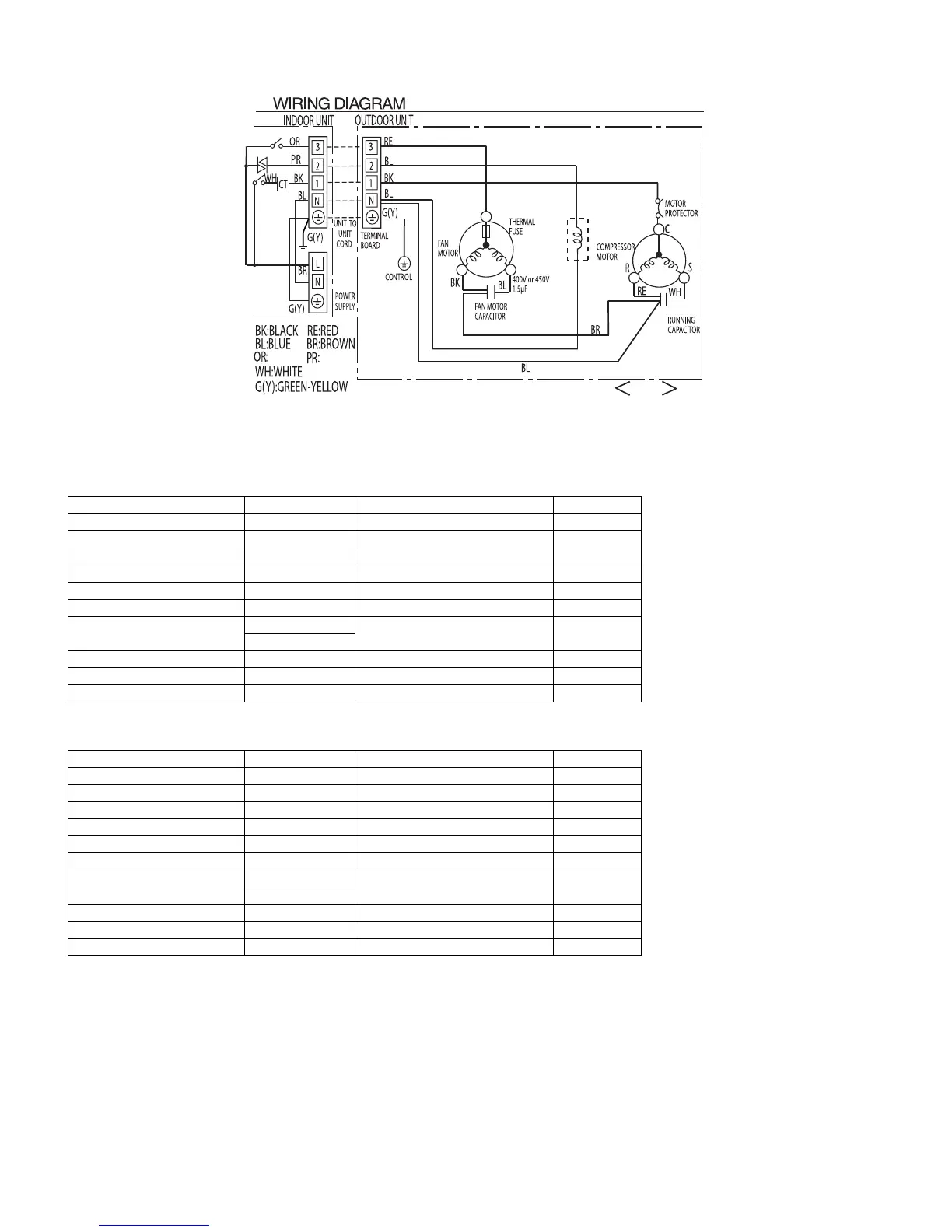

[4] ELECTRICAL PARTS
1. AY-AP7FHR, AE-A7FHR
2. AY-AP9FHR, AE-A9FHR
DESCRIPTION MODEL REMARKS SITE
Compressor 5RS084DAA01 220 - 240V, 50Hz, 600W OUTDOOR
Indoor fan motor SFS-230-22-4A 220 - 240V, 50Hz INDOOR
Outdoor fan motor YDK21-6S-2 220 - 240V,50Hz OUTDOOR
Indoor fan motor capacitor — 400V, 1.5μFINDOOR
Outdoor fan motor capacitor — 400V, 1.5μFOUTDOOR
Running capacitor — 400V, 20μFOUTDOOR
Transformer — Primary ; AC 220V, 50Hz INDOOR
— Secondary ; AC17.0V, 50Hz
Fuse — 250V, 2.5A INDOOR
Reverse valve SHF-4H-23U — OUTDOOR
Reverse valve coil — 220 - 240V, 50/60Hz OUTDOOR
DESCRIPTION MODEL REMARKS SITE
Compressor 44A233A 220 - 240V, 50Hz, 930W OUTDOOR
Indoor fan motor SFS-230-22-4A 220 - 240V, 50Hz INDOOR
Outdoor fan motor YDK21-6S-2 220 - 240V,50Hz OUTDOOR
Indoor fan motor capacitor — 400V, 1.5μFINDOOR
Outdoor fan motor capacitor — 400V, 1.5μFOUTDOOR
Running capacitor — 400V, 40μFOUTDOOR
Transformer — Primary ; AC 220V, 50Hz INDOOR
— Secondary ; AC17.0V, 50Hz
Fuse — 250V, 2.5A INDOOR
Reverse valve SHF-4H-23U — OUTDOOR
Reverse valve coil — 220 - 240V, 50/60Hz OUTDOOR
C074
40μ F 400V
BOX
VALVE
COIL
ORANGE
PURPLE
