A
Y
AP7FHR
6 – 7
•

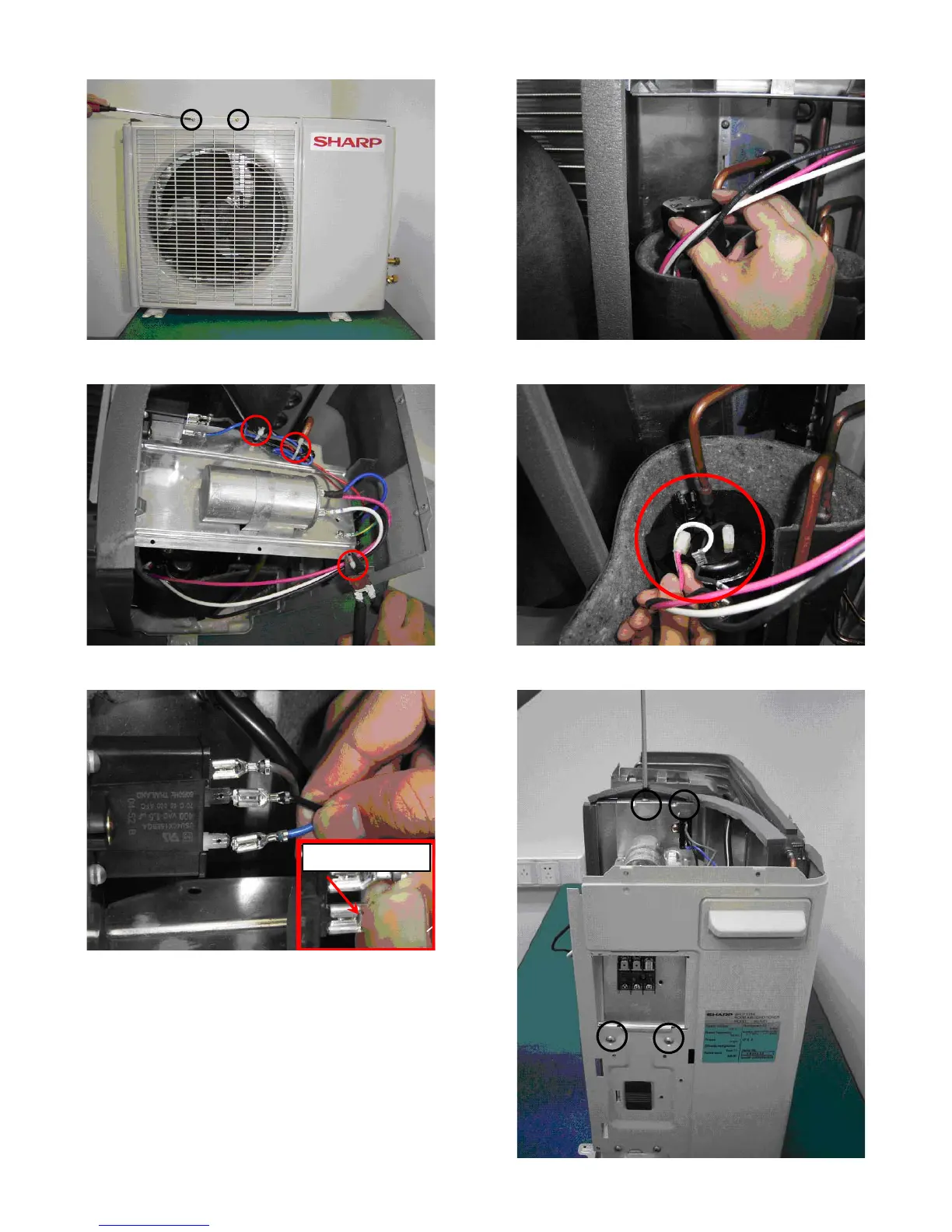

Front view
6)
Cut 3 plastic bands.
7)
Remove 2 terminals. (connecting with fan condenser)
8)
Remove the terminal cover
.
9)
Remove 3 termi
nals of compressor
.
10)Loose 4 screws fixing the con
trol box.
Push
this
little
button
by
finger
and
pull
out
24
26
