Service Manual
CHAPTER 6. DISASSEMBLING PROCEDURE
CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY SERVICING
[1] INDOOR UNIT

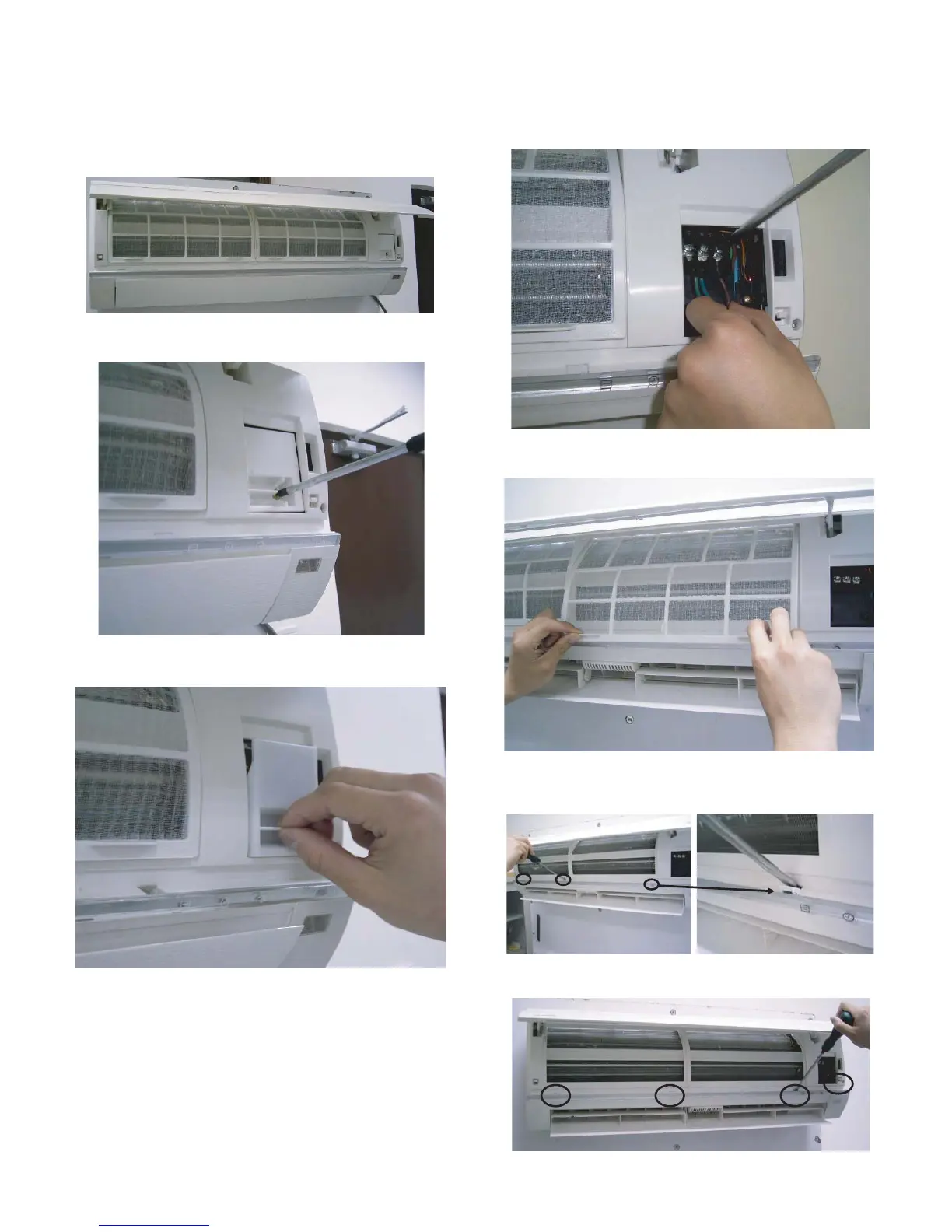

1) Open the open panel.
2) Remove the screw fixing the cord clamp.
3) Remove the cord clamp.
4) Remove the unit-to-unit wiring from the terminal board
5) Remove 2 air filters.
6) Remove 3 screw covers on front panel,push the bottom with minus
driver and draw them out.
7) Remove 4 screws fixing the front panel.
To Next Page
