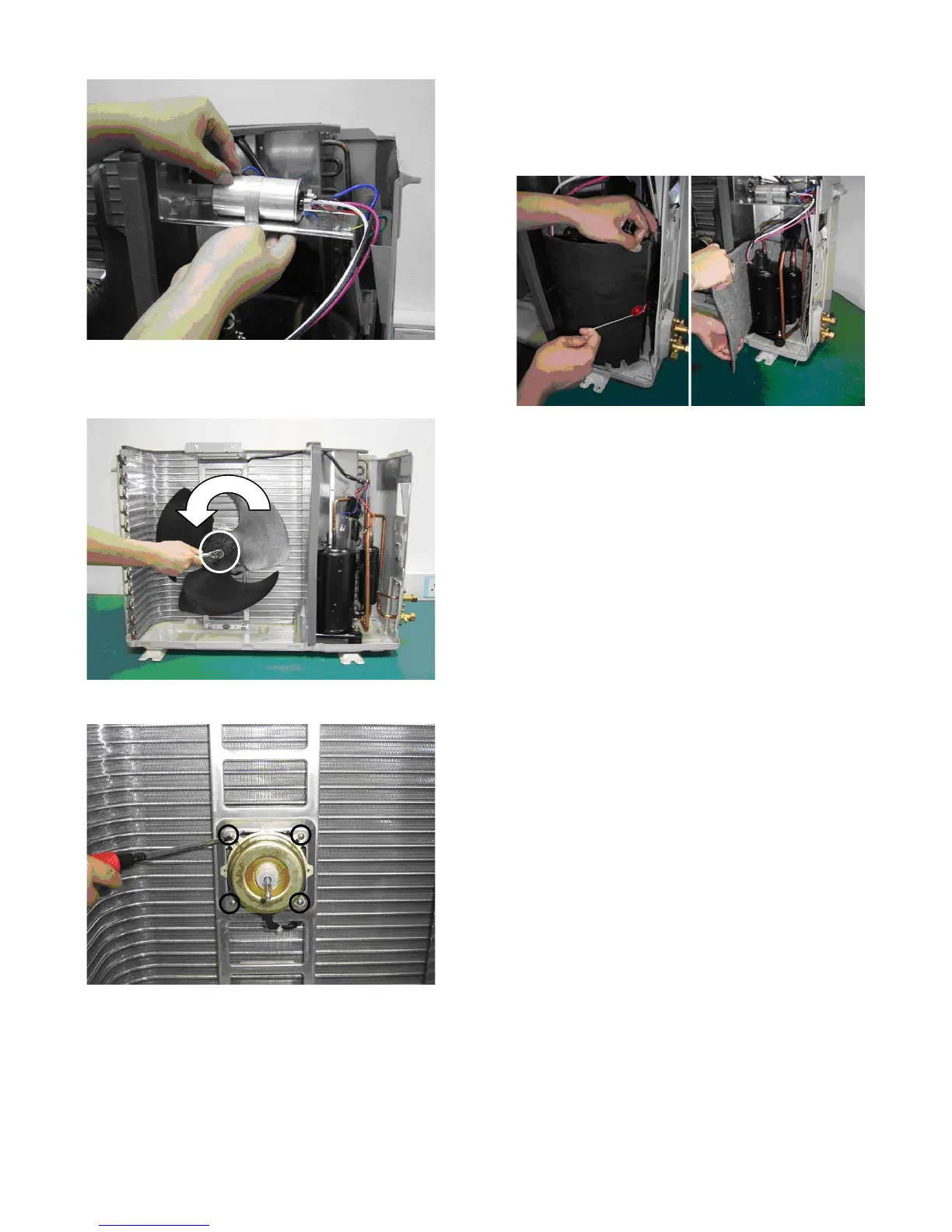

11)Take out the control box.
1. DISASSEMBLING PROCEDURE OF THE FAN
1) Loose the fan nut and take out fan.
2) Loose 4 screws fixing fan motor.
2. ASSEMBLING PROCEDURE OF COMPRESSOR
COVER
1) Remove: Unlace the fastener and pull the compressor cover out
from left side. [ a)→ b) ]
2) Assembly: Insert the compressor cover from left side, cover the
tube and fasten. [ b)→ a) ]
a) b)
