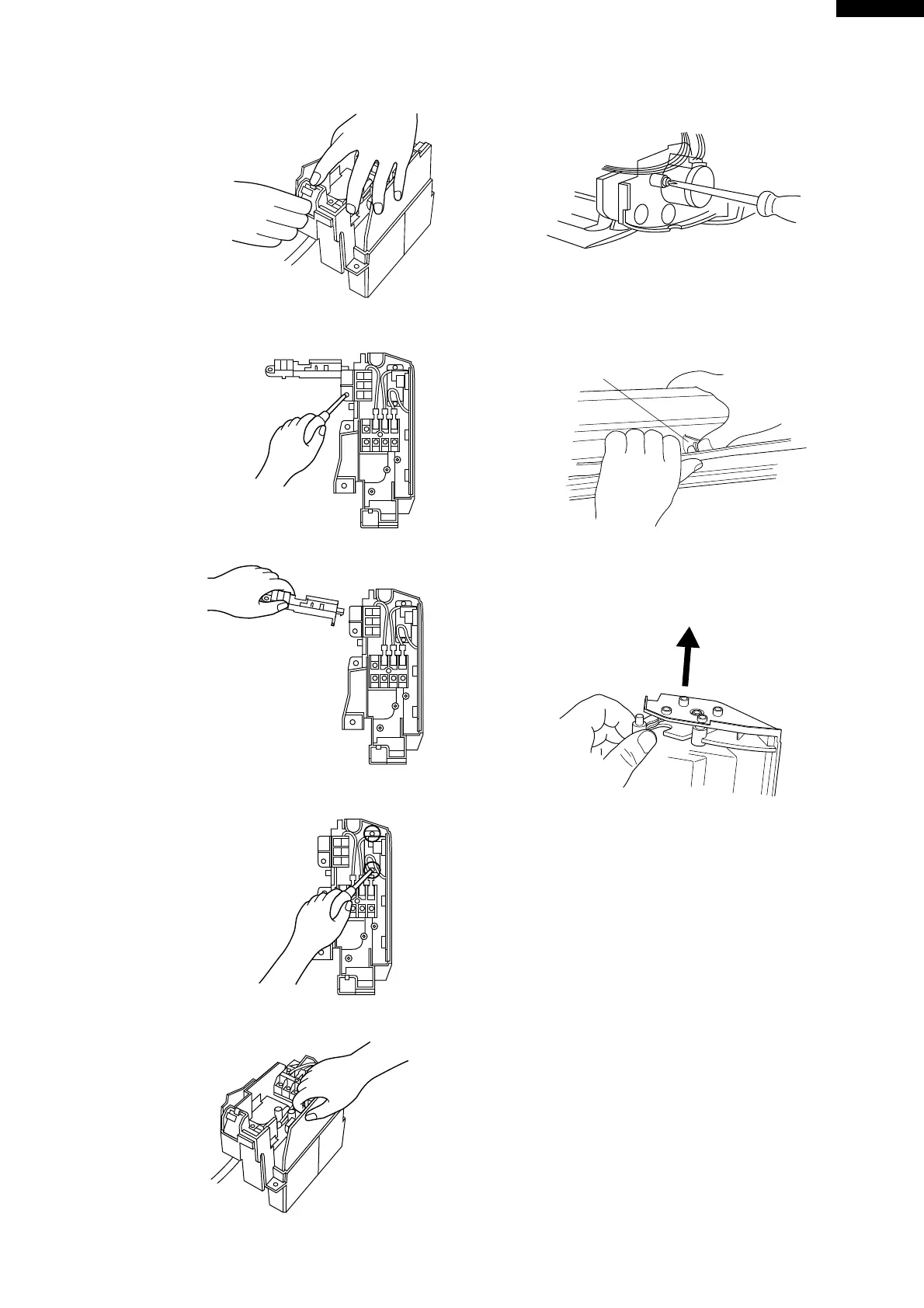

3. Remove the receiver unit.(Press and spread the upper
hook, and the receiver unit will be ready for removal.)
4. Remove the terminal board fastening screw of the
terminal board holder.
5. Remove the thermostat holder from the control box.
6. Remove the fastening screw of the board.
7. Pull out the board.
Drain pan and related
How to remove the louver motor.
Remove two screws which fasten the louver motor.
How to remove the horizontal adjustment louver
Slightly fall down the hinge area, deflect the louver, and
remove it at one place. Remove the shaft from each of
the left and right sides.
How to remove the side clamp assembly
Left the edge of the drain pan to the arrow-marked
direction and ditach the side clamp assembly.
