AF-06CSL
RUNNING CONDITION
Note:
1. Select mode of the Running Condition of a Room Air Conditioner.
SELECTOR .................................................................................................... HIGH COOL
THERMOSTAT .............................................................................................. 64˚F
2. Data of Performance Curve is measured between 40%RH and 70%RH.
If you measure the Room Air Conditioner above or below this rating, the data may miss the range of the
performance curve.
3. Outlet air temp. is influenced by the method of measurement. Measurement examples are shown.
4. Use power input data when checking the Running Condition.

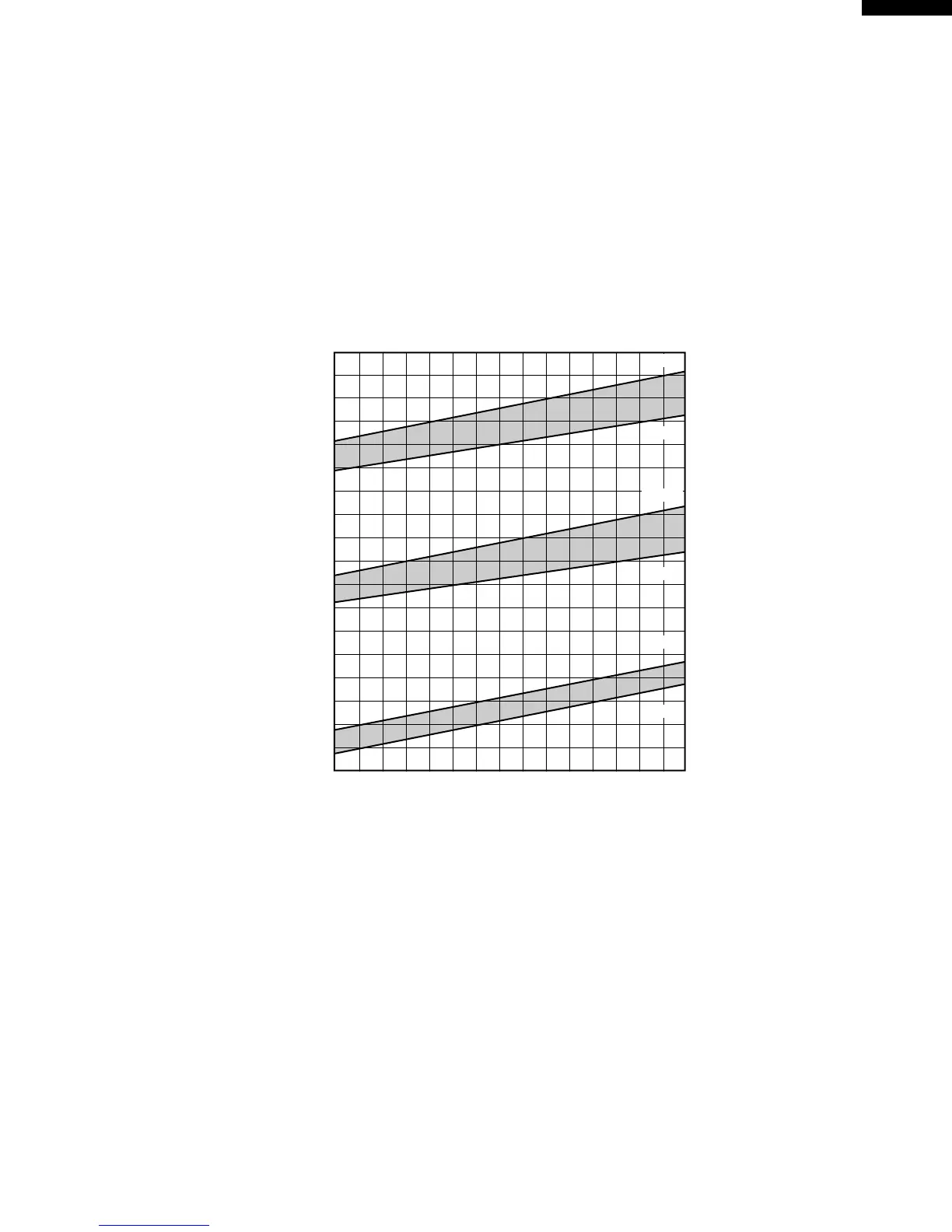

PERFORMANCE CURVE
Outside air temp.˚C (˚F)
Outlet air temp˚C (˚F)
25 30 35
(77) (86) (95) (104)
40
10
20
30
(50)
(68)
(86)
4
5
6
500
400
600
Line current(Amp.) Power input (W)
700
40%RH
70%RH
70%RH
40%RH
40%RH
70%RH
To Next Page
