INSTALLATION INSTRUCTIONS
Before beginning installation, read these instructions carefully.
Use the enclosed MOUNTING KIT for proper installation.
The mounting kit is designed for wooden sill double or single hung sash-type windows.
Minimum opening
(Without mounting kit)
17
23
/
32
" (450mm)
Window opening from stool to lower
sash bottom must be 14
27
/
32
" (377mm)
or more.
CHECK WINDOW AREA
• The air conditioner should be installed on a firm foundation to minimize noise and vibration.
For safe installation, repairs, replacement and secure positioning, make sure foundation is
solid and level.
• The room air conditioner must be installed in an area within reach of a properly rated
grounded outlet.
• Use of extension cords of any kind is not recommended.
• Never place any obstacles around air inlet.
Stool
Lower sash bottom
21
21
/
32
" (550mm)
33
7
/
16
" (850mm)

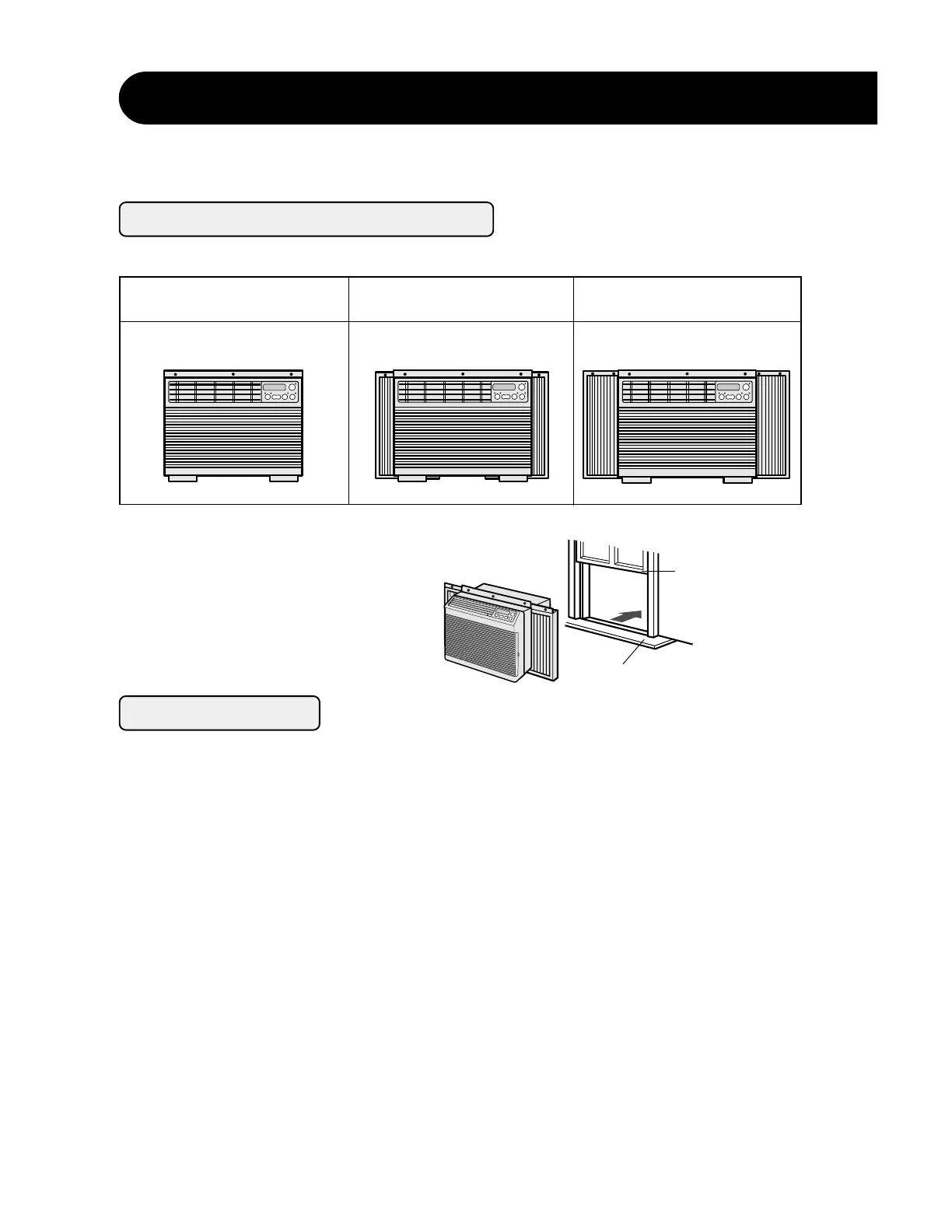

Mounting kit fully closed
Mounting kit fully opened
