7
1/2 inches
(13mm)
Indoor
side
Indoor
side
7
8
Secure the top angle of the unit and the
top of the closure assemblies to the sash
with three of the provided screws. (L=1",
25.4mm)
And secure the bottom of the closure
assemblies to the sill with two of the
provided screws. (L=1", 25.4mm)
9
Cut the window sash foam seal to the
proper length and seal the opening be-
tween the top of the inside window sash
and the outside window sash.
6

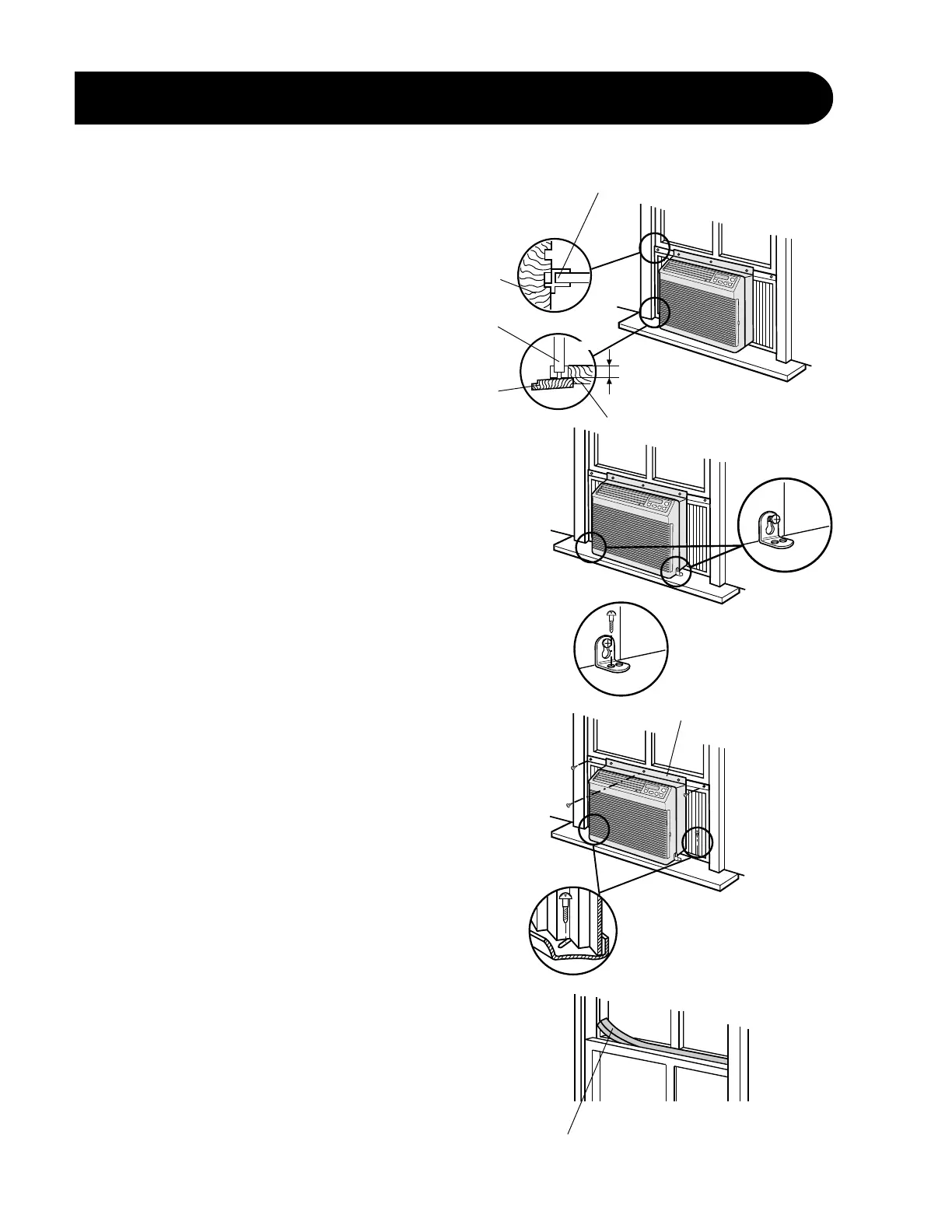

INSTALLATION INSTRUCTIONS
Top angle
Window sash foam seal
Secure the base pan angle to the sill by
using the hole of the front side on the
angle with one screw. (L=1", 25.4mm)
Loosen screws on both sides of the
cabinet, then hang the base pan angle
on and secure the screws again.
Insert the closure assemblies on both
sides into the rails of the jamb.
5
Jamb
(Left)
Sill
Stool
Closure assembly
(Left)
Closure assembly
(Left)
To Next Page
