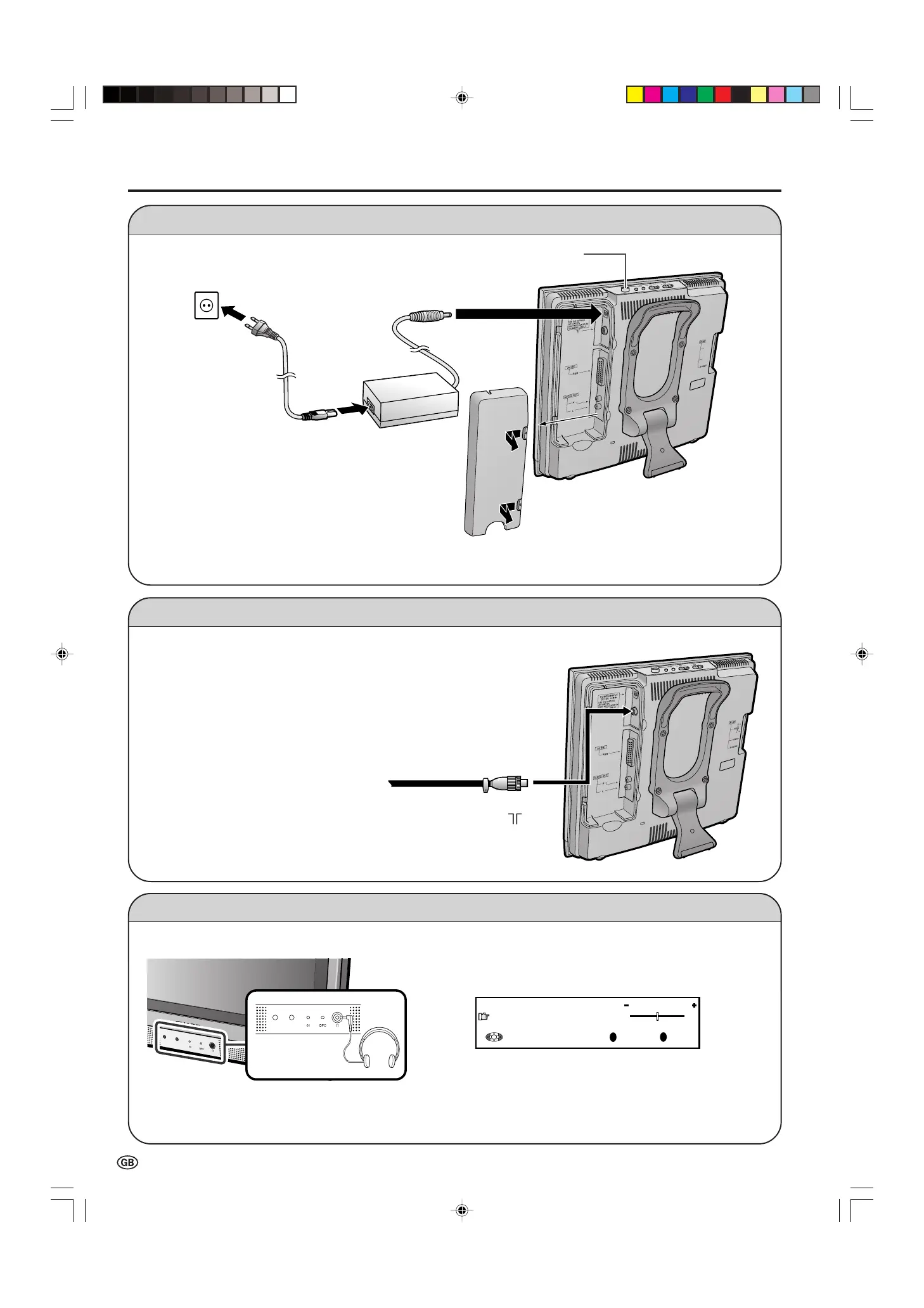

Power Connection
Preparation (Continued)
Antenna Connection
To enjoy a clearer picture, we recommend that you use an
outdoor antenna. The following is a brief explanation of the type
of connection that is used for coaxial cable:
If your outdoor antenna uses a 75-ohm coaxial cable,
change this for a new standard DIN45325 (IEC169-2) plug
and plug it into the antenna terminal at the back of TV set
via the antenna cable (not supplied).
A
Note:
• Always turn the
X
(MAIN POWER) switch of the LCD TV set to OFF when connecting the AC adapter.
• Unplug the AC adapter from the LCD TV set and power outlet when the LCD TV set is not to be used for a long period of time.
Listening with Headphones
■ Plug the headphone mini-plug into the Headphone jack located on the front of the TV set.
A
• Headphones are not included in the supplied accessories.
• Even if a headphone mini-plug is connected to the Headphone jack, sound can be heard from the main unit speaker.
OK
Back
M
End
E
Headph.vol. 3 0
Please refer to page 15 to adjust the
sound volume.
Connect to the DC input terminal of the product.
To POWER INPUT
terminal
Plug into an AC outlet.
AC cord*
AC adapter
* Product shape varies in some countries.
Household
power outlet
Push in the tabs to slide
open the cover.
X (MAIN POWER)
75-ohm coaxial cable (round cable)
To antenna input
terminal (
)
Headphones
