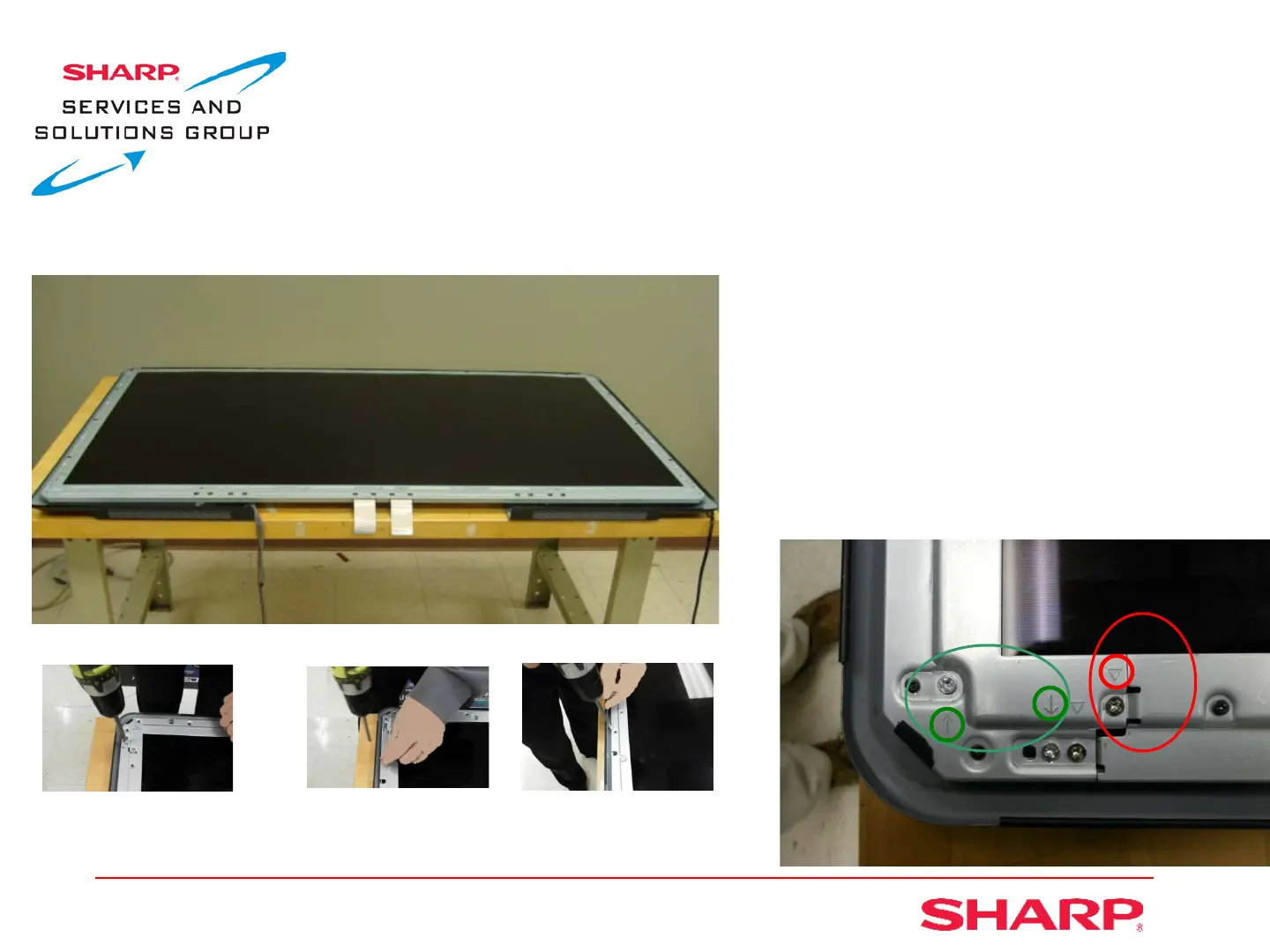

Panel Disassembly
Remove 40 machine
screws from LCD panel.
NOTE: All screws will be
denoted with an
embossed arrow.
19 screws
6 screws
6 screws
6 screws
