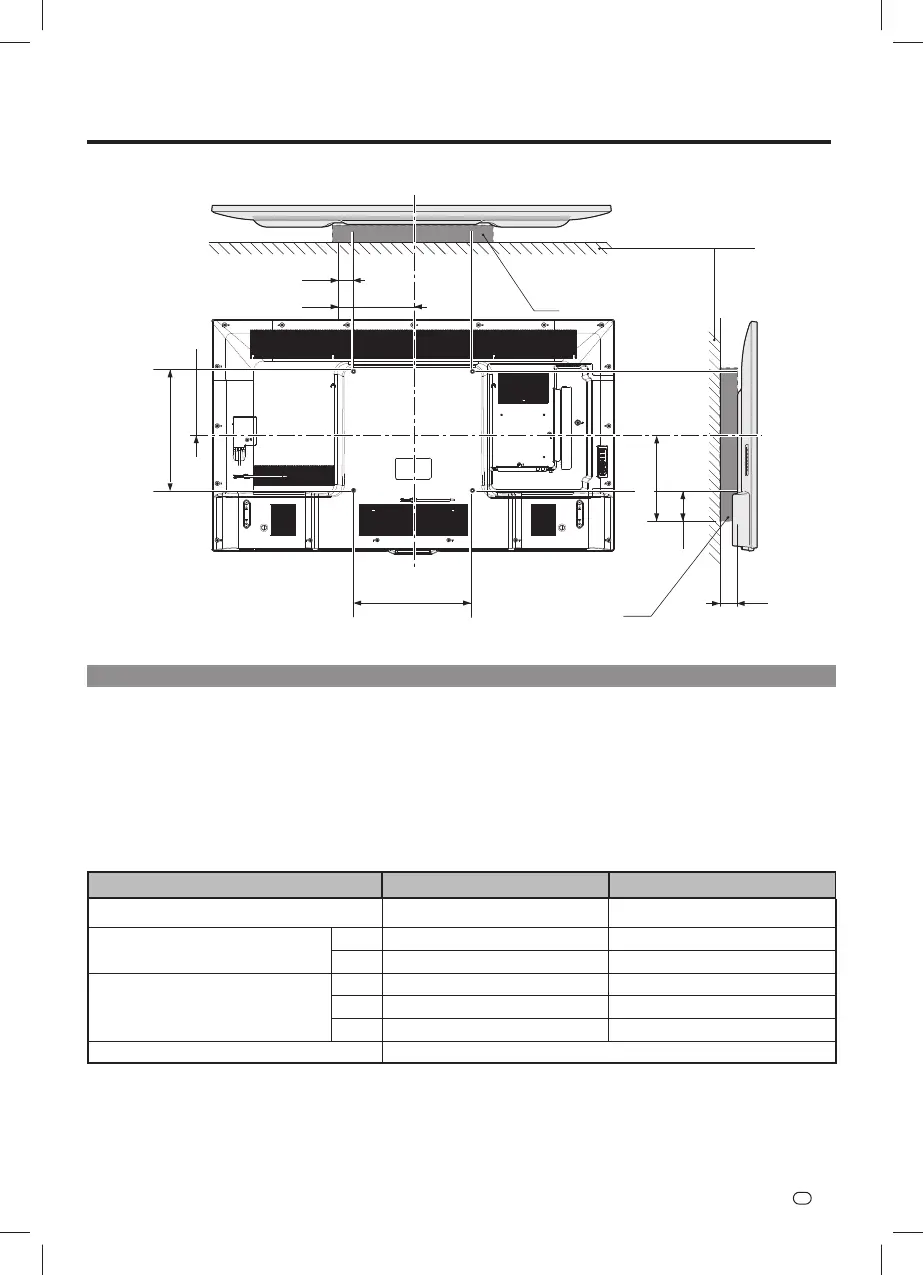

Wall Mount Kit Specifi cations
Standard dimensions for wall mount kits are shown below
*1 : WALL
*2 : WALL MOUNT KIT
a1 : Maximum distance from mounting hole.
a2 : Maximum distance from the TV’s center.
b1 : Distance between the TV’s center and the mounting hole.
b2 : Maximum distance from the TV’s center.
b3 : Maximum distance from the mounting hole.
c1 : Minimum gap.
Unit : mm
PN-UH601 PN-UH701
VESA screw hole specs (A-B)
15 3/4 (400) - 15 3/4 (400) 15 3/4 (400) - 15 3/4 (400)
Width
a1 1 55/64 (47) 3 23/64 (85)
a2 9 47/64 (247) 11 15/64 (285)
Height
b1 8 23/64 (212) 7 61/64 (202)
b2 8 15/32 (215) 10 (254)
b2 1 5/64 (27) 2 7/32 (56)
c1
1 31/32 (50)
EN
-
7
Setting the TV on the Wall
(For SHARP dealer and service engineers)
A
b1
B
b3
c1
b2
a2
a1
*2
*1
*2
