AH-A07BE-C/09B
E-C
AH-A07BE/09BE/1
2BE
AY-A07BE-C/09B
E-C
AY-A07BE/09BE/1
2BE
39

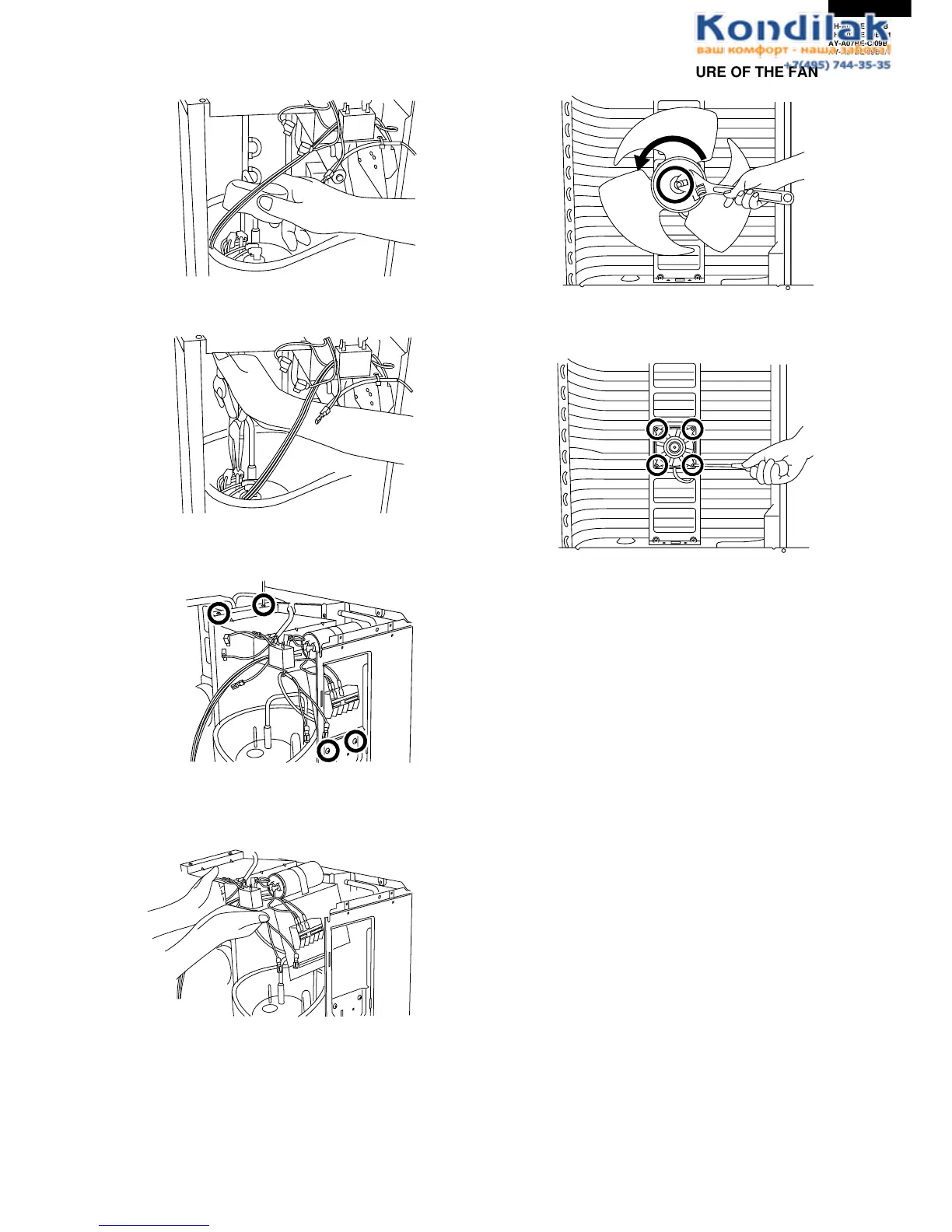

8.
Remove the terminal cover.
9.
Remove 3 terminals.
10.
Loose 4 screws fixing the control box.
11. Take out the control box.
DISASSEMBLING PROCED
URE OF THE FAN
1.
Loose the fan nut and fan can take out.
2.
Fan motor is secured by 4 screws.
Loose
38
40
