AH-A07BE-C/09B
E-C
AH-A07BE/09BE/1
2BE
AY-A07BE-C/09B
E-C
AY-A07BE/09BE/1
2BE
39
8.

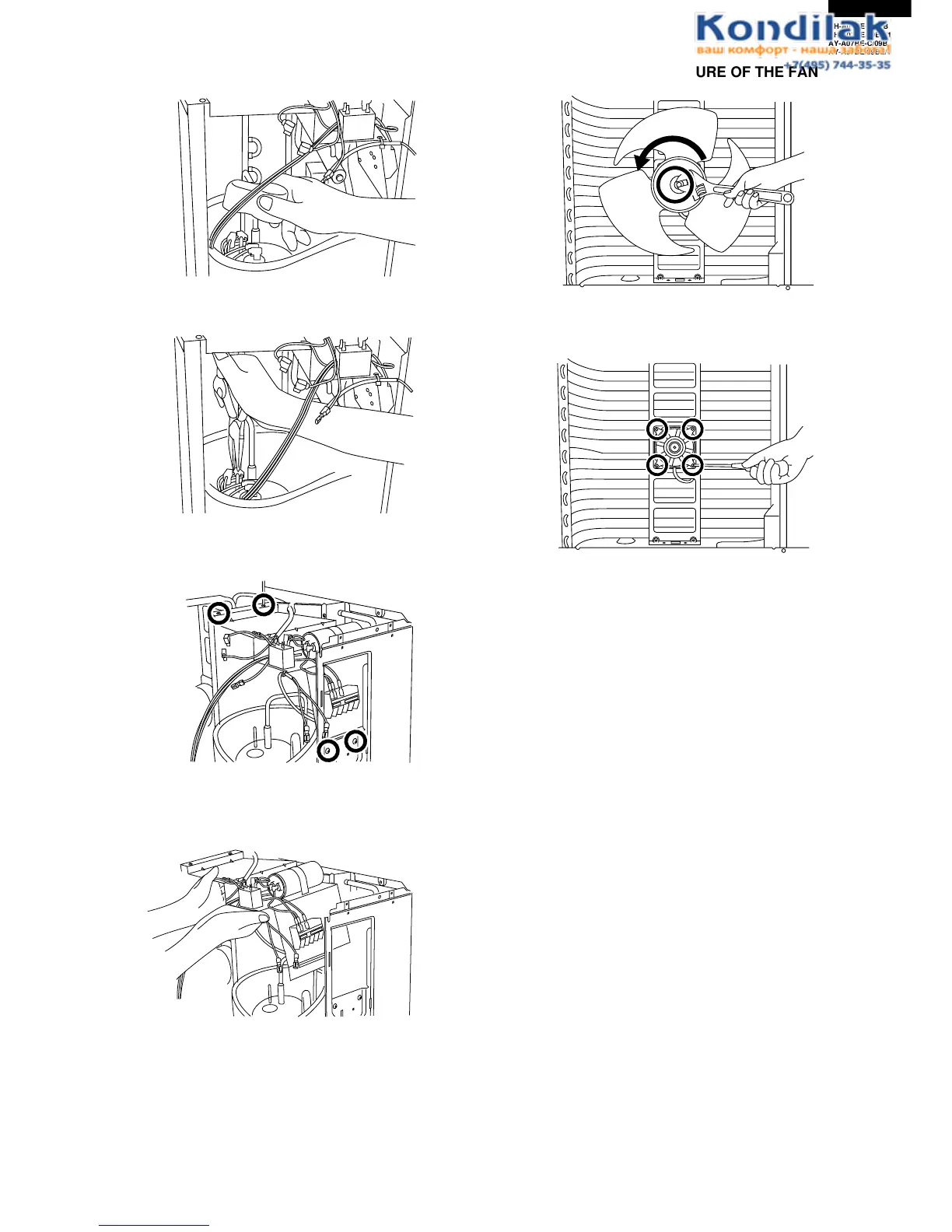

Remove the terminal cover.
9.
Remove 3 terminals.
10.
Loose 4 screws fixing the control box.
11. Take out the control box.
DISASSEMBLING PROCED
URE OF THE FAN
1.
Loose the fan nut and fan can take out.
2.
Fan motor is secured by 4 screws.
Loose
38
40
Table of Contents
Table of Contents
1
Service Manual
1
Specifications
2
External Dimensions
6
Wiring Diagrams
8
Electrical Parts
12
Microcomputer Control System
13
Functions
17
Refrigeration Cycle
29
Performance Curve
31
Disassembling Procedure
33
Replacement Parts List
50
5
Based on 1 rating
Ask a question
Give review
