AH-X08BE/10BE/13BE
AY-X08BE/10BE/13BE
AY-X08BE-C/10BE-C
AU-X08BE/10BE/13BE
AE-X08BE/10BE/13BE
AE-X08BE-C/10BE-C
CPU
15 A
protection
Outdoor fan
4-way valve(except for
the AU-X08BE/X10BE)
Power transistor module
Compressor
Current transformer
Compressor thermistor
Heat exchanger pipe thermistor
Outdoor temperature thermistor
Heat exchanger pipe thermistor(option)
Outdoor temperature thermistor(option)
LED
3 A
protection
10 A
protection
Power supply circuit
(built into IPM)
CPU oscillator circuit
Outdoor fan relay drive circuit
4-way valve relay drive circuit
(except for the AU-X08BE/X10BE)
Power transistor module drive circuit
Serial I/O circuit
CPU reset circuit
DC overcurrent detection circuit
AC overcurrent detection circuit
Compressor thermo circuit
Heat exchanger pipe thermo circuit
Outdoor temp. thermo. circuit
Winter kit circuit (option)
LED drive circuit
Test mode circuit
Active filter
circuit
Filter
circuit
Smoothing
circuit
Unit-unit wiring (AC power
and serial signals)
CPU
20 A
protection
Outdoor fan
4-way valve(except for
the AU-X13BE)
Power transistor module
Compressor
Current transformer
Compressor thermistor
Heat exchanger pipe thermistor
Outdoor temperature thermistor
Heat exchanger pipe thermistor(option)
Outdoor temperature thermistor(option)
LED
3 A
protection
20 A
protection
Power supply circuit
(built into IPM)
CPU oscillator circuit
DC overvoltage detection circuit
Outdoor fan relay drive circuit
4-way valve relay drive circuit
(except for the AU-X13BE)
Power transistor module drive circuit
Serial I/O circuit
CPU reset circuit
DC overcurrent detection circuit
AC overcurrent detection circuit
Compressor thermo circuit
Heat exchanger pipe thermo circuit
Outdoor temp. thermo. circuit
Winter kit circuit (option)
LED drive circuit
Test mode circuit
Active filter
circuit
Filter
circuit
Smoothing
circuit
Unit-unit wiring (AC power
and serial signals)

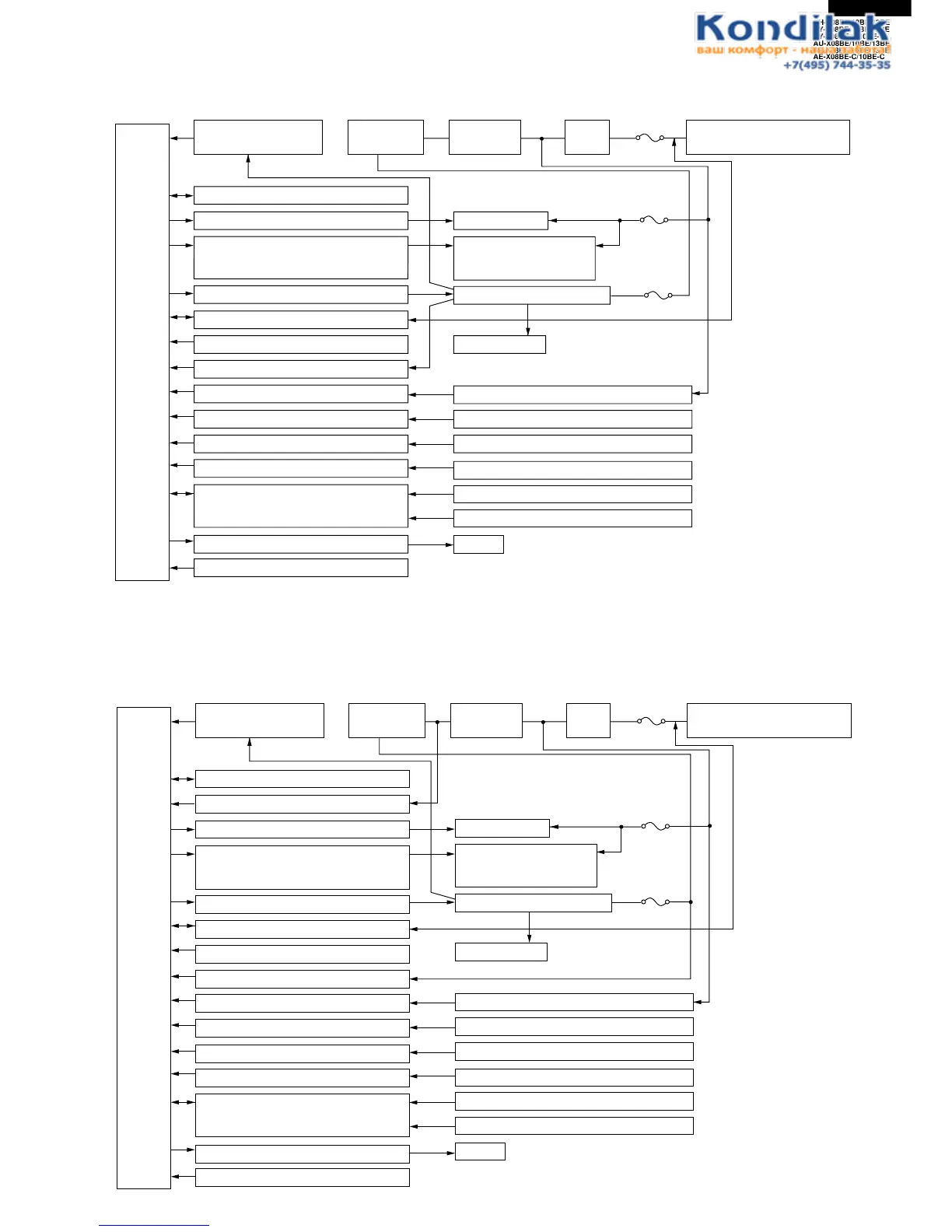

OUTDOOR UNIT for AU-X08BE/X10BE and AE-X08BE/X08BE-C/X10BE/X10BE-C
OUTDOOR UNIT for AU-X13BE and AE-X13BE
