FOR OUTDOOR UNIT [AU-X08BE/X010BE/X13BE, AE-X08BE/X08BE-C/X010BE/X10BE-C/X13BE]
CAUTION : DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY SERVICING

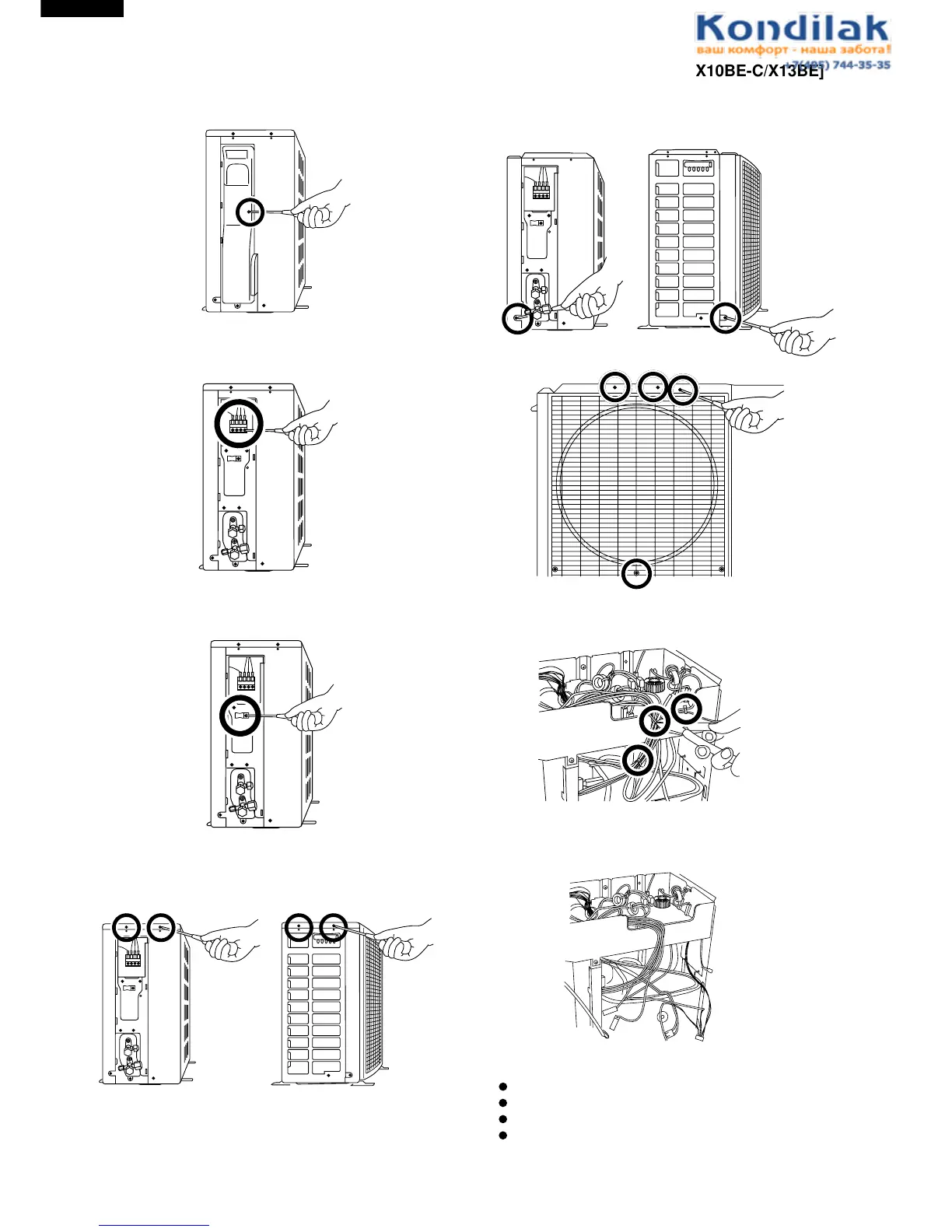

1. Loose a screw fixing the side cover.
Right side view Left side view
Right side view Left side view
Front view
2. Loose the unit to unit cord.
3. Loose a screw fixing the cord clamp.
4. Loose 4 screws fixing the top panel.
5. Loose 6 screws fixing the front panel.
6. Cut 3 nylon bands.
7. Disconnect following connectors and each wire.
Choke coil(two terminal)
Fan motor
Thermistor
Reverse valve
(AE-X08BE/X08BE-C/10BE/X10BE-C/13BE)
