Sharp AY-X095E Service Manual

*-XO75E/X00SE
=X075E/X09SE
1-9
1-10
1-12
1-13

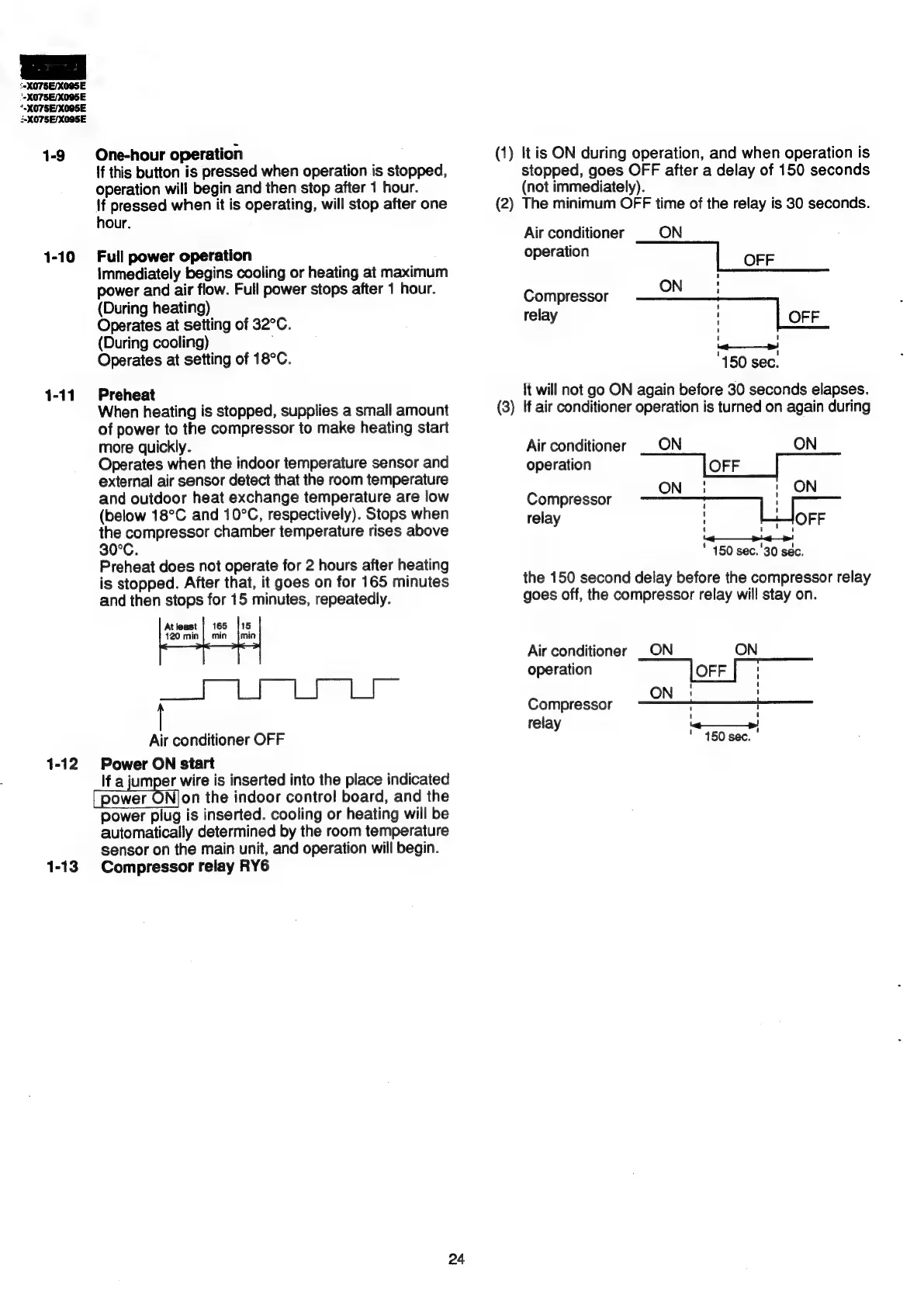

One-hour operation
If this button is pressed when operation is stopped,
operation will begin and then stop after 1 hour.
{f pressed when it is operating, will stop after one
hour.
Full power operation
Immediately begins cooling or heating at maximum
power and air flow. Full power stops after 1 hour.
(During heating)
Operates at setting of 32°C.
(During cooling)
Operates at setting of 18°C.
Preheat
When heating is stopped, supplies a small amount
of power to the compressor to make heating start
more quickly.
Operates
when
the
indoor
temperature
sensor
and
external
air
sensor
detect
that
the
room
temperature
and
outdoor
heat
exchange
temperature
are
low
(below
18°C
and
10°C,
respectively).
Stops
when
the
compressor
chamber
temperature
rises
above
30°C.
Preheat does not operate for 2 hours after heating
is stopped. After that, it goes on for 165 minutes
and then stops for 15 minutes, repeatedly.
Atleast | 165 [15
120 min | min jmin
Sod eh del ea
Air conditioner OFF
Power ON start
lfa STON wire is inserted into the place indicated
[power ONjon the indoor control board, and the
power
plug
is
inserted.
cooling
or
heating
will
be
automatically
determined
by
the
room
temperature
sensor
on
the
main
unit,
and
operation
will
begin.
Compressor
relay
RY6
24
(1) It is ON during operation, and when operation is
(2)
(3
—
stopped, goes OFF after a delay of 150 seconds
(not immediately).
The minimum OFF time of the relay is 30 seconds.
Air conditioner ON
operation OFF
Compressor oN
relay
|
OFF
ri
150 sec.
it will not go ON again before 30 seconds elapses.
lf air conditioner operation is turned on again during
ON
Air conditioner ON
operation OFF
ON ON
LJ OFF
Compressor
relay
150 sec. 30 sec.
the 150 second delay before the compressor relay
goes off, the compressor relay will stay on.
Air conditioner _ON ON
operation OFF
ON |
Compressor OOOO
relay
150 sec.
