Sharp AY-X095E Service Manual

AH-X075E/X095E
+\U-XO7SE/XO95E
‘AY-XO75E/X005E
AE-X075E/X095E

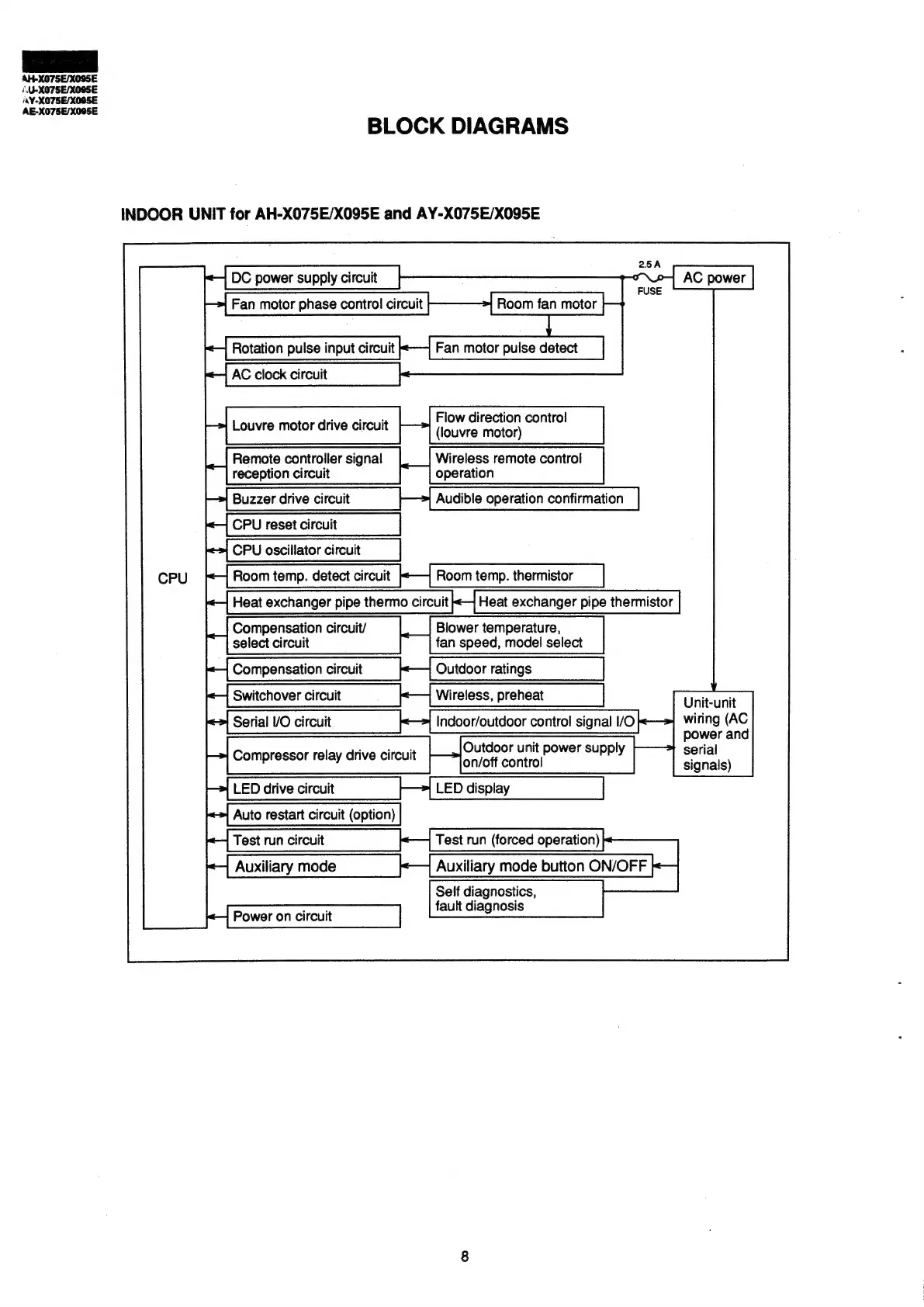

BLOCK DIAGRAMS
INDOOR UNIT for AH-X075E/X095E and AY-X075E/X095E
25A
DC power supply circuit a,
FUSE
Fan motor phase control circuit
Rotation pulse input circuit Fan motor pulse detect
AC clock circuit
ht ea Flow direction control
Louvre motor drive circuit (louvre motor)
Remote controller signal Wireless remote control
reception circuit operation
Room temp. detect circuit
Compensation circuit/ Blower temperature,
select circuit fan speed, model select
Compensation circuit Outdoor ratings
Switchover circuit Wireless, preheat
Serial I/O circuit Indoor/outdoor control signal I/O
ik ae Outdoor unit power supply ee
Compressor relay drive circuit on/off control sigrials)
LED drive circuit LED display
Auto restart circuit (option)
Fe Test run circuit Ea Test run (forced operation) el
Auxiliary mode Auxiliary mode button ON/OFF
Self diagnostics,
ae fault diagnosis
Power on circuit 9
