Sharp AY-X095E User Manual

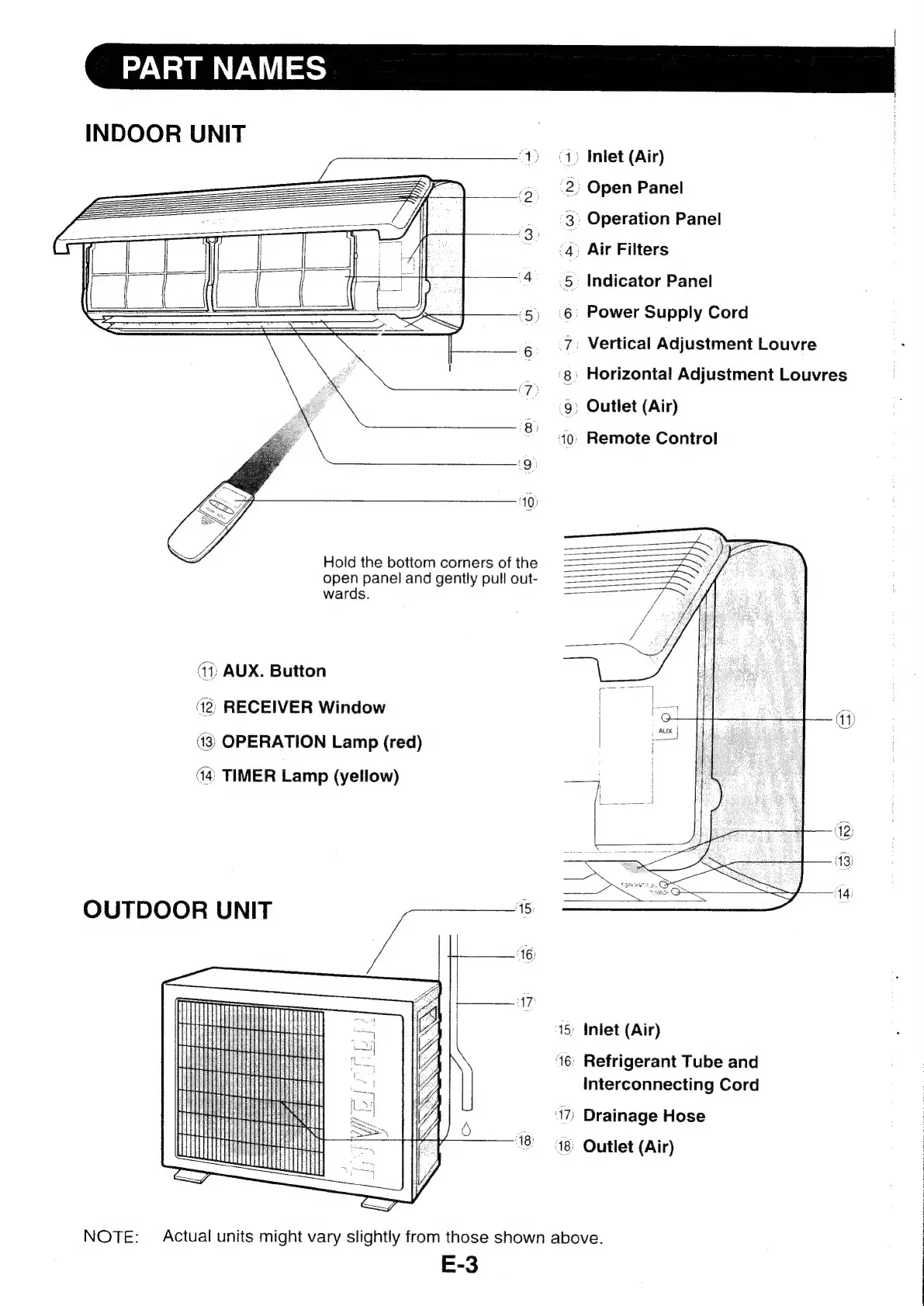

PART NAMES
INDOOR UNIT
(1) Inlet (Air)
.2) Open Panel
3: Operation Panel
3
(4) Air Filters
5 Indicator Panel
6
Power Supply Cord
7: Vertical Adjustment Louvre
‘8: Horizontal Adjustment Louvres
.g) Outlet (Air)
40: Remote Control
Hold the bottom corners of the
open panel and gently pull out-
wards.
41) AUX. Button
(12; RECEIVER Window
43) OPERATION Lamp (red)
44 TIMER Lamp (yellow)
OUTDOOR UNIT / |
16)
—,
5: Inlet (Air)
‘16 Refrigerant Tube and
interconnecting Cord
17, Drainage Hose
8 Outlet (Air)
a
NOTE: Actual units might vary slightly from those shown above.
E-3
