BEFORE USING THE MACHINE

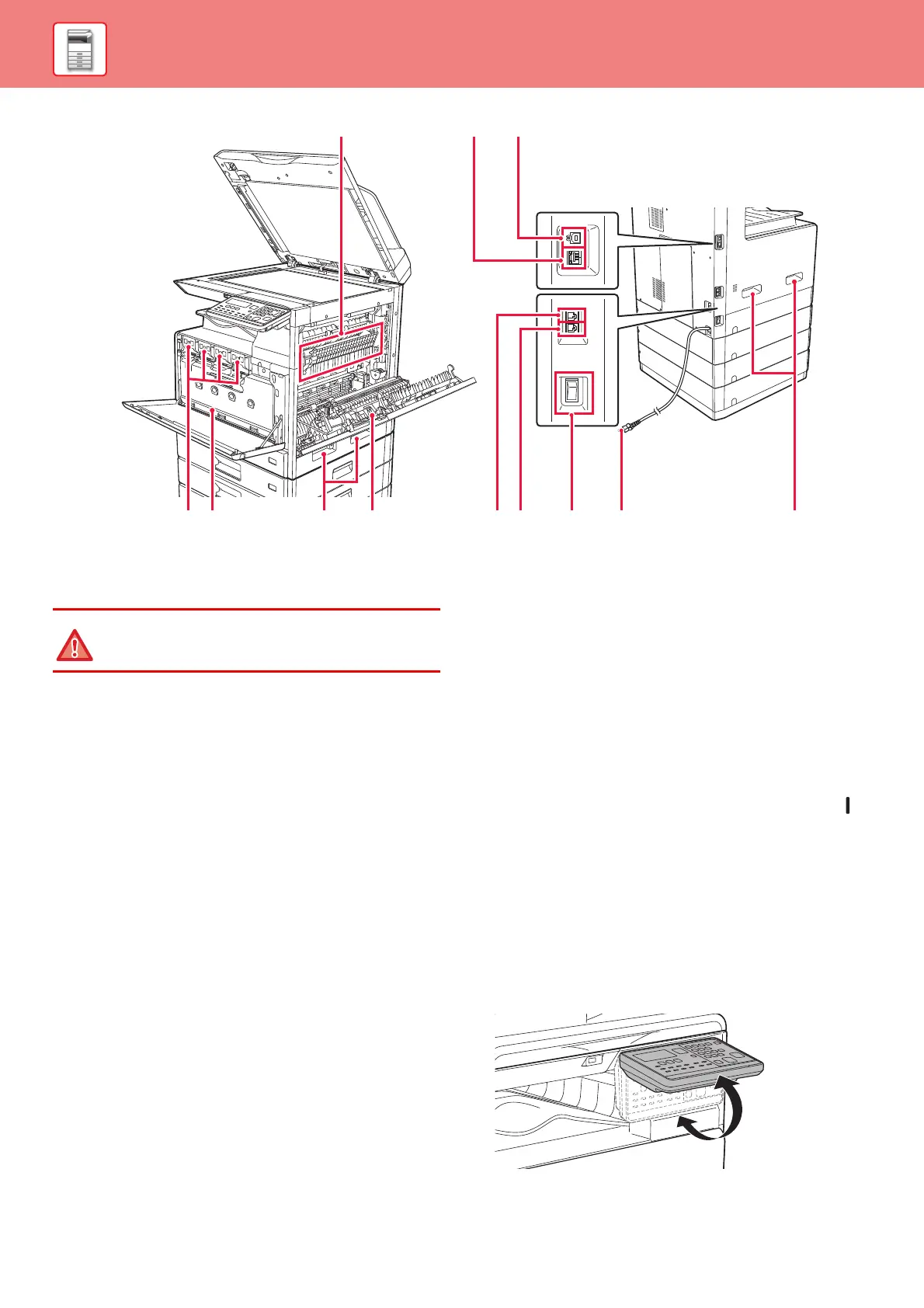

(1) Fusing unit
Heat is applied here to fuse the transferred image onto
the paper.
(2) LAN connector
Connect the LAN cable to this connector when the
machine is used on a network.
Use a shielded LAN cable.
(3) USB port (B type)
The machine does not use this connector.
(4) Toner cartridge
This cartridge contains toner.
When the toner in a cartridge runs out, replace with new
one.
(5) Waste toner box
This container collects excess toner that remains after
printing.
(6) Handle
Grasp it when moving the machine.
(7) Side cover
Open this cover to remove a paper misfeed.
(8) Telephone line socket (LINE)
When the fax function of the machine is used, the
telephone line is connected to this socket.
(9) Extension phone socket (TEL)
When the fax function of the machine is used, an
extension phone can be connected to this socket.
(10) The main power switch
Use this switch to turn on the power for the machine.
When using the fax, always keep this switch in the " "
position.
(11) Power plug
To change the angle of the operation panel
You can change the angle of the operation panel.
Adjust the angle for ease of viewing.
(5) (7) (6)(8) (9) (11)(10)
(1) (2) (3)
(6)
(4)
The fusing unit is hot. Take care not to burn yourself
when removing a misfeed.
