Sharp Carousel R-1514 User Manual

13
UNPACKING AND INSTALLATION INSTRUCTIONS
Top Side
Cutting Line
Figure 21
(A)
(B)
Figure 20
Figure 22

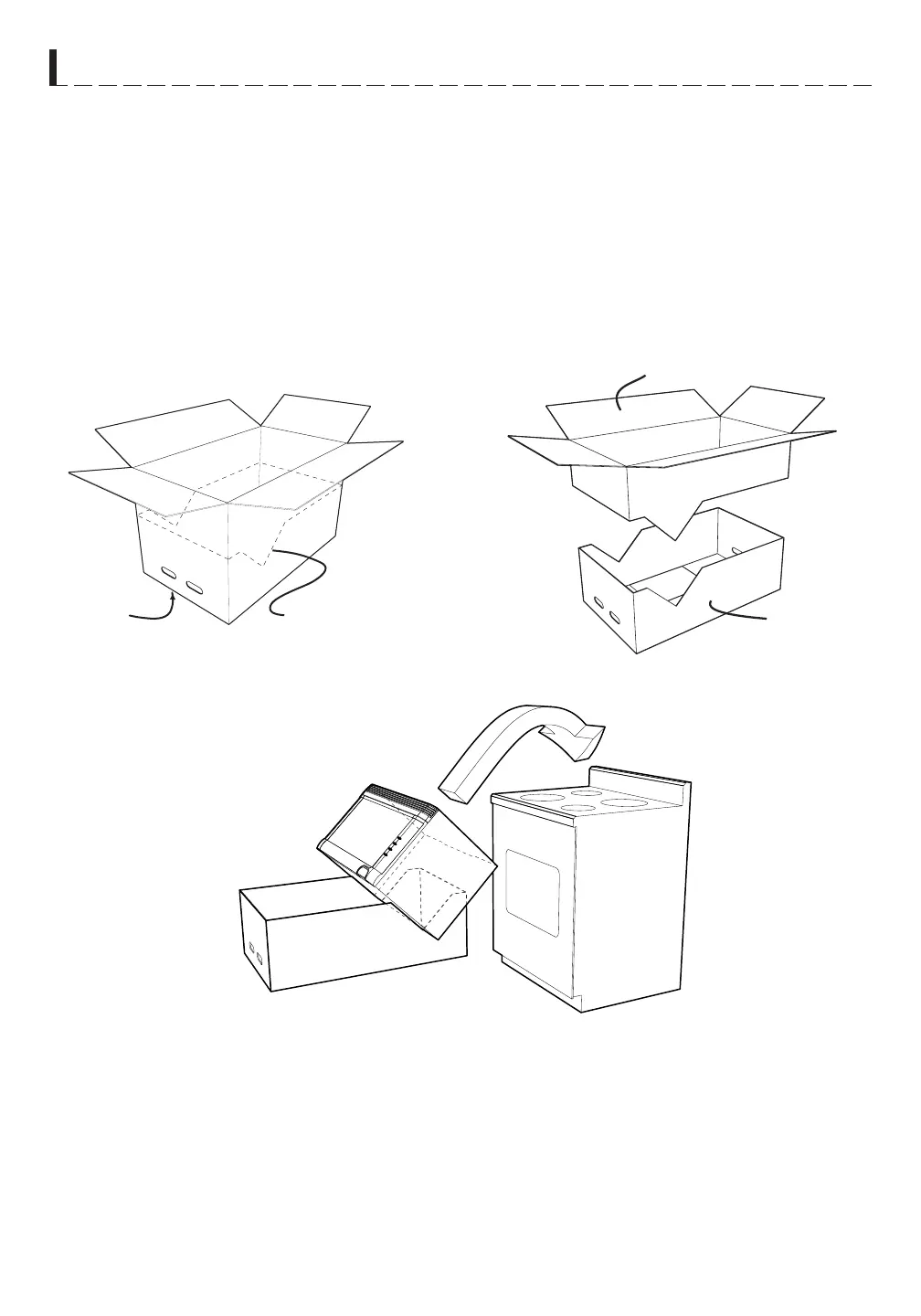

10 PREPARATION AND USE OF THE CARTON TO ASSIST IN THE INSTALLATION OF THE
MICROWAVE OVEN
Utilization of the carton may make installation easier.
1. Place carton upside down. See Figure 20.
2. Using cutting line around the carton, cut into two pieces (A) and (B). See Figure 21.
3. Position oven to assist in mounting to the wall. See Figure 22.
1.1 R-1510/11/12/14#349 4/1/03, 11:39 AM13

Sharp Carousel R-1514 Specifications

General

Style	over-the-range
Color	stainless steel
Total Capacity	1.5 cubic feet
Sensor Cooking	yes
Child Lock	yes
Timer	yes
Microwave Power	1000 watts
Current	14 amperes

Weight and Dimensions

Depth	15.56 inches
Height	16.25 inches
Width	29.94 inches
Net Weight	55 pounds
