CHARCOAL FILTER
Charcoal Filter, Sharp part number RK-240 which was
installed in your oven, is used for nonvented, recircu-
lated installation. The filter should be changed every
6 to 12 months depending on use. See page 14 for
ordering information.
1. Disconnect power to the oven at the circuit breaker
panel or by unplugging.

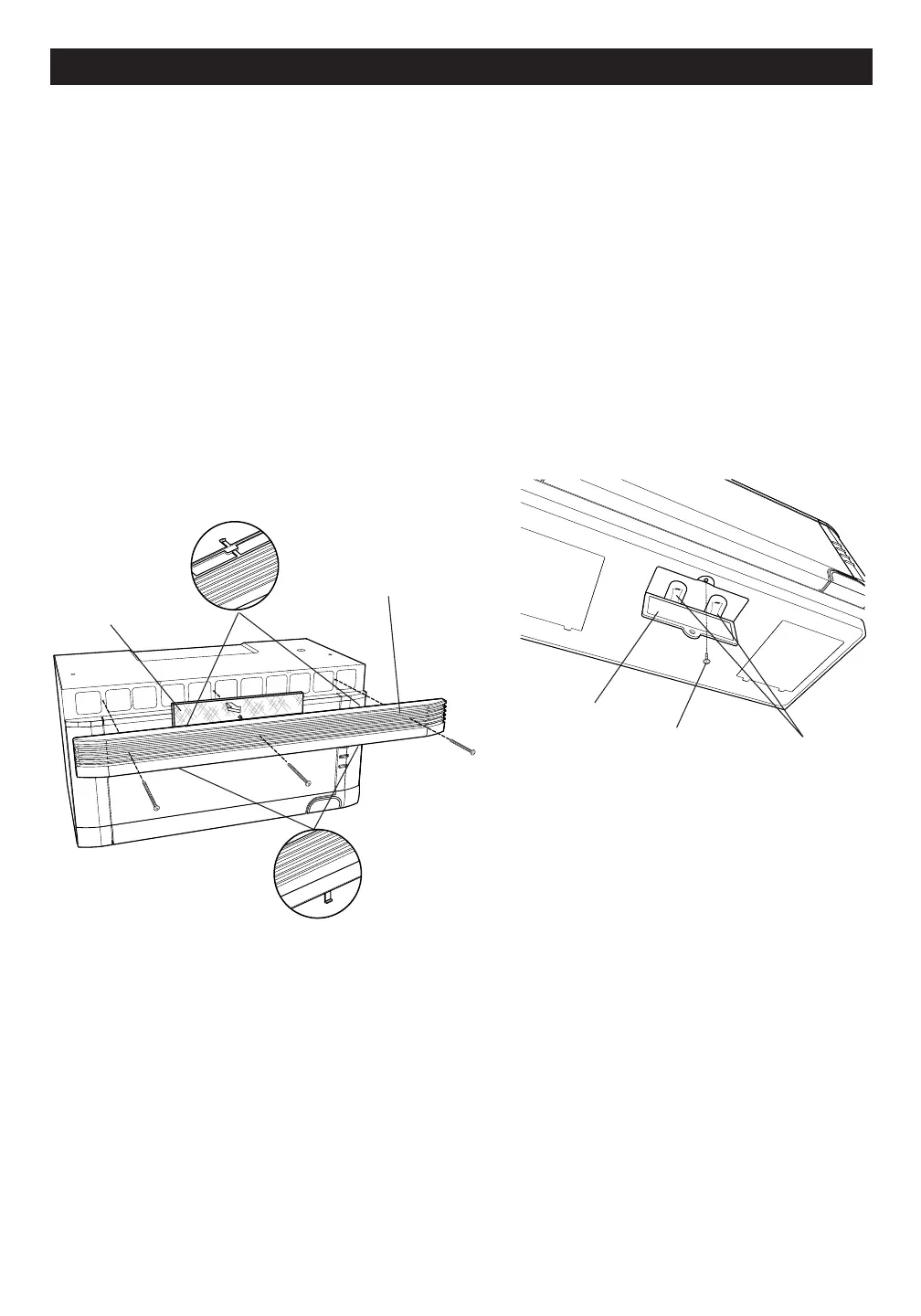

2. Remove the three louver mounting screws and
push down carefully on the tab at each end of the
louver to disengage it. (See illustration.)
3. Pull the louver away from the unit.
4. Change the charcoal filter.
5. Carefully push the louver back into place (engaging
both the bottom and top tabs) and replace the
screws removed in step 2.
Light cover
Screw
Light bulbs
REPLACING PARTS
LIGHT BULBS
1. To replace light bulbs, first disconnect power to the
oven at the circuit breaker panel or by unplugging.
2. To release cover, remove the screw on the light cover.
(See illustration.)
3. Replace light bulbs with equivalent watt bulb
available from your Sharp Authorized Servicer or
parts distributor. Bulbs are also available at most
hardware stores or lighting centers. DO NOT USE
A BULB LARGER THAN 30 WATTS.
4. Close light cover and secure with screw removed in
step 2.
CAUTION: Light cover may become very hot. Do not
touch glass when light is on.
Louver
Charcoal filter
(white side faces front)
Top tab
Bottom tab
Screw
Screw
Screw
1.1 R-1510/11/12/14#349 4/1/03, 11:39 AM33

Sharp Carousel R-1514 Specifications

General

Style	over-the-range
Color	stainless steel
Total Capacity	1.5 cubic feet
Sensor Cooking	yes
Child Lock	yes
Timer	yes
Microwave Power	1000 watts
Current	14 amperes

Weight and Dimensions

Depth	15.56 inches
Height	16.25 inches
Width	29.94 inches
Net Weight	55 pounds
