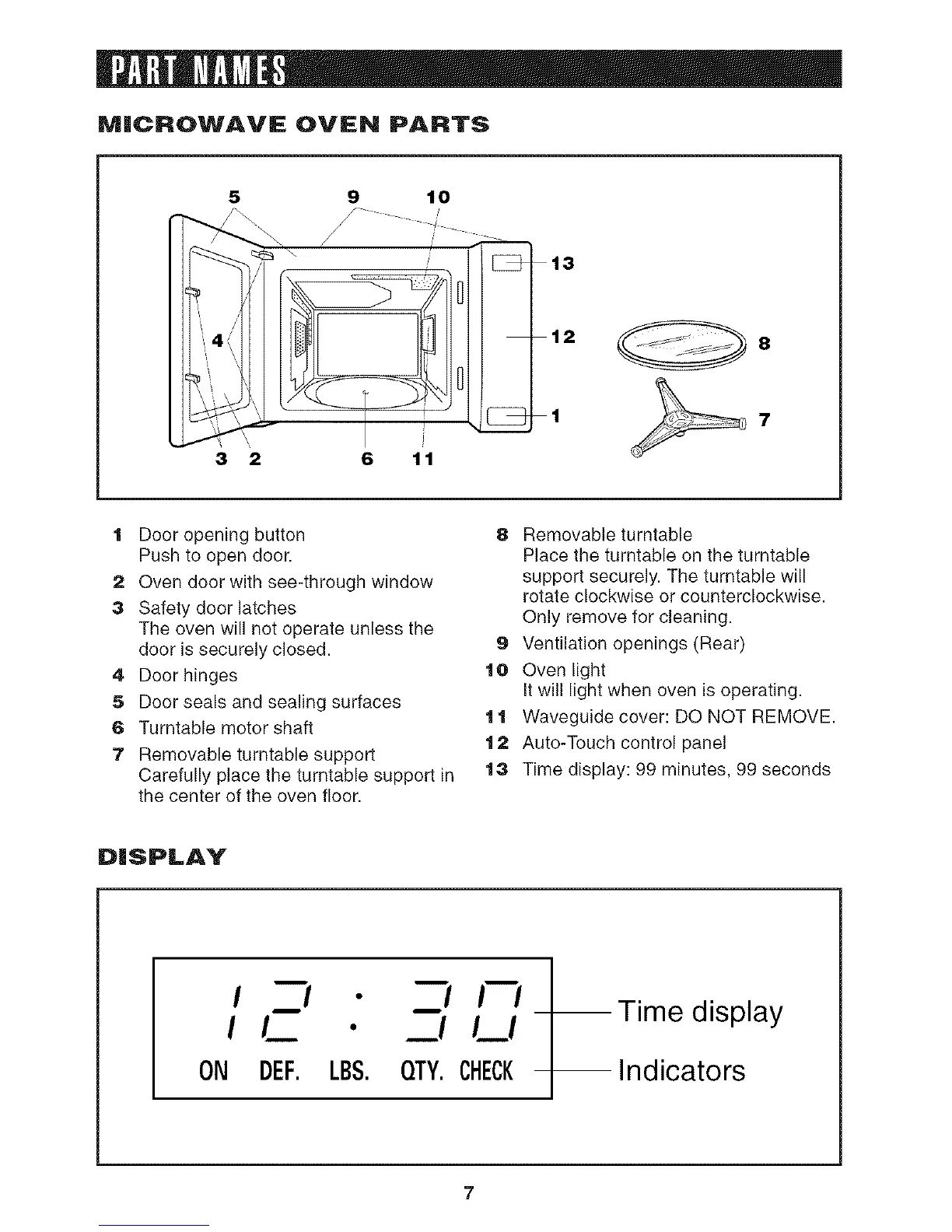

MICROWAVE OVEN PARTS
5
\
1
3 2
9 10
\ \ / /
6 11
13
12
1
1 Door opening button
Push to open door.
2 Oven door with see-through window
3 Safety door latches
The oven will not operate unless the
door is securely closed.
4 Door hinges
5 Door seals and sealing surfaces
6 Turntable motor shaft
7 Removable turntable support
Carefully place the turntable support in
the center of the oven floor.
8 Removable turntable
Place the turntable on the turntable
support securely. The turntable will
rotate clockwise or counterclockwise.
Only remove for cleaning.
9 Ventilation openings (Rear)
10 Oven light
It will light when oven is operating.
11 Waveguide cover: DO NOT REMOVE.
1 2 Auto-Touch control panel
13 Time display: 99 minutes, 99 seconds
DISPLAY
I
I
ON
.
• El
DEF. LBS. QTY. CHECK
Time display
Indicators
