Sharp Carousel SMC1442CS User Manual

9
1 Door latch - When the door is closed, it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron
will automatically shut off.
2 Door seal - The door seal surfaces prevent
microwaves escaping from the oven cavity.
3 Oven cavity
4 Oven lamp - Automatically turns on during
oven operating.
5 Safety interlock system
6 Control panel
7 Door open button - To open the door push
the door open button.
8 Waveguide cover - Protects the microwave
outlet from splashes of cooking foods.
9 Roller guide - This must always be used for
cooking together with the glass cooking tray.
0 Coupler - This fits over the shaft in the
center of the oven cavity floor.
This is to remain in the oven for all cooking.
q Glass cooking tray - Made of special heat
resistant glass. The tray must always be in
proper position before operating. Do not
cook food directly on the tray.
w Viewing screen - Allows viewing of food.
The screen is designed so that light can
pass through, but not the Microwave energy.
12 4
35
6
7
890qw

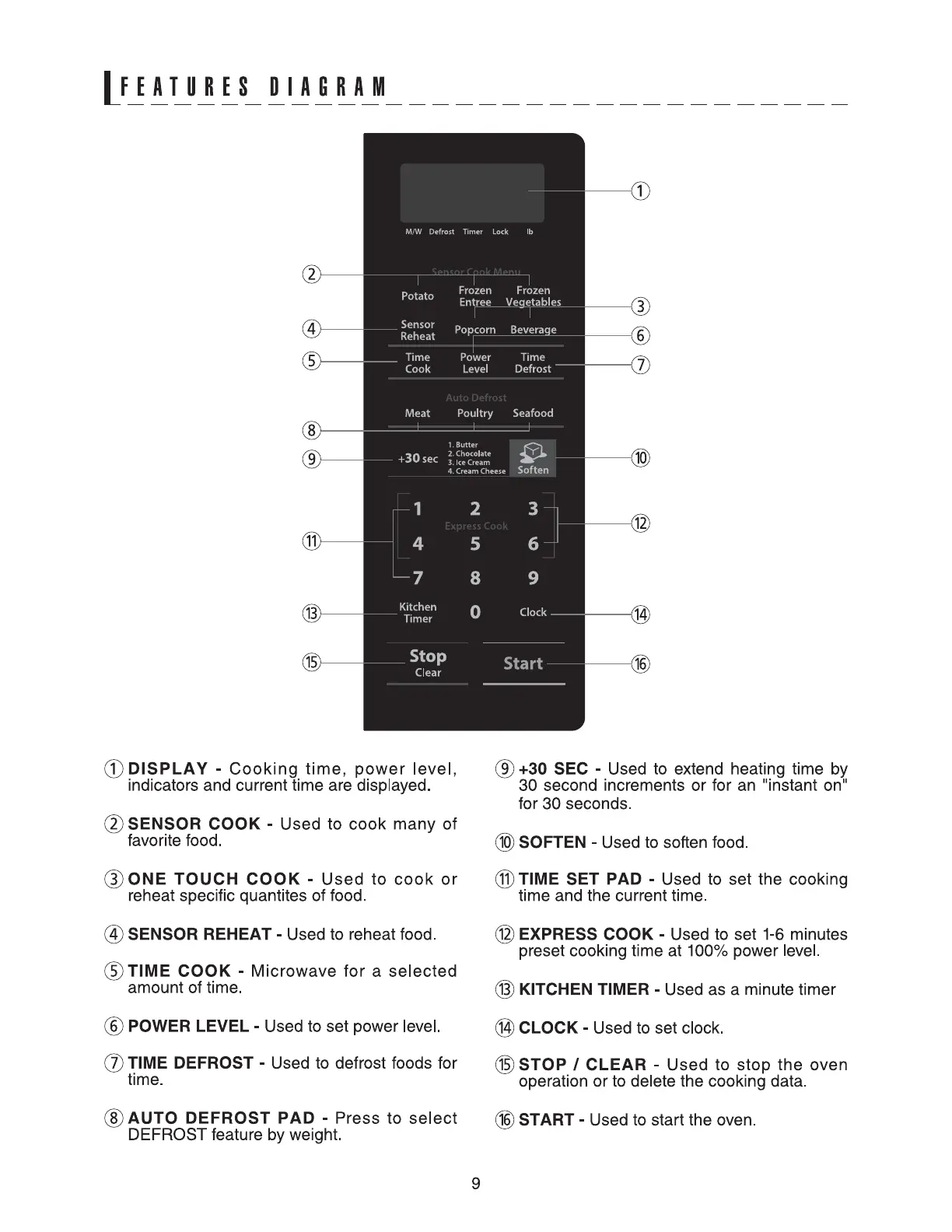

FEATURES DIAGRAM

Sharp Carousel SMC1442CS Specifications

General

Style	countertop
Color	stainless steel
Total Capacity	1.4 cubic feet
Power Levels	10
Sensor Cooking	yes
Child Lock	yes
Timer	yes
Microwave Power	1000 watts
Voltage	120 volts

Weight and Dimensions

Depth	16 1/10 inches
Height	12 2/5 inches
Width	21 3/10 inches
Net Weight	32.8 pounds
