CD-BP160W/180W/1500W/1700W
– 10 –
CP-BP180/1500
1 Woofer/ 1. Front Panel ............ (A1) x1 10-3
Sub Woofer 2. Screw ..................... (A2) x8
2 Tweeter 1. Screw ..................... (B1) x2 10-3
STEP REMOVAL
PROCEDURE
FIGURE

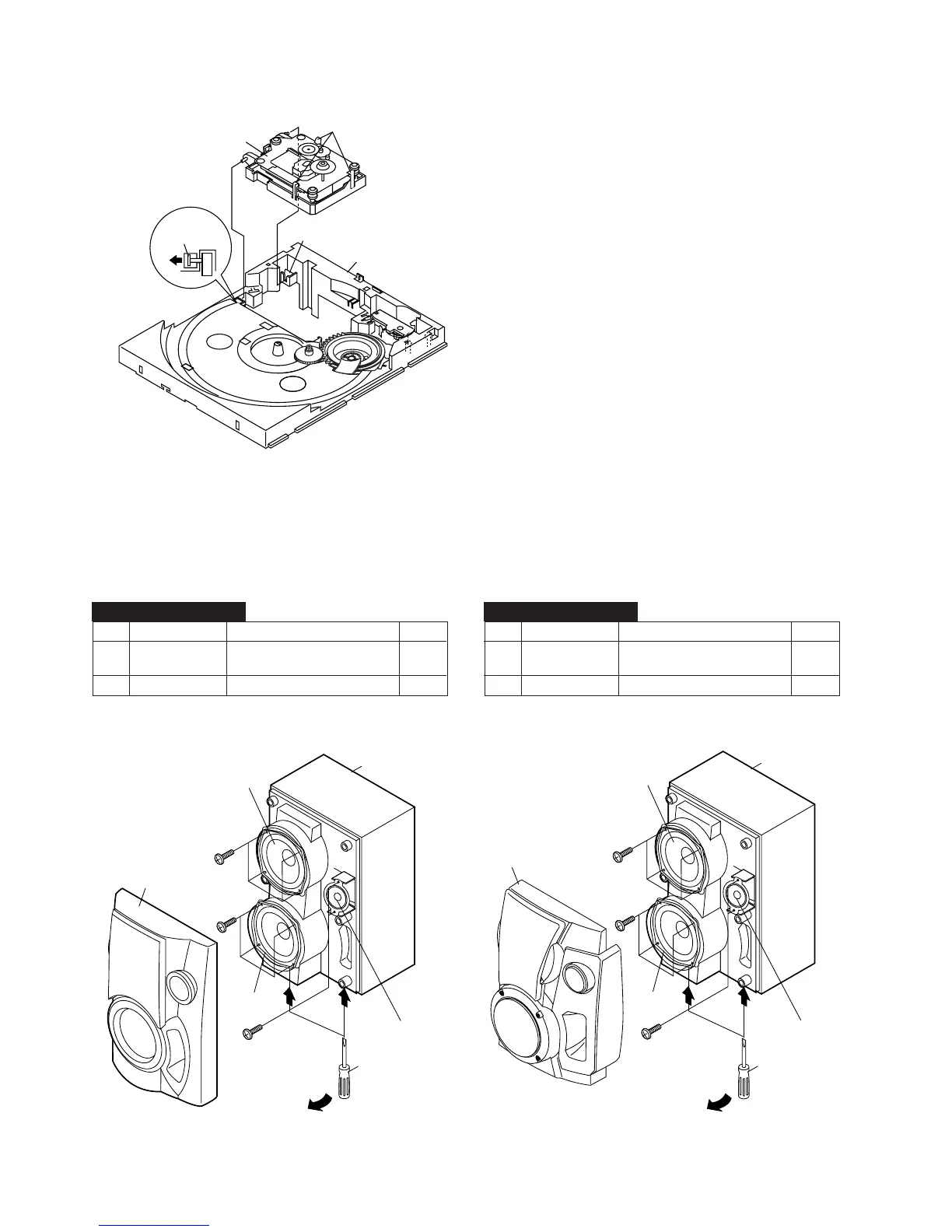

Figure 10-2
Figure 10-1
Figure 10-3
(B1)x2
ø3x10mm
Tweeter
Speaker Box
(A1) x1
Screw
Driver
Driver should
be pried away
from Speaker
Box.
(A2)x4
ø4x12mm
(A2)x4
ø4x12mm
Sub Woofer
Woofer
(B1)x2
ø3x10mm
Tweeter
Speaker Box
Screw
Driver
Driver should
be pried away
from Speaker
Box.
(A2)x4
ø4x12mm
(A2)x4
ø4x12mm
Sub Woofer
Woofer
(A1)x1
(P2)x3
(P1)x1
(P1)x1
CD
Mechanism
Disc Tray
CP-BP1700/160
1 Woofer/ 1. Front Panel ............ (A1) x1 10-2
Sub Woofer 2. Screw ..................... (A2) x8
2 Tweeter 1. Screw ..................... (B1) x2 10-2
STEP REMOVAL PROCEDURE FIGURE
