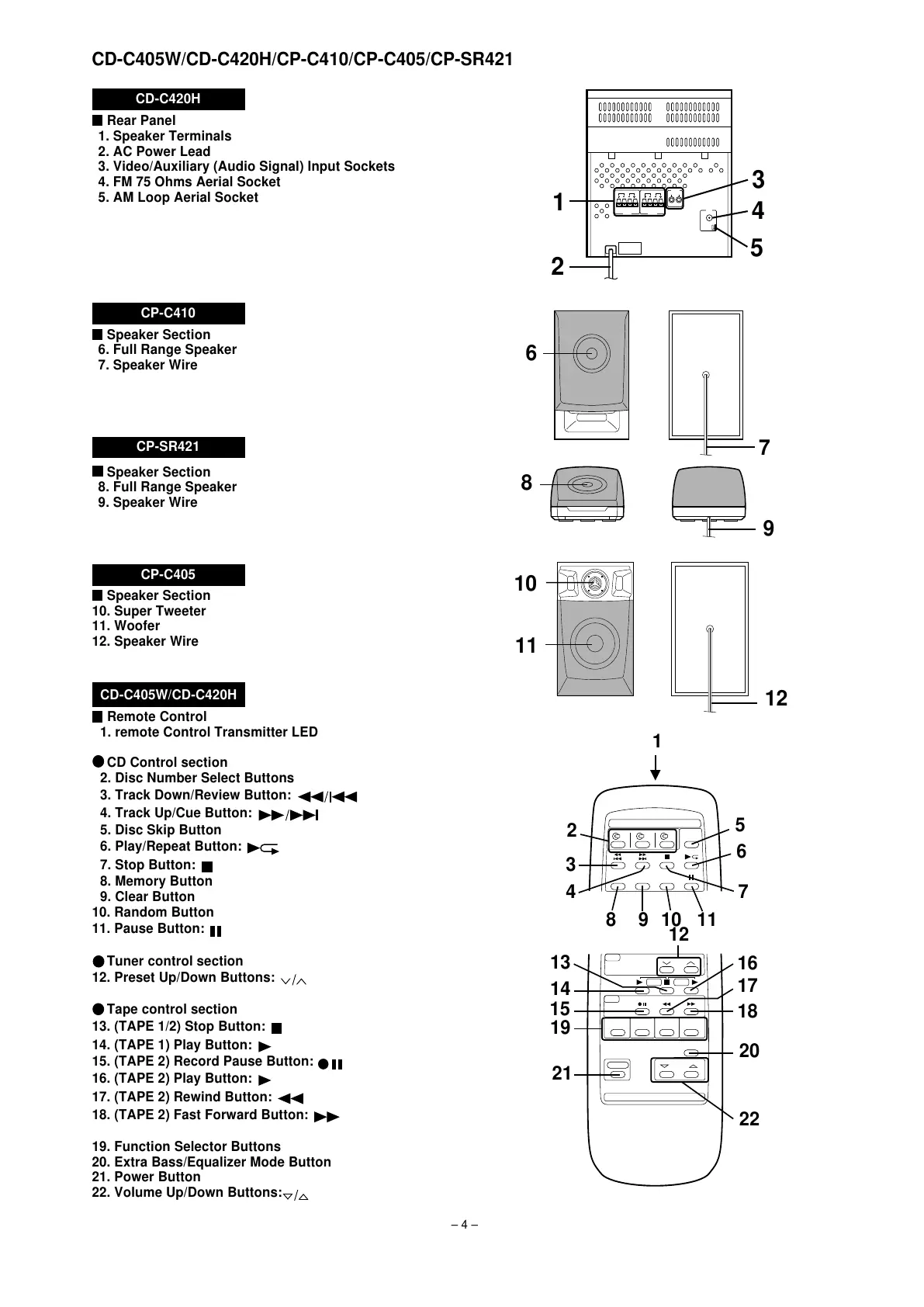

CD-C405W/CD-C420H/CP-C410/CP-C405/CP-SR421
– 4 –
CD-C420H
Rear Panel
1. Speaker Terminals
2. AC Power Lead
3. Video/Auxiliary (Audio Signal) Input Sockets
4. FM 75 Ohms Aerial Socket
5. AM Loop Aerial Socket
1
2
3
4
5
6
7
11
12
10
98
14
13
15
19
22
20
18
17
16
21
CP-C410
Speaker Section
6. Full Range Speaker
7. Speaker Wire
Speaker Section
8. Full Range Speaker
9. Speaker Wire
CP-C405
Speaker Section
10. Super Tweeter
11. Woofer
12. Speaker Wire
Remote Control
1. remote Control Transmitter LED
CD Control section
2. Disc Number Select Buttons
3. Track Down/Review Button:
4. Track Up/Cue Button:
5. Disc Skip Button
6. Play/Repeat Button:
7. Stop Button:
8. Memory Button
9. Clear Button
10. Random Button
11. Pause Button:
Tuner control section
12. Preset Up/Down Buttons:
Tape control section
13. (TAPE 1/2) Stop Button:
14. (TAPE 1) Play Button:
15. (TAPE 2) Record Pause Button:
16. (TAPE 2) Play Button:
17. (TAPE 2) Rewind Button:
18. (TAPE 2) Fast Forward Button:
19. Function Selector Buttons
20. Extra Bass/Equalizer Mode Button
21. Power Button
22. Volume Up/Down Buttons:
CD-C405W/CD-C420H
CP-SR421
1
3
4
5
2
