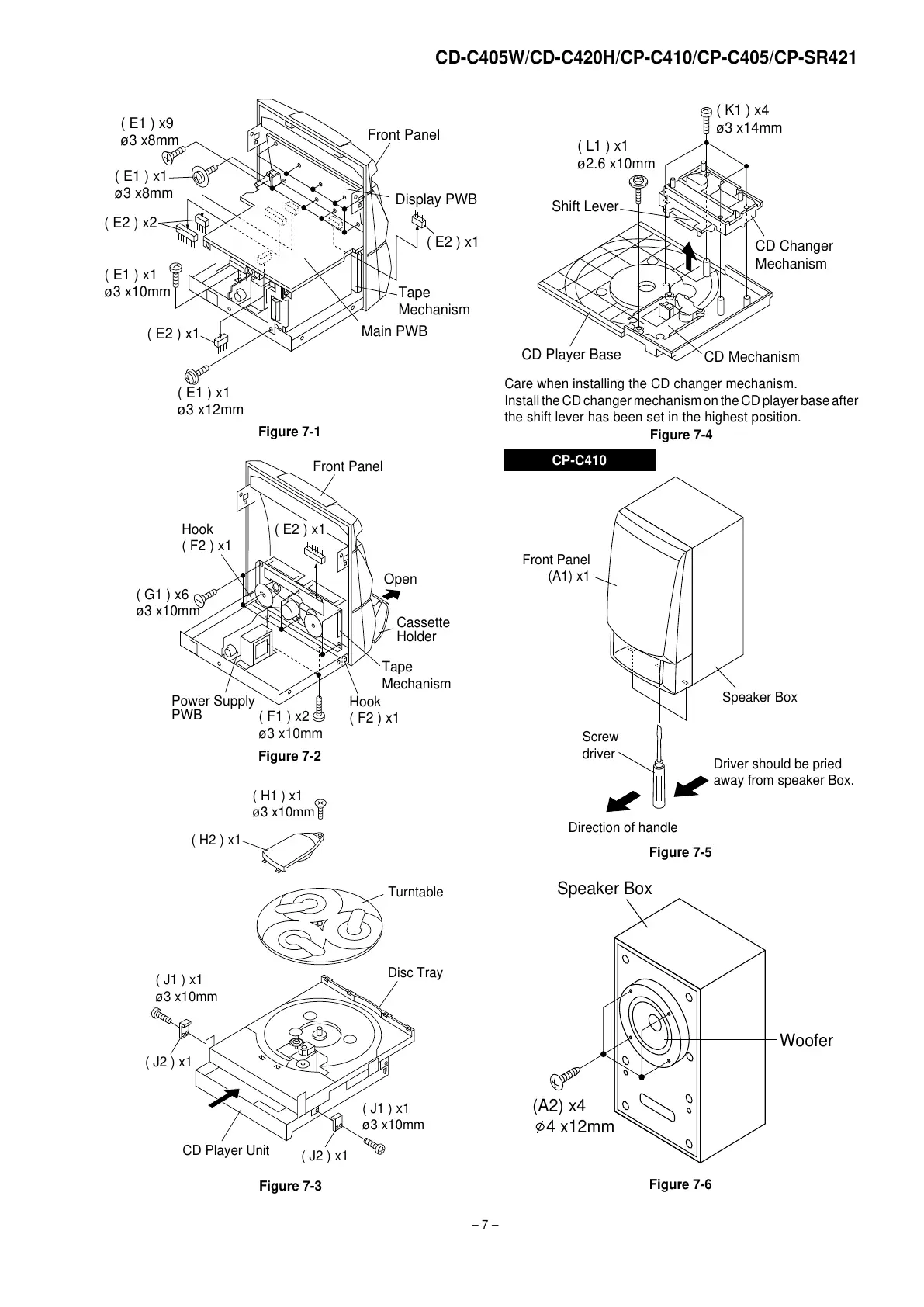

– 7 –
CD-C405W/CD-C420H/CP-C410/CP-C405/CP-SR421
Figure 7-3
Care when installing the CD changer mechanism.
Install the CD changer mechanism on the CD player base after
the shift lever has been set in the highest position.
( J1 ) x1
ø3 x10mm
( J1 ) x1
ø3 x10mm
( H1 ) x1
ø3 x10mm
Turntable
Disc Tray
( H2 ) x1
( J2 ) x1
( J2 ) x1
CD Player Unit
Figure 7-4
Figure 7-6
CP-C410
Figure 7-2
( K1 ) x4
ø3 x14mm
( L1 ) x1
ø2.6 x10mm
CD Changer
Mechanism
CD Mechanism
Shift Lever
CD Player Base
Speaker Box
Woofer
(A2) x4
4 x12mm
Figure 7-5
Front Panel
(A1) x1
Speaker Box
Screw
driver
Driver should be pried
away from speaker Box.
Direction of handle
( E1 ) x1
ø3 x10mm
( E1 ) x1
ø3 x12mm
( E1 ) x9
ø3 x8mm
( E2 ) x1
( E2 ) x1
( E2 ) x2
( E1 ) x1
ø3 x8mm
Front Panel
Tape
Mechanism
Display PWB
Main PWB
Tape
Mechanism
Open
Cassette
Holder
( E2 ) x1
Power Supply
PWB
Front Panel
( G1 ) x6
ø3 x10mm
( F1 ) x2
ø3 x10mm
Hook
( F2 ) x1
Hook
( F2 ) x1
Figure 7-1
