Sharp CD-C470W - Page 18

CD-C407W,CP-C407
– 18 –

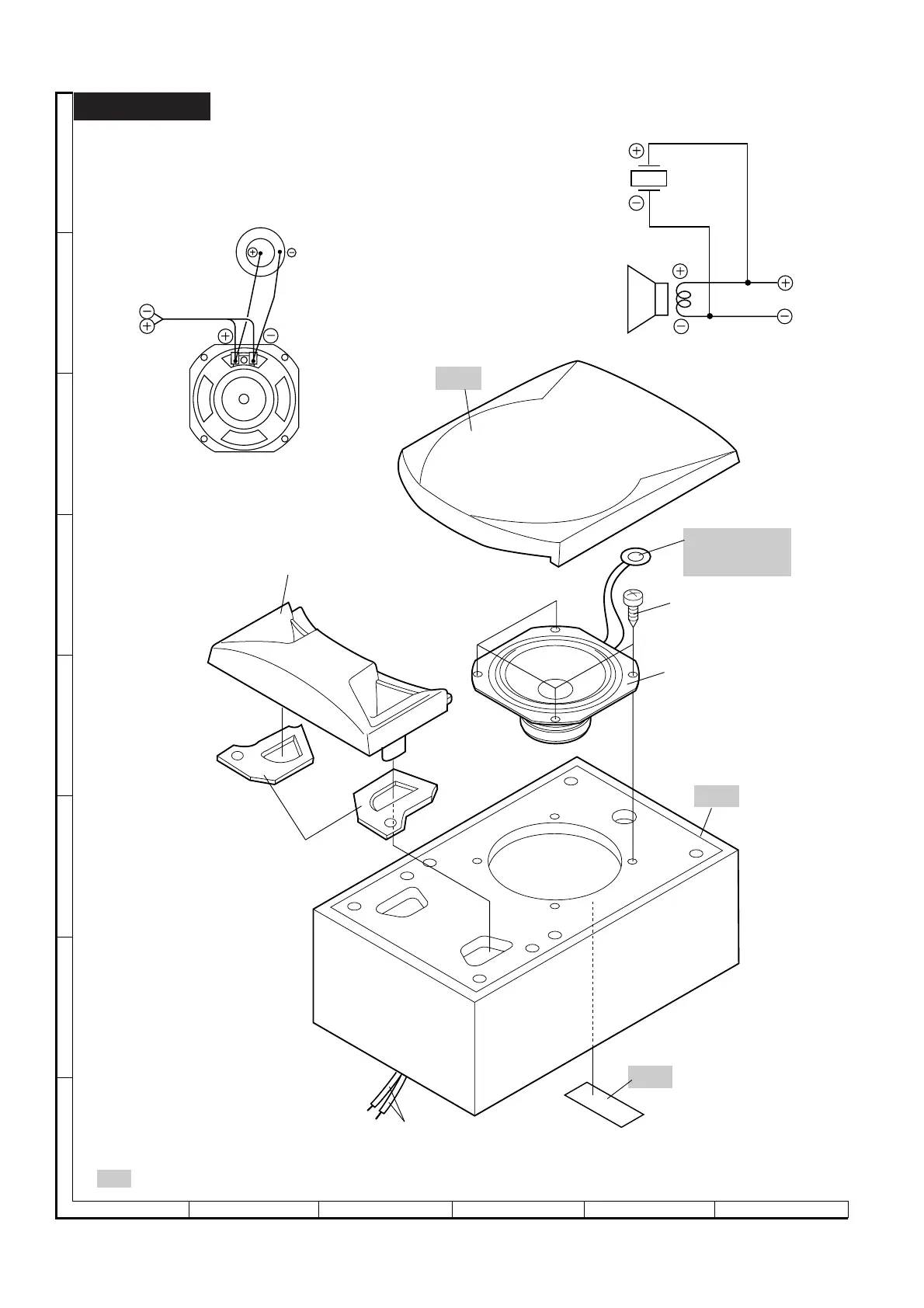

Figure 18 SPEAKER EXPLODED VIEW
A
B
C
D
E
F
G
H
1
23456
CP-C407
705
WOOFER
SUPER TWEETER
SP3 (L-CH)
SP4 (R-CH)
SP3(L-CH)
SP4(R-CH)
SP1(L-CH)
SP2(R-CH)
WOOFER
701
SP1(L-CH)
SP2(R-CH)
707x4
SP1(L-CH)
SP2(R-CH)
703
704x2
702
706
RED
BLACK
BLACK
SUPER
TWEETER
SP3 (L-CH)
SP4 (R-CH)
:Changed PARTS
