Sharp CD-E700H Service Manual

CD-E700H
– 8 –

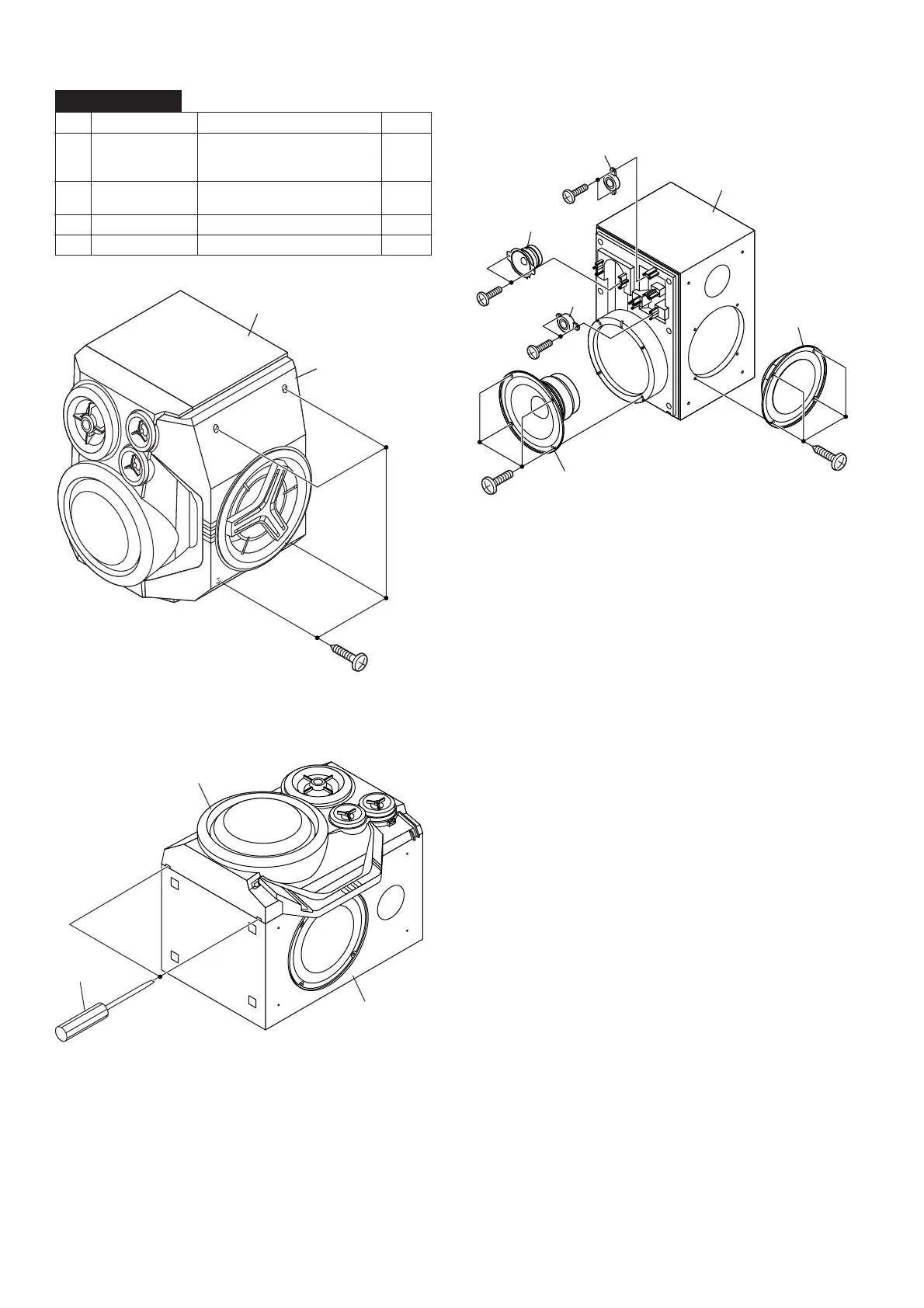

Figure 8-1
Figure 8-3
1 Passive Radiator 1. Screw ...................... (A1) x4 8-1
2. Side Panel .............. (A2) x1
3. Screw ...................... (A3) x4 8-3
2 Woofer 1. Front Panel ............. (B1) x1 8-2
2. Screw ...................... (B2) x4 8-3
3 Tweeter 1. Screw ...................... (C1) x2 8-3
4 Super Tweeter 1. Screw ...................... (D1) x4 8-3
STEP
REMOVAL PROCEDURE FIGURE
(A3)x4
ø4x16mm
(B2)x4
ø4x16mm
(D1)x2
ø3x12mm
(C1)x2
ø3x12mm
(D1)x2
ø3x12mm
Speaker Box
Woofer
Tweeter
Super Tweeter
Super Tweeter
Passive
Radiator
(A1)x4
ø4x40mm
Speaker Box
(A2)x1
Screwdriver
Driver should
be pried away
from Speaker Box.
(B1)x1
Speaker Box
Figure 8-2
CP-E700H
