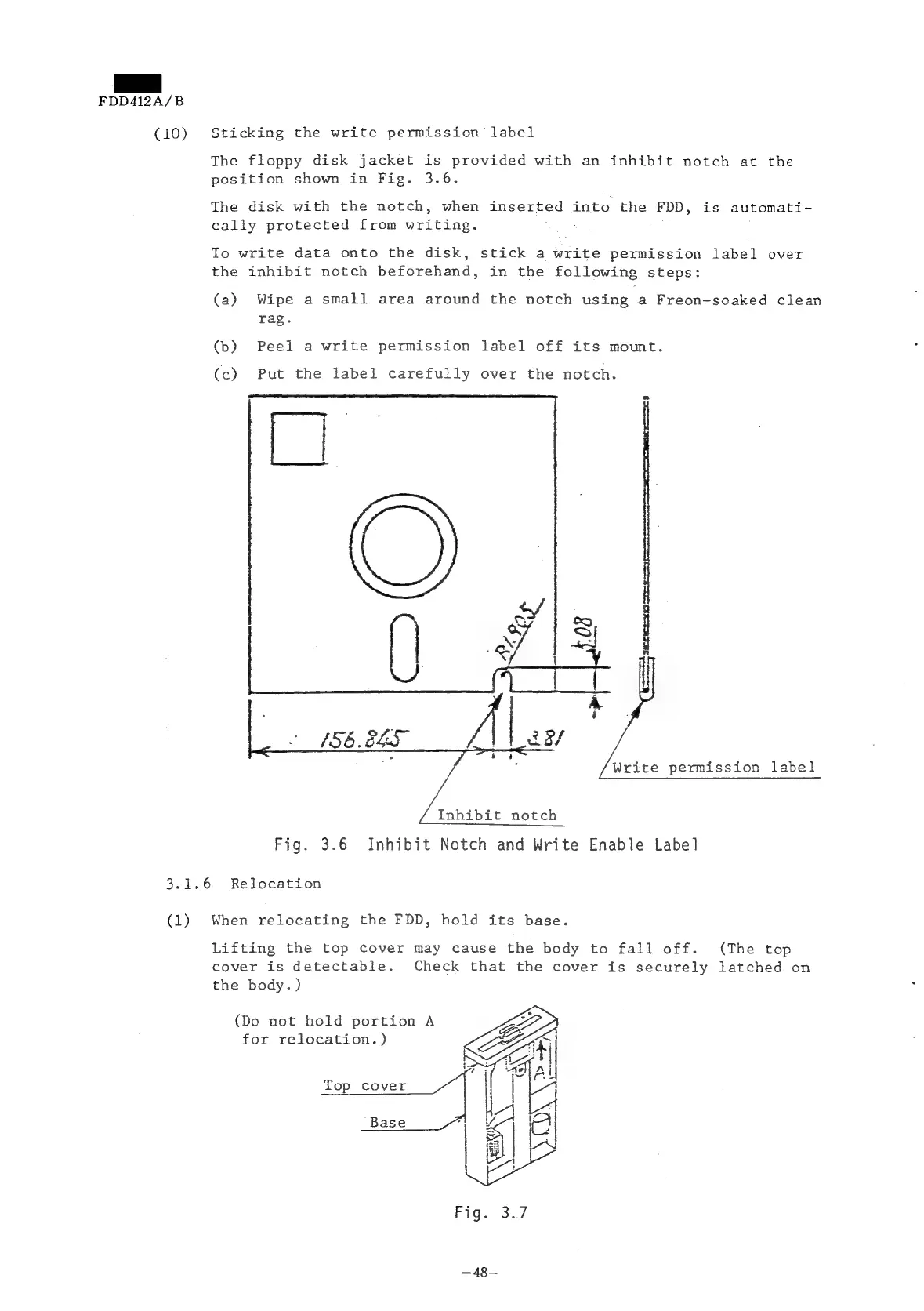

Sharp FDD-412A - Page 54

FDD412A/B
(10) Sticking the write permission label
The floppy disk jacket is provided with an inhibit notch at the
position shown in Fig. 3.6.
The disk with the notch, when inserted into the FDD, is automati-
cally protected from writing.
To write data onto the disk, stick a write permission label over
the inhibit notch beforehand, in the following steps:
(a) Wipe a small area around the notch using a Freon-soaked clean
rag.
(b) Peel a write permission label off its mount.
(c) Put the label carefully over the notch.
(56 E45 } td
7 . Write permission label
Inhibit notch
Fig. 3.6 Inhibit Notch and Write Enable Label
3.1.6 Relocation
(1) When relocating the FDD, hold its base.
Lifting the top cover may cause the body to fall off.
cover is detectable.
the body.)
(The top
Check that the cover is securely latched on
(Do not hold portion A
for relocation.)
Top cover a
Base ra
