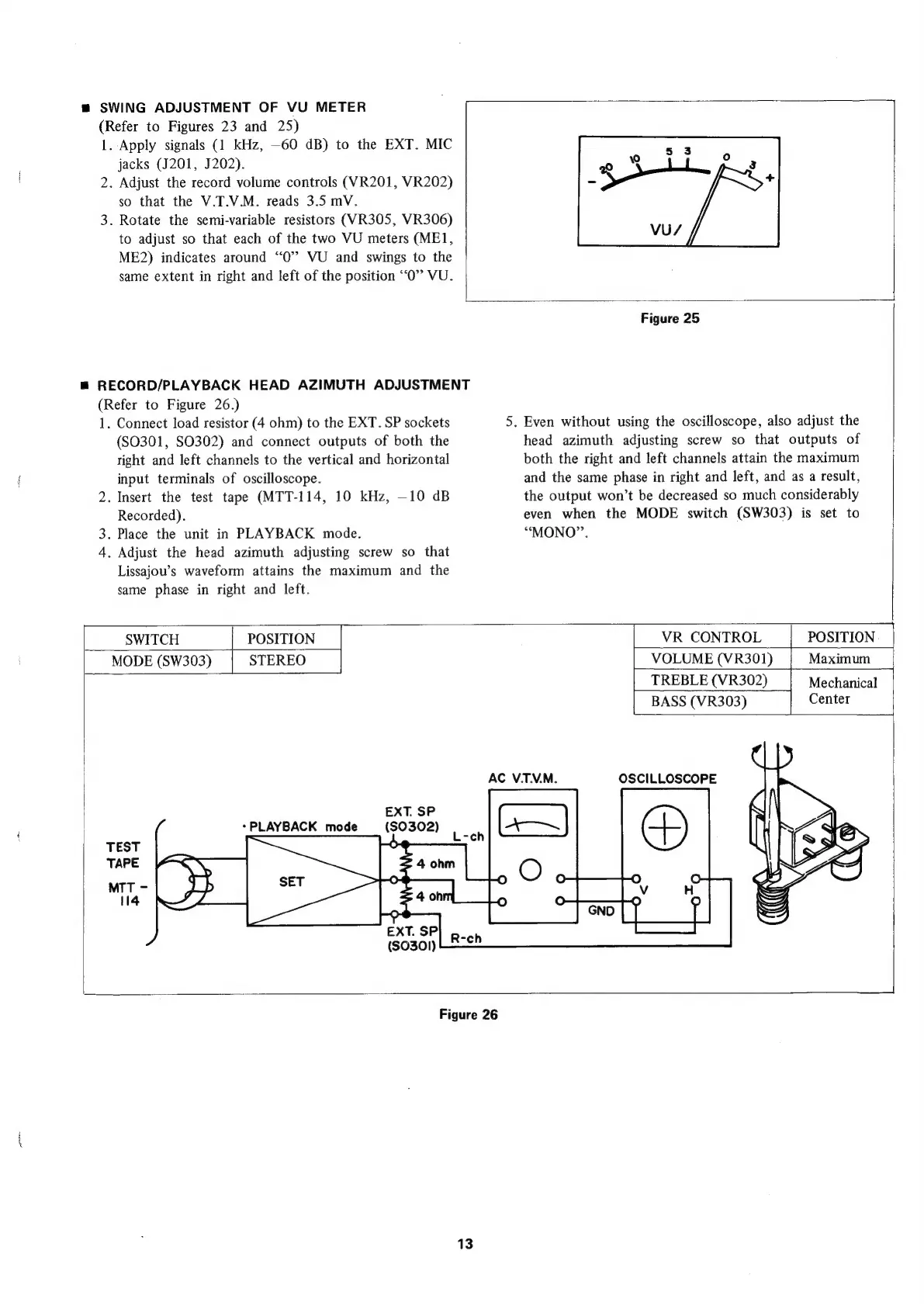

ws
SWING
ADJUSTMENT
OF
VU
METER
(Refer
to
Figures
23
and
25)
1.
Apply
signals
(1
kHz,
—60
dB)
to
the
EXT.
MIC
jacks
(J201,
J202).
2.
Adjust
the
record
volume
controls
(VR201,
VR202)
so
that
the
V.T.V.M.
reads
3.5
mV.
3.
Rotate
the
semi-variable
resistors
(VR305,
VR306)
to
adjust
so
that
each
of
the
two
VU
meters
(ME1,
ME2)
indicates
around
“0”
VU
and
swings
to
the
same
extent
in
right
and
left
of
the
position
‘‘0”
VU.
RECORD/PLAYBACK
HEAD
AZIMUTH
ADJUSTMENT
(Refer
to
Figure
26.)
1.
Connect
load
resistor
(4
ohm)
to
the
EXT.
SP
sockets
(SO301,
SO302)
and
connect
outputs
of
both
the
right
and
left
channels
to
the
vertical
and
horizontal
input
terminals
of
oscilloscope.
2.
Insert
the
test
tape
(MTT-114,
10
kHz,
—10
dB
Recorded).
3.
Place
the
unit
in
PLAYBACK
mode.
4.
Adjust
the
head
azimuth
adjusting
screw
so
that
Lissajou’s
waveform
attains
the
maximum
and
the
same
phase
in
right
and
left.
Figure
25
5.
Even
without
using
the
oscilloscope,
also
adjust
the
head
azimuth
adjusting
screw
so
that
outputs
of
both
the
right
and
left
channels
attain
the
maximum
and
the
same
phase
in
right
and
left,
and
as
a
result,
the
output
won’t
be
decreased
so
much
considerably
even
when
the
MODE
switch
(SW303)
is
set
to
“MONO”.
SWITCH
POSITION
MODE
(SW303)
|
STEREO
EXT.
SP
*PLAYBACK
mode
(SO302)
AC
V.T.V.M.
VR
CONTROL
VOLUME
(VR301)
TREBLE
(VR302)
BASS
(VR303)
POSITION
Maximum
Mechanical
Center
OSCILLOSCOPE
Figure
26
13
