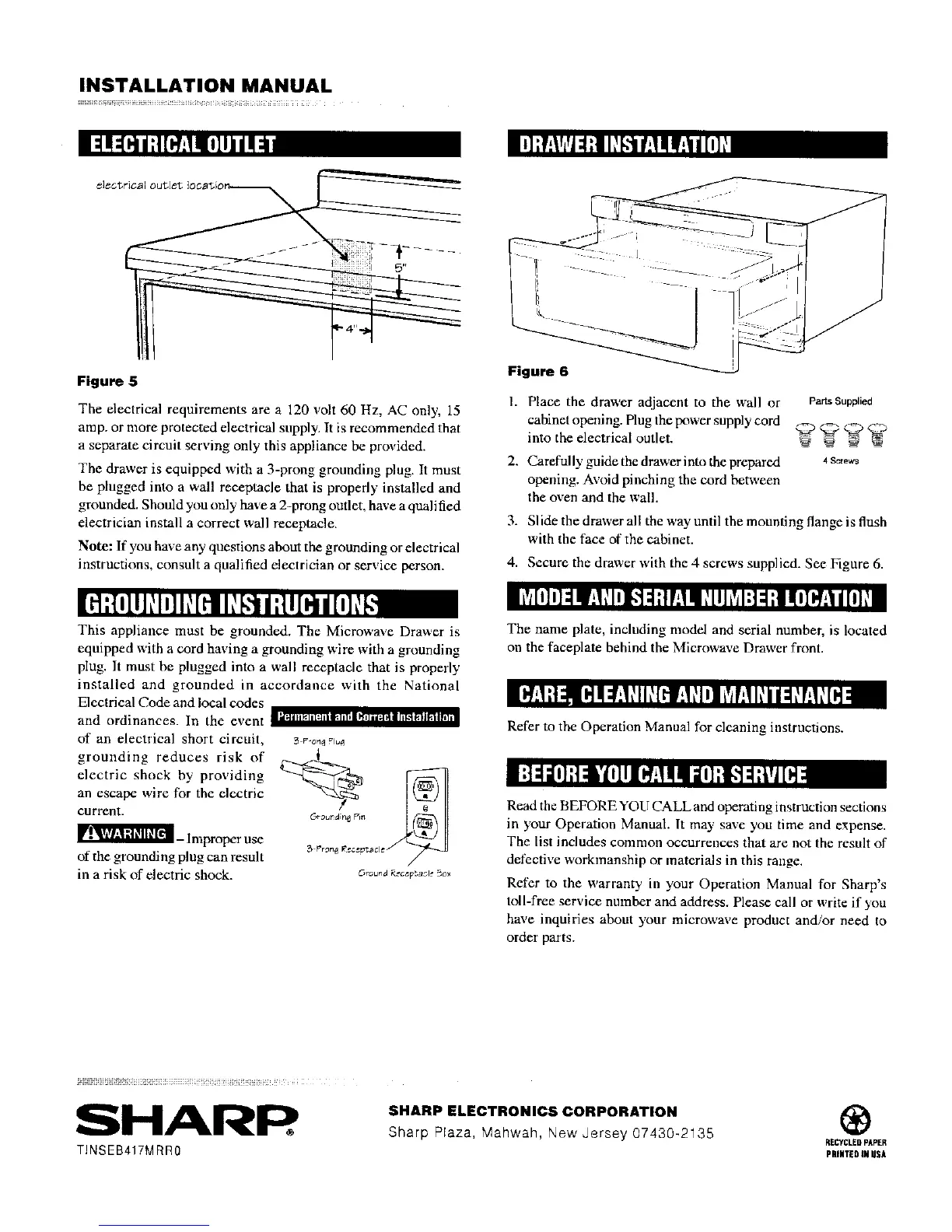

INSTALLATION MANUAL
i]L_][l']l]l]][*l"_]_[t]l_ l :kd
Figure 5
The electrical requirements are a 120 volt 60 Hz, AC only, 15
amp. or more protected electrical supply. It is recommended that
a separate circuit serving only this appliance be provided.
The drawer is equipped with a 3-prong grounding plug. It must
be plugged into a wall receptacle that is properly installed and
grounded. Should you only have a 2-prong outlet, have a quail fled
electrician install a correct wall receptacle.
Note: If you ha_e any questions about the grounding or electrical
instructions, consult a qualified electrician or service person.
Figure 6
l. Place the drawer adjacent to the wall or PartsSupplied
cabinetopening. Plugthepowersupplycord _ _ ___
into the electrical outlet. _ _: _
2. Carefully guide the drawer into the prepared 4s°r_s
opening. Avoid pinching the cord between
the oven and the wall.
3. Slide the drawer all the way until the mounting flange is flush
with the face of the cabinet.
4. Secure the drawer with the 4 screws supplied. See Figure 6.
This appliance must be grounded. The Microwave Drawer is
equipped with a cord having a grounding wire with a grounding
plug. It must be plugged into a wall receptacle that is properly
installed and grounded in accordance with the National
Electrical Code and local codes
and ordinances. In the event ild_lll_llI_ti_'_tlld_i_l_l|fli_
of an electrical short circuit,
grounding reduces risk of
electric shock by providing
an escape wire for the electric
current.
_- Improper use
of the _'ounding plug can result
in a risk of electric shock.
3 P_ong Plu_
/
_round R_cepta_l_ _ox
The name plate, including model and serial number, is located
on the faceplate behind the Microwave Drawer front.
Refer to the Operation Manual for cleaning instructions.
Read the BEFORE YOU CALL and operating instruction sections
in )our Operation Manual. It may save you time and expense.
The list includes common occurrences that are not the result of
defective workmanship or unaterials in this range.
Refer to the warranty ill ),our Operation Manual for Sharp's
toll-free service number and address. Please call or write if 3ou
have inquiries about your microwave product and/or need to
order parts.
SHARP
TINSEB417MRRO
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430-2135
®
RECYCLEDPAPER
PRINTEDtN gSi
