To AV-IN 1 or 2 terminal

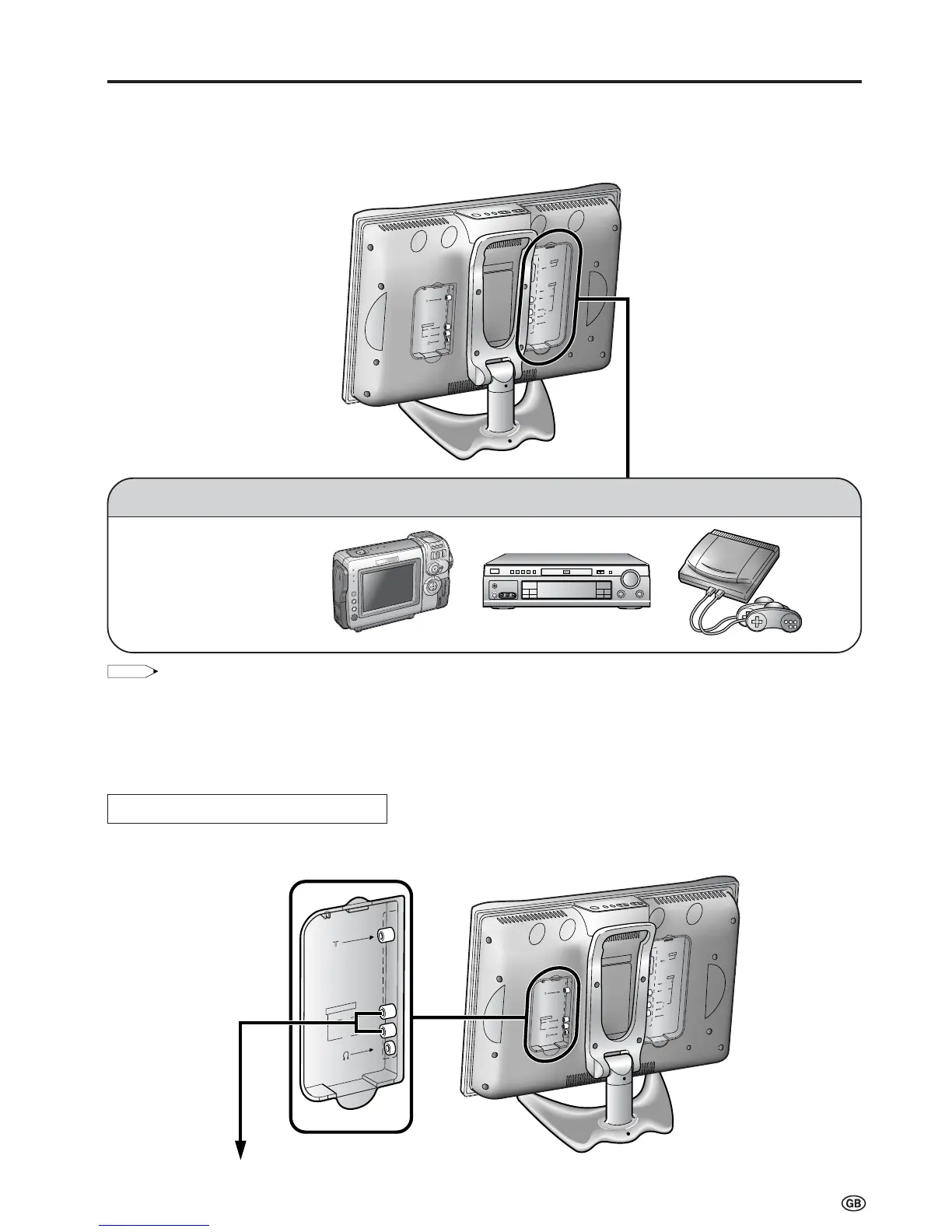

Examples of external devices that can be connected
• Video camera
• Home video game system
• VCR
• Laser disc player
• DVD
• Decoder
* PC connection is not possible.
Note:
Note:
• Use a commercially available audio/video cord for the cable.
• Only connect audio/video signals to AV-IN 1 and 2 terminals. Connecting other signals may result in a malfunction.
• The VIDEO input terminal and the S-VIDEO input terminal on the AV-IN 2 side are shared connections with priority given to the S-VIDEO
terminal. If both terminals are connected, the video signals from the S-VIDEO input terminal are selected for the AV-IN 2 input.
When viewing video from the VIDEO input terminal, do not connect anything to the S-VIDEO input terminal.
• For details concerning usage and connection of external devices, see the respective instruction manuals.
Outputting audio (AUDIO OUT)
It is possible to output audio from the LCD TV set through the AUDIO OUT terminals.
Connecting External Devices
It is possible to enjoy video and sound by connecting a VCR and home video game system to the terminals located on the
rear of the main unit.
When connecting an external device, turn off the power of the main unit and connecting device to prevent any possible
damage.
Connect an audio amplifier, etc.
L
R
AU
D
IO
O
U
T
L
R
AV-IN 1
RGB
AV-IN 2
S-VIDEO
VIDEO
L
R
AUDIO
POWER
INPUT
DC13V
