6

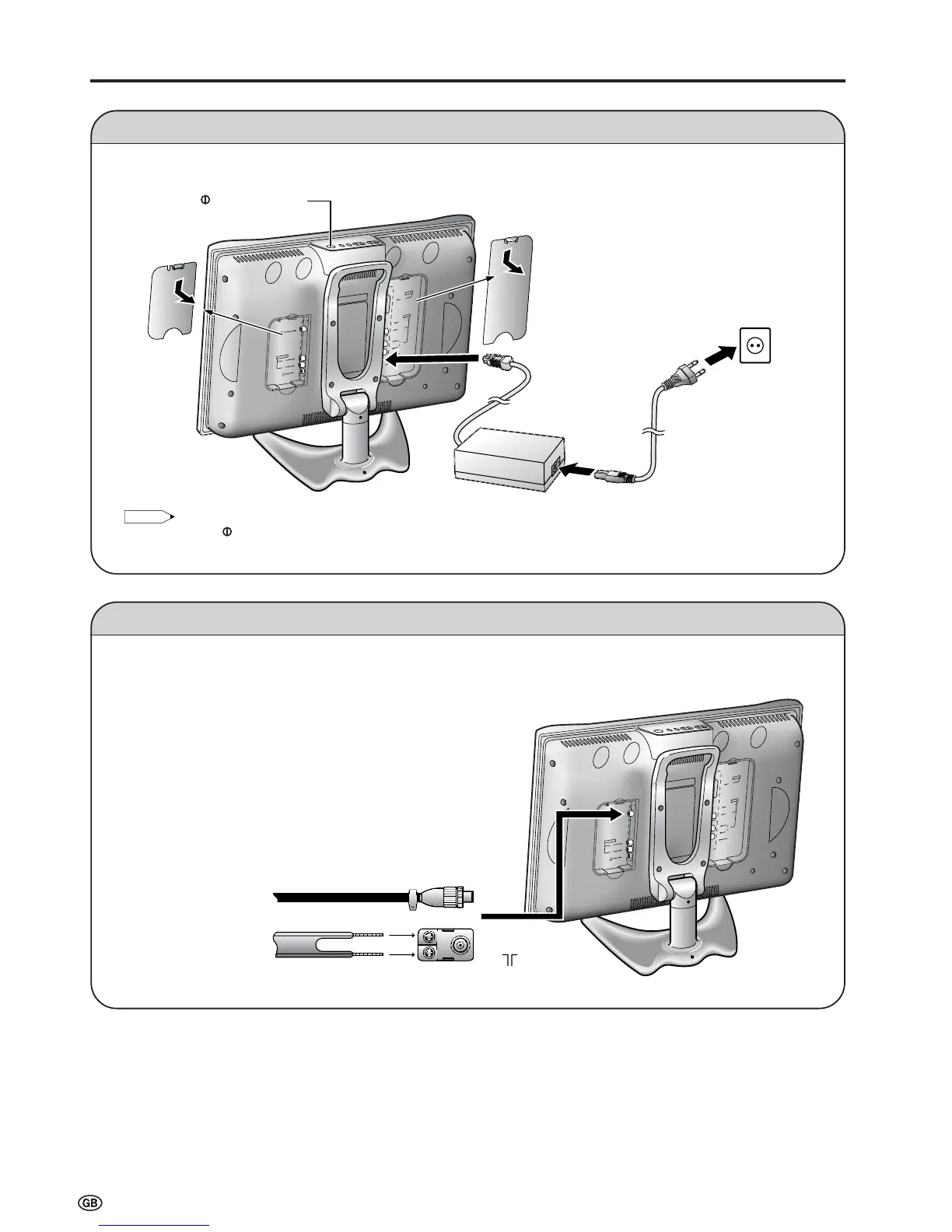

Power Connection
Preparation (Continued)
Antenna Connection
Connect to the DC input terminal of the product.
To enjoy a clearer picture, we recommend that you use an
outdoor antenna. The following is a brief explanation of the
types of connection that are used for coaxial and feeder cables:
(1)If your outdoor antenna uses a 75-ohm coaxial cable,
change this for a new standard DIN45325 (IEC169-2) plug
and plug it into the antenna terminal at the back of TV set
via the antenna cable (not supplied).
(2)If your outdoor antenna uses a 300-ohm twin-lead flat
feeder, change this for a 300-ohm to 75-ohm impedance
converter and plug it into the antenna terminal at the back
of TV set via the antenna cable (not supplied).
75-ohm coaxial cable (round cable)
300-ohm twin-lead flat feeder
To POWER INPUT
terminal
Plug into an AC outlet.
AC cord
*
AC adapter
* Product shape varies in some countries.
To antenna
input terminal
(
)
Pull down the
hook to open
the cover.
Note:
Note:
• Always turn the
(MAIN POWER) switch of the LCD TV set to OFF when connecting the AC adapter.
• Unplug the AC adapter from the LCD TV set and power outlet when the LCD TV set is not to be used for a long period of time.
Household
power outlet
Pull down the
hook to open
the cover.
(MAIN POWER)
L
R
AV-IN 1
RGB
AV-IN 2
S-VIDEO
VIDEO
L
R
AUDIO
POWER
INPUT
DC13V
L
R
AV-IN 1
RGB
AV-IN 2
S-VIDEO
VIDEO
L
R
AUDIO
POWER
INPUT
DC13V
