Sharp LC-32CFE6242E Service Manual

86
B Upgrade Prompt

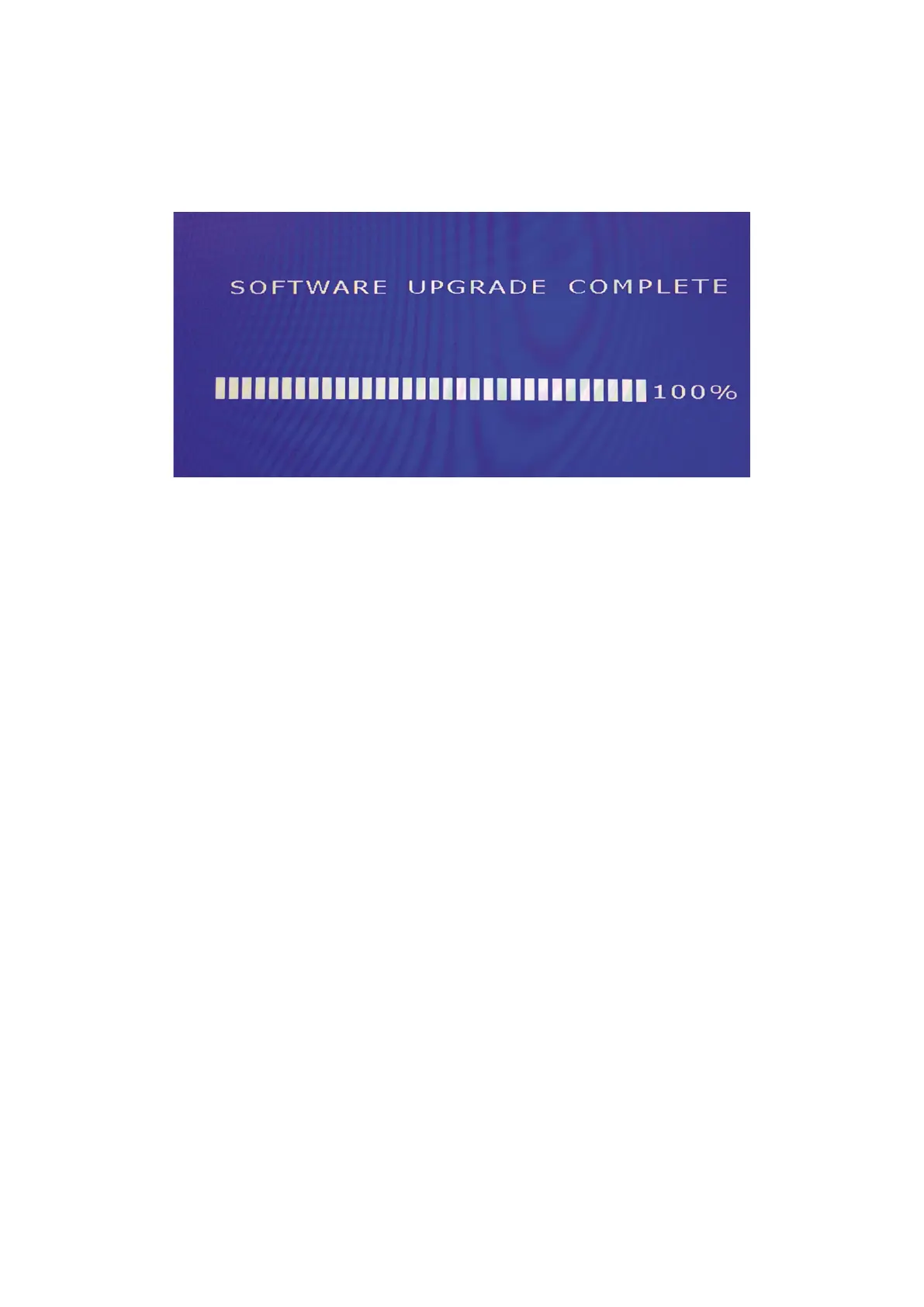

When upgrading, the TV set will light panel according to the panel parameter, and display the
progress bar. If the panel parameter of board matches the panel, you will see the following
image:
C Upgrade Flashing Status
You can judge the upgrade progress by ashing of the remote control LED light.
Upgrading
Red 1000ms Green1000ms alternates, the TV set will turn to Upgrade succeed or Upgrade Failed
status after the upgrading process.
Main program upgrade succeed
Red 250ms Green 250ms alternates, ashing before power o.
Main program upgrade Failed
Red 1750ms Green 250ms alternates, ashing before power o.
• Notes:
• In the upgrade process, as timer software is used to control ashing, situations such as LED
light stuck when creating partition of ash, is normal phenomenon.
6.3 Power On Upgrade
A Operation Procedure
• Power O the TV set
• Copy AllUpgrade_6308XXX.bin to the root directory of your USB memory stick
• Plug the USB device to the USB port
• Power on the TV, if the upgrade le name matches the main chipset, the LED light will
ashing and the upgrade process starting. The TV set won’t auto reboot after nishing the
upgrade process, customer should pull the USB out and power o the TV set manually.
100% indicates the upgrade nished.
TV will auto reboot after user menu upgrading nished.

Sharp LC-32CFE6242E Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	32 \
Display brightness	280 cd/m²
Display technology	LED
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	1000000:1
Display diagonal (metric)	81 cm
Motion interpolation technology	Active Motion 400
3D	No
Voltage tolerance	20 %
Supported file systems	FAT16, FAT32, NTFS
Annual energy consumption	45 kWh
Audio system	B/G, D/K, I, L NICAM/A2
Audio decoders	Dolby Digital, DTS 2.0, DTS TruSurround, Dolby Digital Plus
RMS rated power	8 W
Number of speakers	2
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
DVI port	-
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Consumer Electronics Control (CEC)	Aquos Net+
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Video apps	YouTube
Lifestyle apps	Facebook, Twitter
Audio formats supported	AAC, AC3, EAC3, M4A, MP3, WMA
Image formats supported	BMP, JPEG XR, JPG, PNG
Video formats supported	ASF, AVI, FLV, M2TS, M4V, MKV, MP4, MPG, RM, RMVB, SWF, TS, VOB, WMV
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	70 W
Power consumption (standby)	0.5 W
Power consumption (typical)	45 W
Power consumption (PowerSave)	31 W
Certification	CE (EMC), CB (Safety), ErP (Energy)
Product color	Black
Panel mounting interface	400 x 200 mm

Weight and Dimensions

Depth (with stand)	168 mm
Height (with stand)	461.3 mm
Weight (with stand)	4500 g
Depth (without stand)	68.3 mm
Width (without stand)	728.3 mm
Height (without stand)	425.9 mm
Weight (without stand)	4300 g
