Sharp LC-32CHE5111K

1717

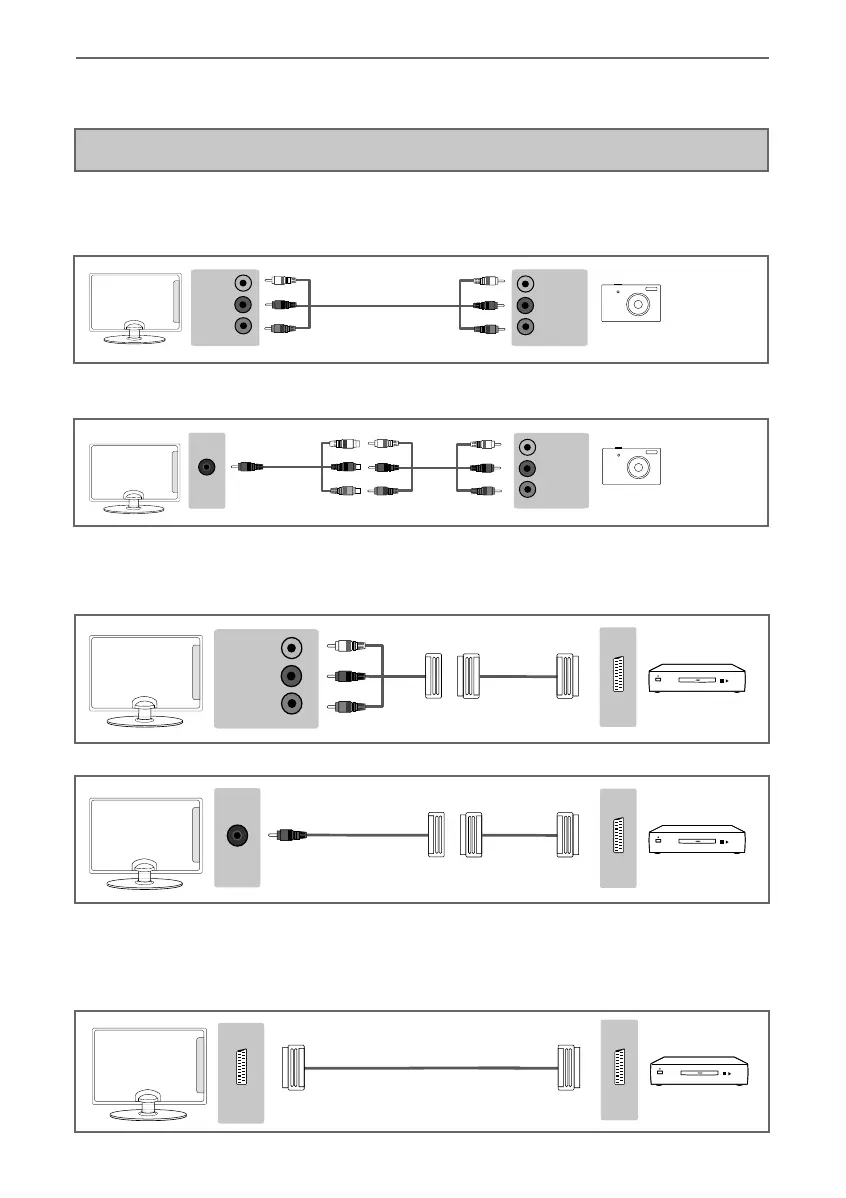

Connecting to a device with Composite AV/Video output
TV source should be set to Composite/AV
Connection option for LC-32CFE5111K, LC-32CFE5111KW, LC-32DHE5111K and LC-32DHE5111KW models only.
Connection option for models only LC-32CHE5111K, LC-32CHE5111KW, LC-40CFE5111K, LC-43CFE5111K,
LC-49CFE5001K, LC-50CFE5111K and LC-50CFE5101K models only.
Connection option for LC-49CFE5001K and LC-50CFE5101K models only
Mini
AV in
L (white)
R (red)
Video
(yellow)
L (white)
R (red)
Video
(yellow)
L (white)
R (red)
Video
(yellow)
Connections
CONNECTIONS
Connecting to a device with SCART output (using SCART to AV cable)
TV source should be set to Composite/AV
Option for
LC-32CFE5111K, LC-32CFE5111KW, LC-32DHE5111K and LC-32DHE5111KW models only
Connecting to a device with SCART output
TV source should be set to SCART
Connection option for LC-32CHE5111K, LC-32CHE5111KW, LC-40CFE5111K, LC-43CFE5111K and
LC-50CFE5111K models only:
Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is
Included In The Box’ page.
Scart
L (white)
R (red)
Video
(yellow)
Scart
Mini
AV in
Scart
Scart
