Sharp LC-32CHE5111K

18
Connection option for models only LC-32CHE5111K, LC-32CHE5111KW, LC-40CFE5111K, LC-43CFE5111K,
LC-49CFE5001K, LC-50CFE5111K and LC-50CFE5101K models only.

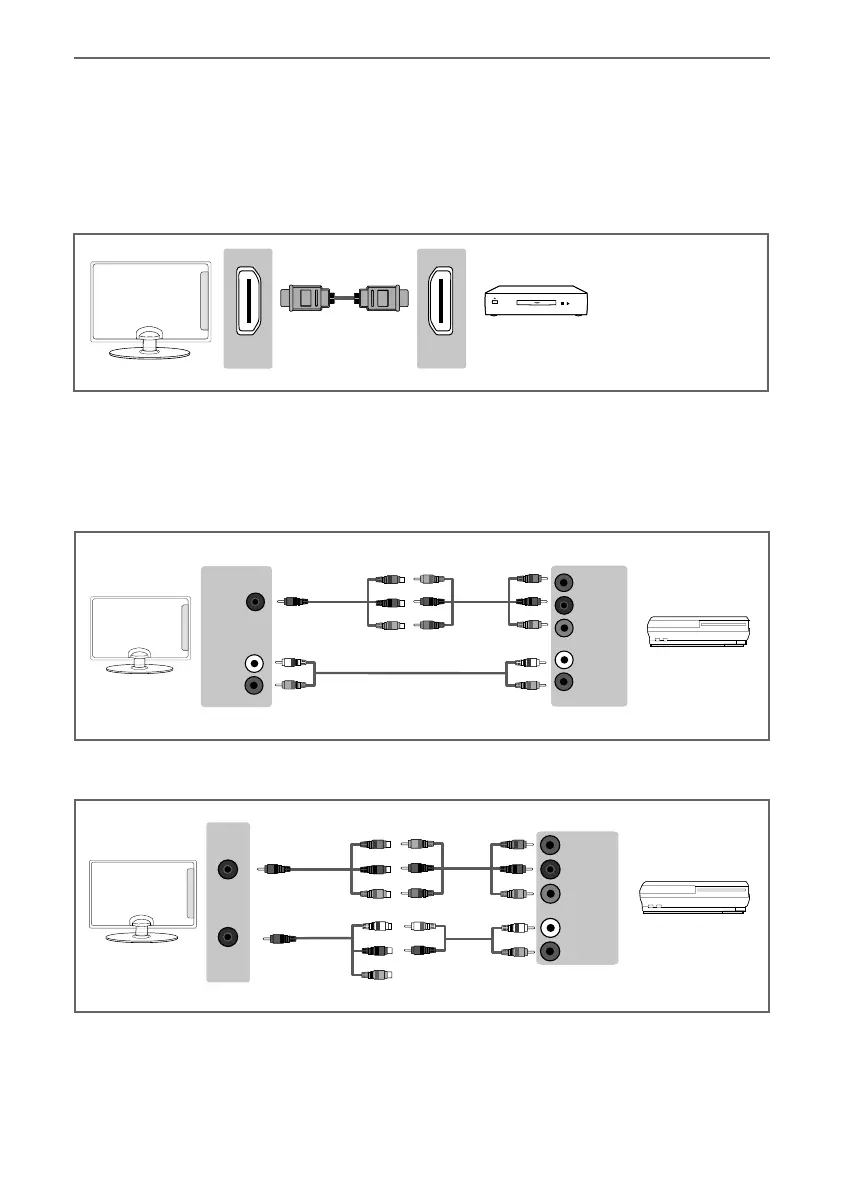

Connecting to a device with HDMI output
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio
with minimal loss of quality.
TV source should be set to the corresponding HDMI port (HDMI 1, HDMI 2 etc)
HDMI HDMI
Connections
CONNECTIONS
Connecting to a device with Component/YPbPr output
If you are supplied with a cable from the device which has red, green, blue, red and white connectors you
must connect via Component (for picture) and by phono cable (for sound).
TV source should be set to Component/YPbPr
Connection option for LC-32CFE5111K, LC-32CFE5111KW, LC-32DHE5111K and LC-32DHE5111KW models only.
Mini
AV in
Mini
YPbPr
Y (green)
PB (blue)
PR (red)
Video (yellow)
is not connected
R (red)
L (white)
R (red)
L (white)
Mini
YPbPr
Y (green)
PB (blue)
PR (red)
R (red)
L (white)
