14

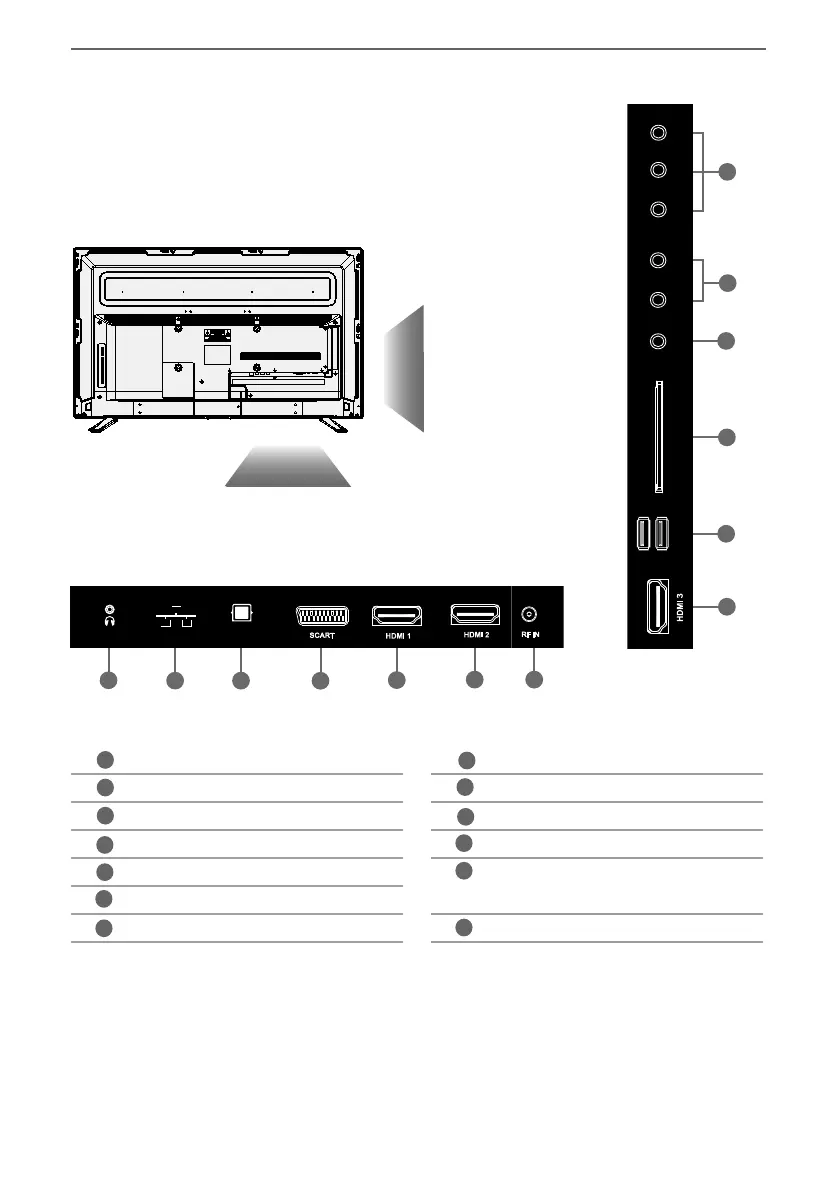

CONNECTIONS
Connections
A
D
E
H
I
J
K
L
M
F
G
B
EARPHONE Earphone socket
LAN* Network connection
Digital audio Digital optical audio output
SCART SCART input
HDMI 1 (ARC) HDMI input
HDMI 2 HDMI input
RF IN RF/TV Aerial Input
HDMI 3 HDMI input
USB x 2 USB port
CI card in Common interface module
Video Composite Video/CVBS input
YPbPr HD input (Ypbpr)
A
K
J
B
L
I
C
M
D
E
F
G
H
L/R Audio shared for
Composite Video/CVBS and
component/YPbPr
L/R
Digital Audio
Output
EthernetEarphone
CI CARD IN
Video
USB
R
L
Y
Pb
Pr
C
*The LAN/Ethernet port is used for Freeview HD services.
Input/Outputs for the 32” models only.
