Sharp LC-32LD145E - Diagrams and Boards; Wiring and Schematic Diagrams

63
LC-32LD145
LC-39LD145

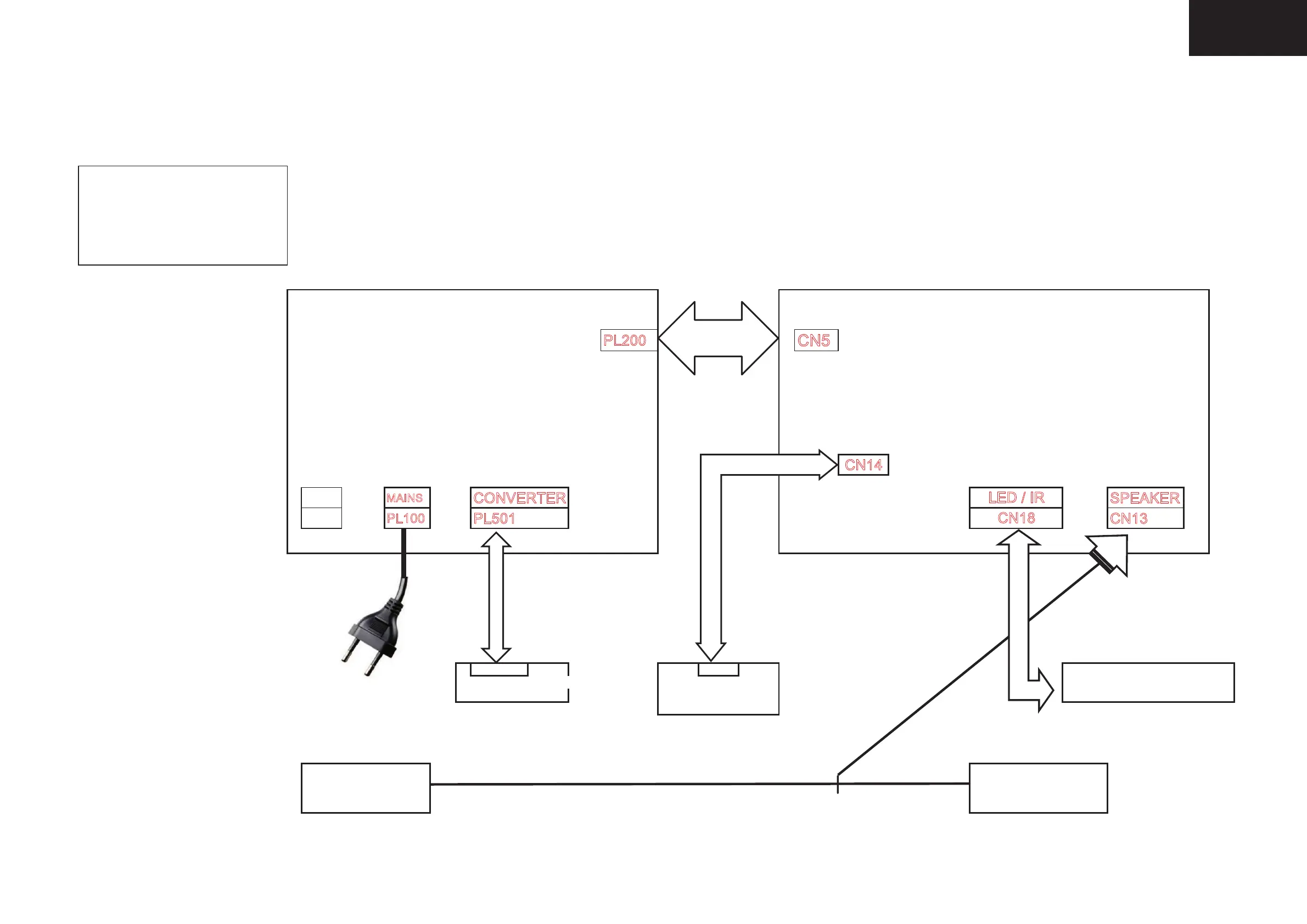

OVERALL WIRING DIAGRAM
14 . Overall wiring Diagram
MB82 & IPS19 WIRING DIAGRAM
MAINBOARD
: MB82-2
PSU : IPS19-5
PANEL : 32'' VES315WNDL-01
MODEL : LC-32LD145E
LC-32LD145V
LC-32LD145K
IPS19-5 17MB82-2
PL200
CN5
Part Code 23110312
CN14
SWITCH
MAINS
CONVERTER SPEAKER
PL101
PL100
PL501 CN13
CONN CONN
PANEL POWER SUPPLY LED / IR BOARD
PANEL T-CON BOARD
SPEAKER RIGHT SPEAKER LEFT
LED / IR
CN18
