Sharp LC-32S7E-BK Service Manual

LC-19S7E-BK LC-26S7E-BK LC-32S7E-BK
14

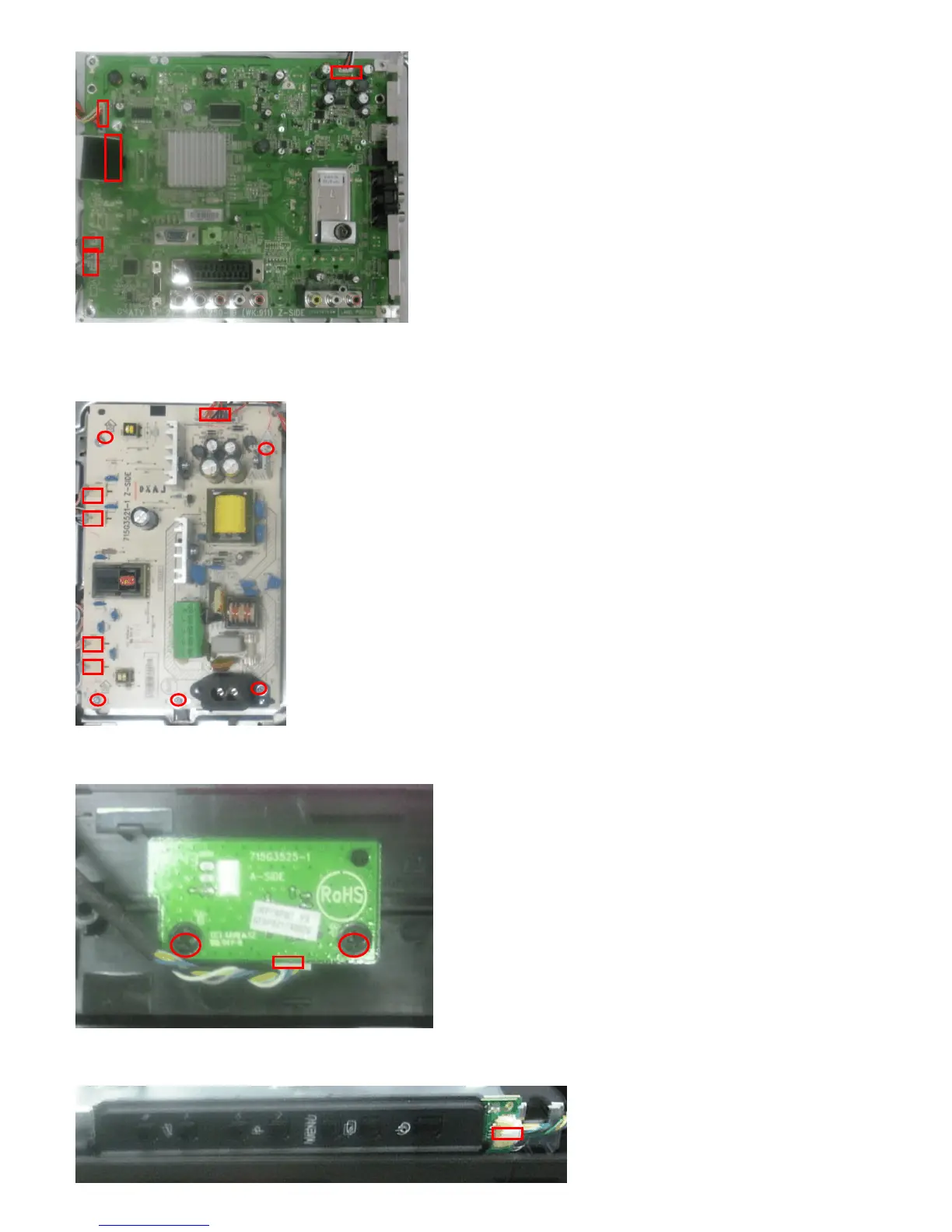

Fig.8
3. Remove the 5 screws and disconnect 5 cables. Detach the Power board as Fig.9.
Fig.9
4. Remove the 2 screws and disconnect 1 cable. Detach the IR board as Fig.10.
Fig.10
5. Disconnect 1 cable. Detach the Key board as Fig.11.

Sharp LC-32S7E-BK Specifications

General

Brand	Sharp
Model	LC-32S7E-BK
Category	LCD TV
Language	English
