LC-19S7E-BK LC-26S7E-BK LC-3
2S7E-BK
26

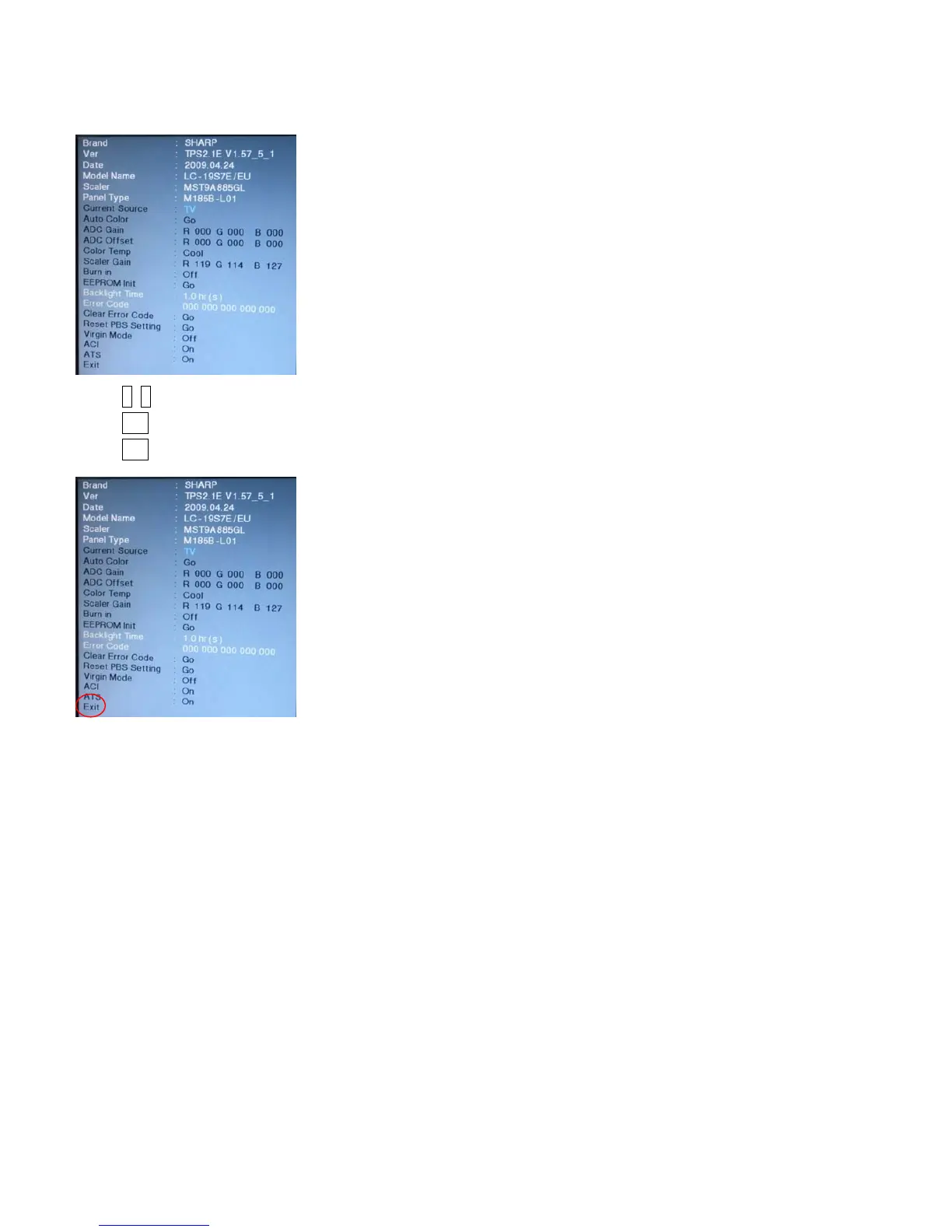

[2] SERVICE MODE
Enter factory mode menu: Press the key “1999” on remote co
ntrol.
Press
↑
,
↓
to choose the value
Press
OK
to fix the value.
Press
OK
to exit the factory mode when choose “exit” value,
25
27
