Sharp LC-39LE440U User Manual

70

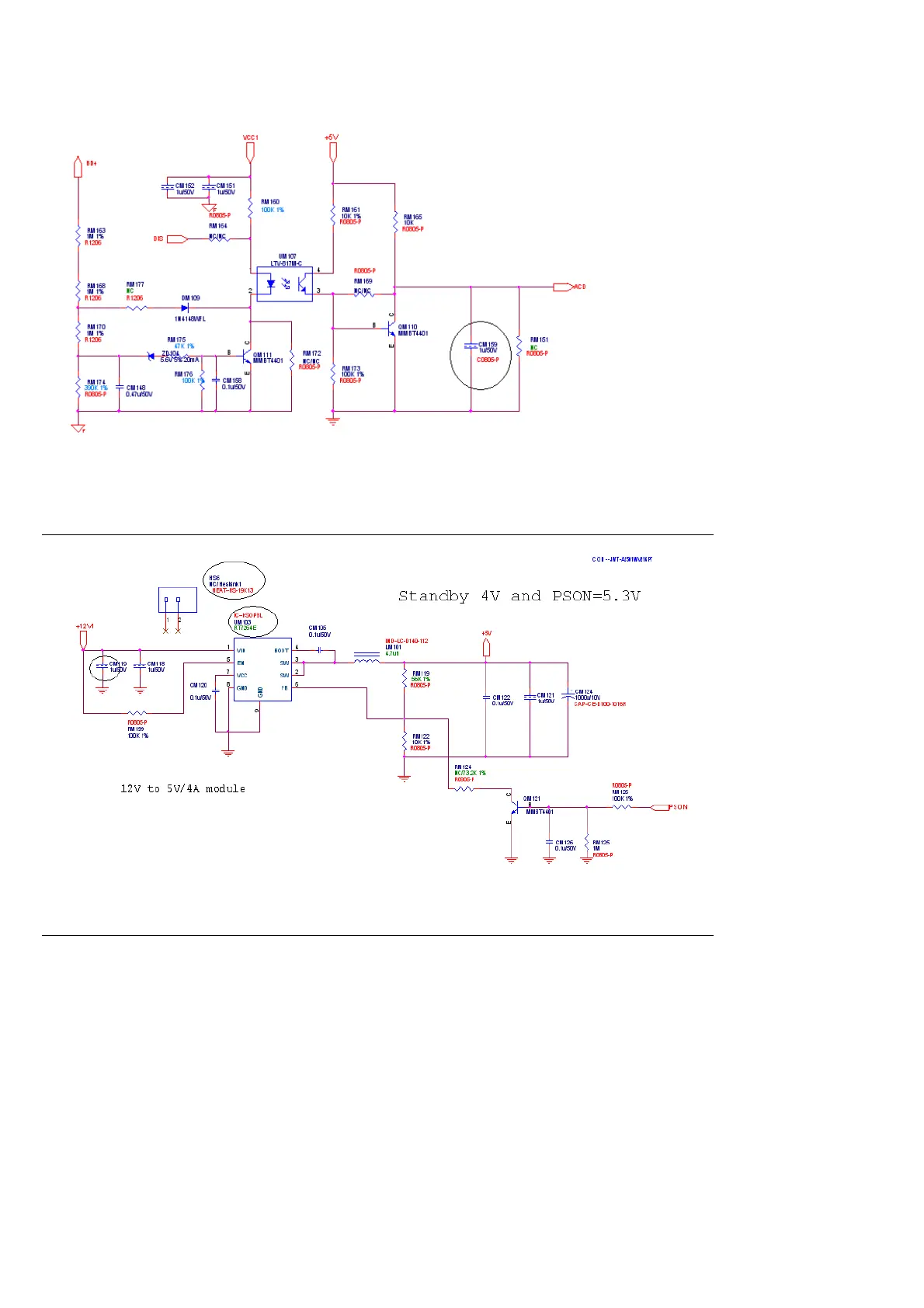

BD101 is a rectifier in which there are 4 build-in diodes, inverting AC to DC. CP110,CP111
is used to smooth the wave from rectifier. FR801 is a fuse resistor to protect the following circuit
when inrush current is too large.
UM102 is a current-mode PWM controller with excellent power-saving operation, It features a
high-voltage current source to directly supply the startup current from two half-wave rectifier diodes
further to provide lossless startup circuit. Max start-up current for UM102 is 10mA, When current
flow from two half-wave rectifier diodes through RM107 and RM111 gets to HV pin to start up
UM102, Meanwhile, the VCC supply current is as low as 550uA thus most of the HV current is
utilized to change the VCC capacitor CM123, When Vcc (Pin6) reaches UVLO(on) threshold ,The

Sharp LC-39LE440U Specifications

General

Display diagonal	39 \
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	Edge-Lit LED
Supported video modes	1080p
Contrast ratio (dynamic)	5000000:1
Viewing angle, horizontal	88 °
3D	No
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
DVI port	-
HDMI ports quantity	3
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Product color	Black
AC input voltage	120 V
Power consumption (standby)	1 W

Weight and Dimensions

Depth (with stand)	229.9 mm
Height (with stand)	611.6 mm
Weight (with stand)	18510 g
Depth (without stand)	44.96 mm
Width (without stand)	916.4 mm
Height (without stand)	577.8 mm
Weight (without stand)	16010 g
