Sharp LC-39LE440U

7
CHAPTER 2. Removing of Major Parts
LC-39LE440U

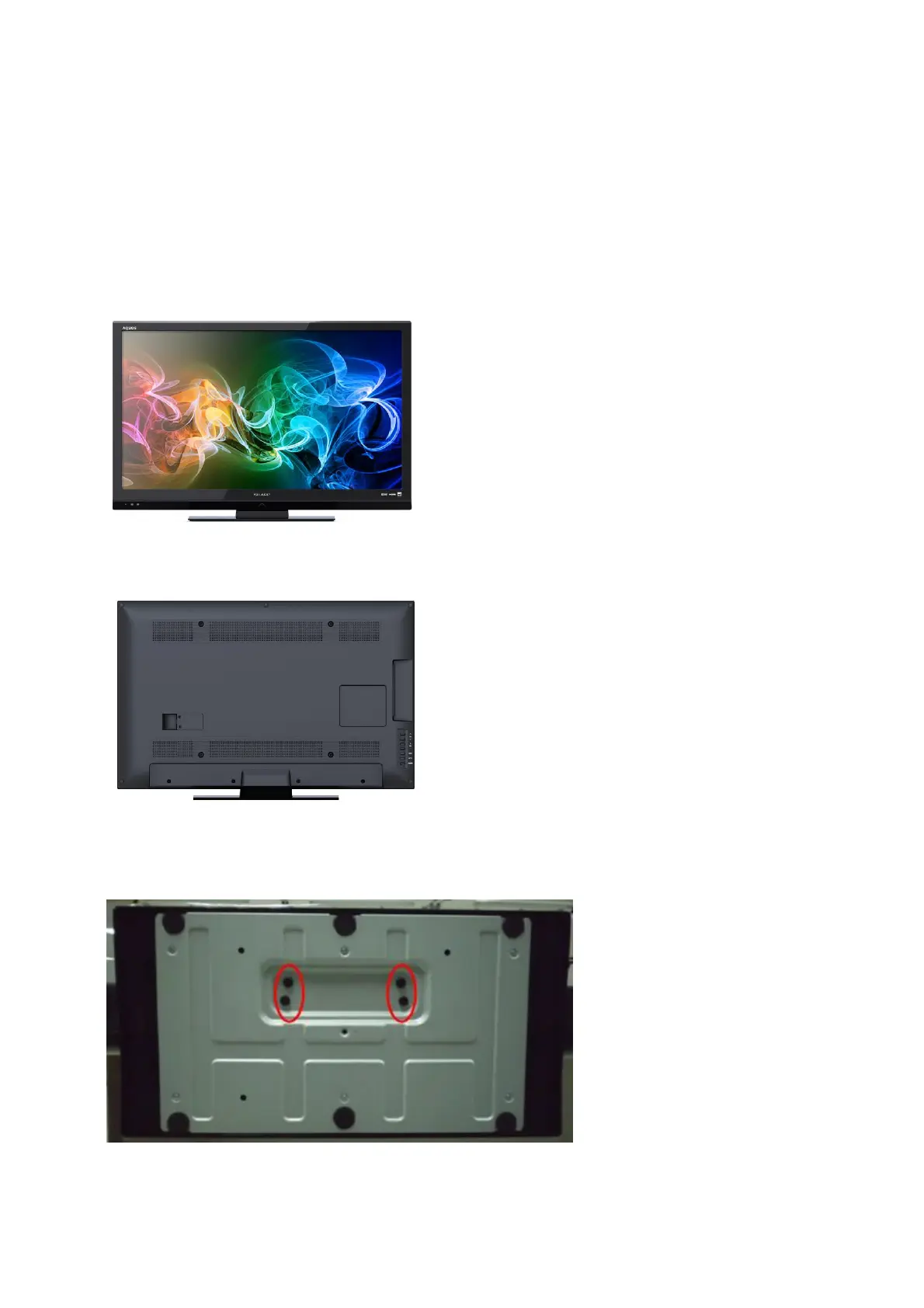

1. Assy/Panel Removal
Notes: Please put your machine on soft material to avoid scrape panel when you
disassemble it.
Front view
Fig.1
Back view
Fig.2
Step1. Remove the Base Assy.
Remove the 4 screws as Fig.3 and pull out the base .
Fig.3
