18

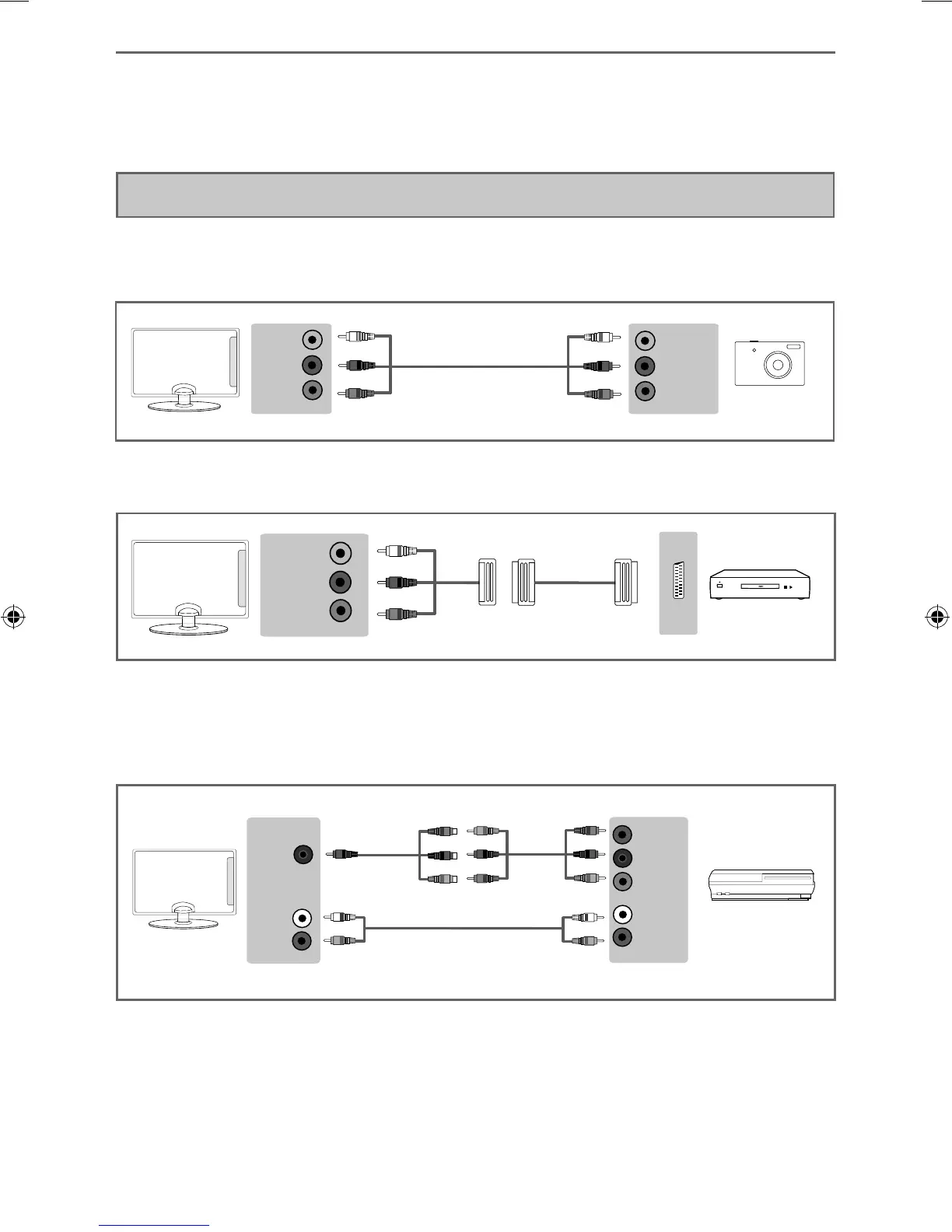

Connecting to a device with Composite AV/Video output
TV source should be set to Composite/AV
Connection options for the LC-32CFE6131K.
L (white)
R (red)
Video
(yellow)
L (white)
R (red)
Video
(yellow)
Connections
CONNECTIONS
Connecting to a device with SCART output (using SCART to AV cable)
TV source should be set to Composite/AV
Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is
Included In The Box’ page.
Scart
L (white)
R (red)
Video
(yellow)
Connecting to a device with Component/YPbPr output
If you are supplied with a cable from the device which has red, green, blue, red & white connectors you
must connect via Component (for picture) and by phono cable (for sound).
TV source should be set to Component/YPbPr
R (red)
L (white)
Mini
YPbPr
Y (green)
PB (blue)
PR (red)
R (red)
L (white)
User Guide - SHA-MAN-0005 - SmartTV - LC 32,40,43,49,50 inch models.indd Sec1:18User Guide - SHA-MAN-0005 - SmartTV - LC 32,40,43,49,50 inch models.indd Sec1:18 13/08/2015 10:06:3013/08/2015 10:06:30
