CONNECTIONS
A
C
D
E
F
GHI
B

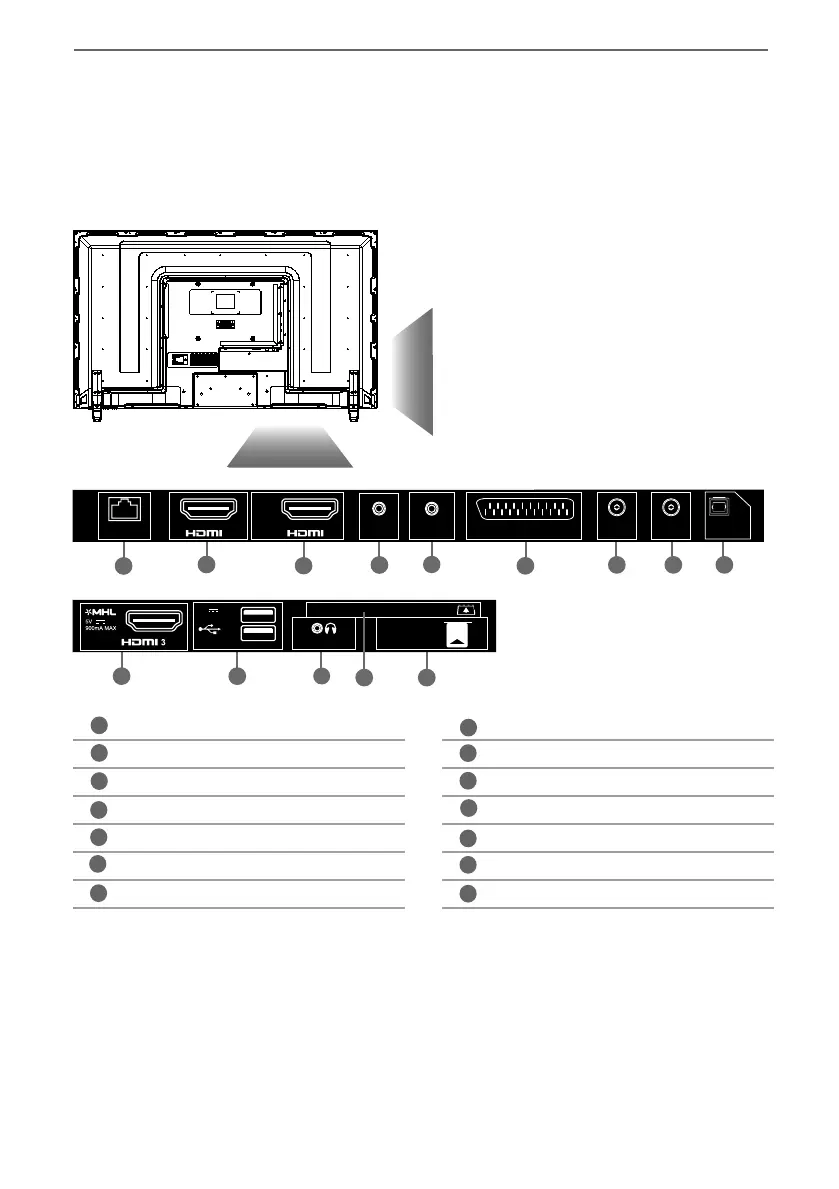

LAN* Network connection
HDMI 1 HDMI input
HDMI 2 HDMI input (ARC)
AV IN Audio/Video input
YPbPr HD input (YPbPr)
SCART SCART Input
RF in RF / TV aerial input
SAT IN** Satellite input
Optical Digital Audio Digital Optical Audio Output
HDMI 3 HDMI input***
USB x 2 USB port
Earphones Earphone input
CI card in Common interface module
SD Card IN SD Memory Card Input
A
I
L
M
N
B
J
C
D
E
F
G
H
K
RF IN SAT IN
OPTICAL
DIGITAL
AUDIO OUT
YPbPr IN
AV IN
ARC
ETHERNET
2
1
SCART
* The Ethernet/LAN port is used for Freeview HD services and smart functions.
**The Satellite input is for the LC-48CFG6002K, LC-49CFG6002K and LC-50CFG6002K models only.
*** HDMI 3 (MHL Port) - MHL is a wired solution that allows you to access the media from your phone or
tablet onto the big screen in the highest quality.
By connecting an MHL cable (sold separately) from your mobile device and into your TV you can playback all
your videos, games and photographs directly onto your TV.
MHL simply mirrors the screen of your mobile device so will work with all applications, whilst connected it
will also charge your device too.
Connections
Input/Outputs for the LC-48CFG6001K, LC-48CFG6002K,
LC-49CFG6001K, LC-49CFG6002K, LC-50CFG6001K and
LC-50CFG6002K models only.
J
K
L
USB (2.0)
5V
500mA MAX
CI CARD IN
EARPHONE
SD CARD IN
M
N
