Connections
CONNECTIONS

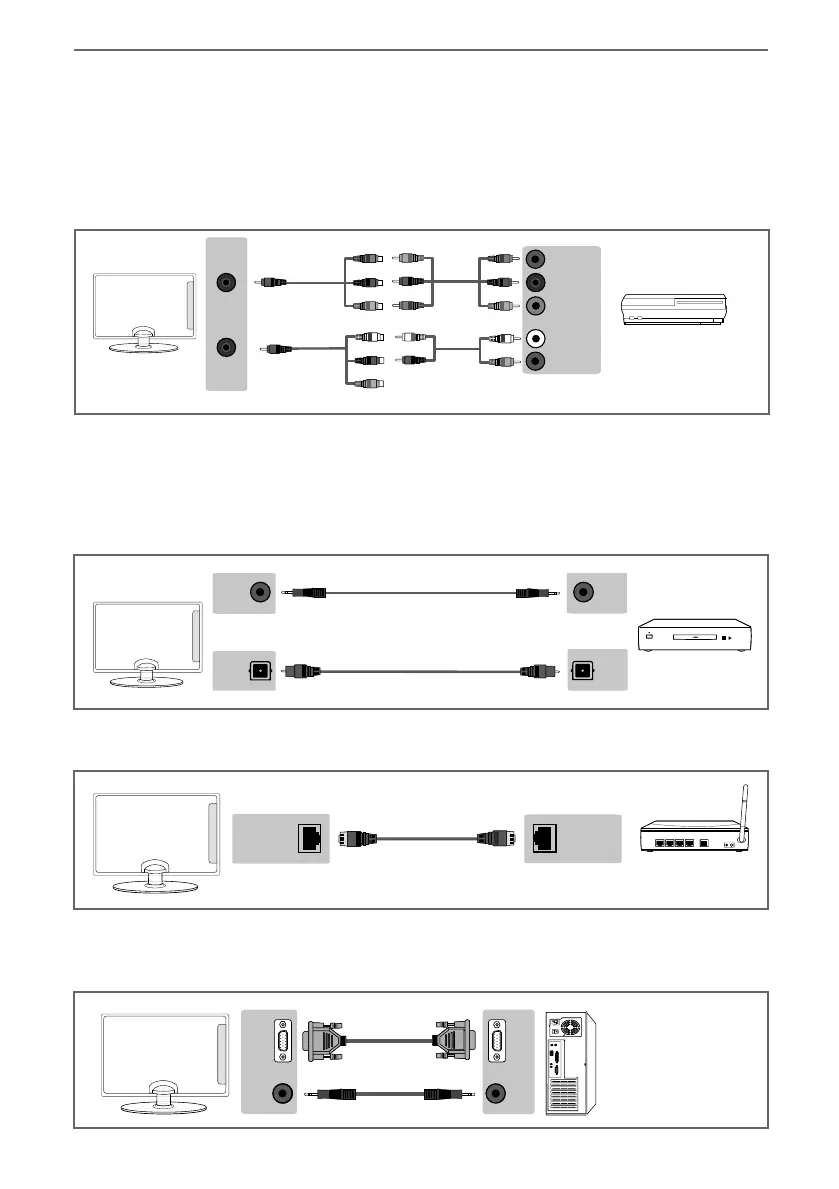

Connecting to a device with Component/YPbPr output
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors
you must connect via Component (for picture) and by phono cable (for sound).
TV Source should be set to Component/YPbPr.
Mini
AV in
Mini
YPbPr
Y (green)
PB (blue)
PR (red)
Video (yellow)
is not connected
R (red)
L (white)
Connecting to an external audio device (Amplifi ers, Surround Sound,
Sound Bars etc)
When connecting via the TV’s 3.5mm Earphone output, this will disable the TV speakers.
There are two options when connecting a device via the 3.5mm Earphone Output and the
Digital Optical Audio Output.
3.5mm
earphone
OPTION 1 for 3.5mm EARPHONE Output
OPTION 2 for Digital Optical Audio Output
Digital
audio
out
(optical)
3.5mm
audio
in
Digital
audio
in
(optical)
Connecting to a device with VGA/PC output (Laptop or Desktop Computer)*
TV Source should be set to VGA/PC.
*VGA/PC Connection for the LC-43CFG6001K and LC-43CFG6002K models only.
VGA/PC
in
VGA/PC
out
VGA/PC
(audio
in)
Audio
out
Connecting an Ethernet/Network cable
The Ethernet/LAN port is used for Freeview HD services and smart functions.
Ethernet
port
Ethernet
port
