LC-40E67U/LC-40E77U
18

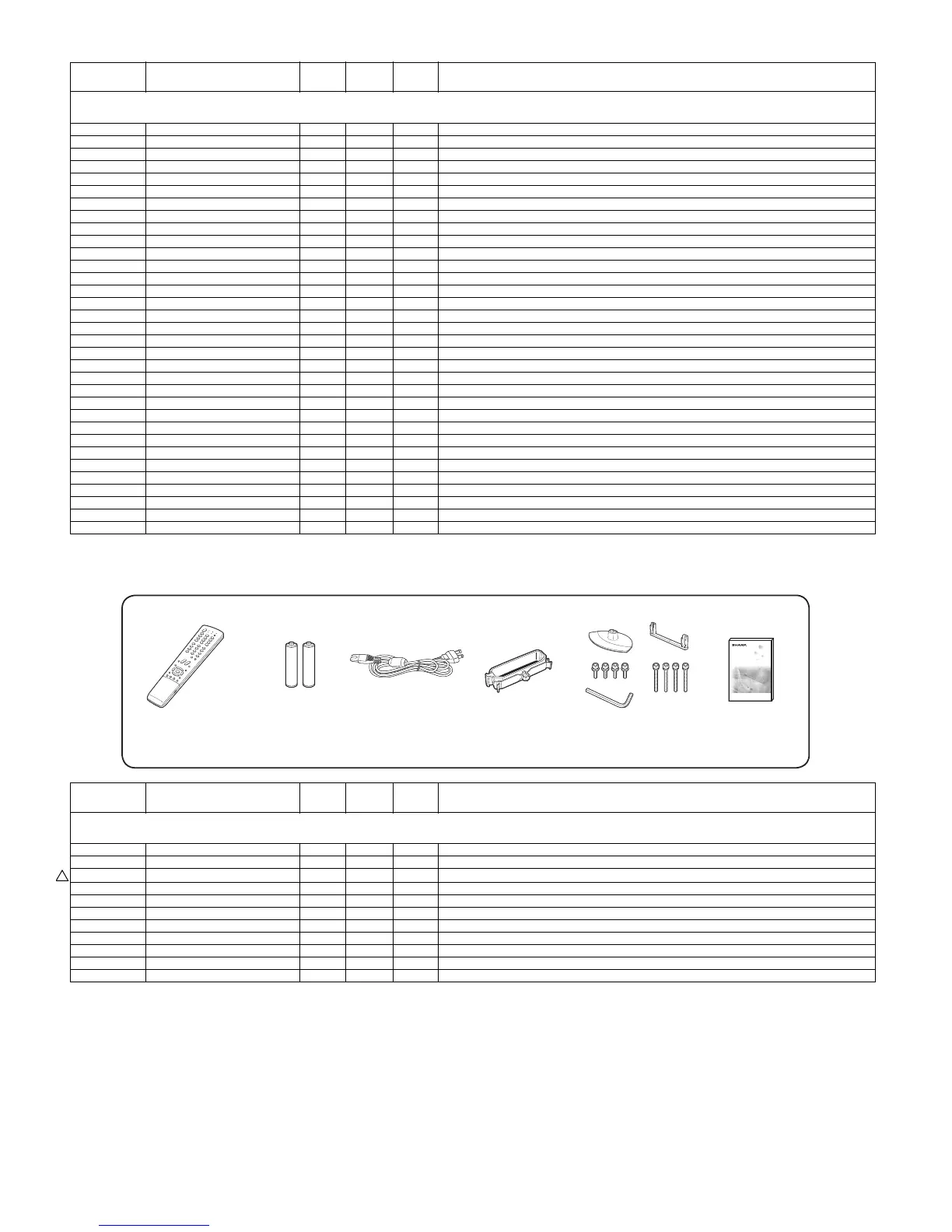

NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[8] SUPPLIED ACCESSORIES
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[7] LCD MODULE Assembly
1 R1LK400D3LW10Z DS X LCD Module Ass'y (LC-40E67U)
1 R1LK400D3LW20Z DW X LCD Module Ass'y (LC-40E77U)
2 CANGK4391TP02 AM J Bezel Ass'y Top
3 CANGK4390TP02 AM J Bezel Ass'y Bottom
4 CANGK4392TP02 AL J Bezel Ass'y L/R, x2
5 CHLDZ4143TP03 J P Chassis Ass'y Top
6 CHLDZB438WJ02 J P Chassis Ass'y Bottom
7 CHLDZ4144TP03 J P Chassis Ass'y L/R, x2
8 PSHEPA940WJZZ BP J DBEF
9 PSHEPA941WJZZ BB J Lens Sheet (Length)
10 PSHEPA942WJZZ BB J Lens Sheet (Side)
11 PCOVUA166WJZZ AY J Diffusion Plate
12 LHLDZ4153TPZZ AL J Lamp Holder-L
13 LHLDZ4148TPZZ AL J Lamp Holder-R
14 RLMPLA051WJZZ AP J Lamp, x14
15 QSOCFA005WJZZ AD J Socket, x14
16 RUNTKA570WJZZ AN J GND PWB Top
17 RUNTKA569WJZZ AN J GND PWB Bottom
18 LHLDZ4146TPZZ J Lamp Clip A, x2
19 LHLDZ4147TPZZ J Lamp Clip B, x6
20 LHLDZ4149TPZZ J Lamp Clip C, x4
21 PMIR-A242WJZZ J Lens Sheet
22 CCHSMA565WJ01 BK J BL Chassis Ass'y
23 PCOVWA051WJKZ J SJ Cover
24 RUNTKA568WJN1 J INVERTER Unit
24 RUNTK4106TPZC J C-PWB (LC-40E67U)
25 RUNTK4159TPZZ J C-PWB (LC-40E77U)
26 QCNW-J071WJQZ AF J FFC, x2
27 LX-HZA046WJF7 AB J Screw, x4(GND PWB)
28 XHPS830P06WS0 AA J Screw, x7(Inverter,x4/SJ Cover,x3)
29 LX-HZA045WJF7 AB J Screw, x6(C-PWB)
30 LX-HZA039WJF7 AB J Screw, x12(Bezel-BL Chassis(Front))
31 LX-HZA053WJF7 J Screw, x4(Bezel-BL Chassis(Side))
[8] SUPPLIED ACCESSORIES
X1 RRMCGA759WJSA AX X Remote Control Unit
X2 Not Available - - Battery
!
X3 QACCDA066WJPZ AP X AC Cord
X4 LHLDWA173WJKZ AE J Cable Clamp
X5 CDAI-A552WJ06 BP N X Stand Unit (LC-40E67U)
X5 CDAI-A552WJ02 BQ X Stand Unit (LC-40E77U)
X6 TINS-E150WJZZ AN N X Operation Manual (LC-40E67U)
X6 TINS-E149WJZZ AN N X Operation Manual (LC-40E77U)
X7 TCADEA243WJZZ AD X Enquete Card
X8 TCAUZA342WJN1 AC X Transition Note
X9 TGAN-A845WJN1 AD X Extendwaranty
Remote control unit
(x 1)
“AAA” size battery
(x 2)
AC cord
(x 1)
Stand unit
(x 1)
Cable clamp
(x 1)
Operation manual
(x 1)
X1 X2 X3 X4 X5 X6
